6

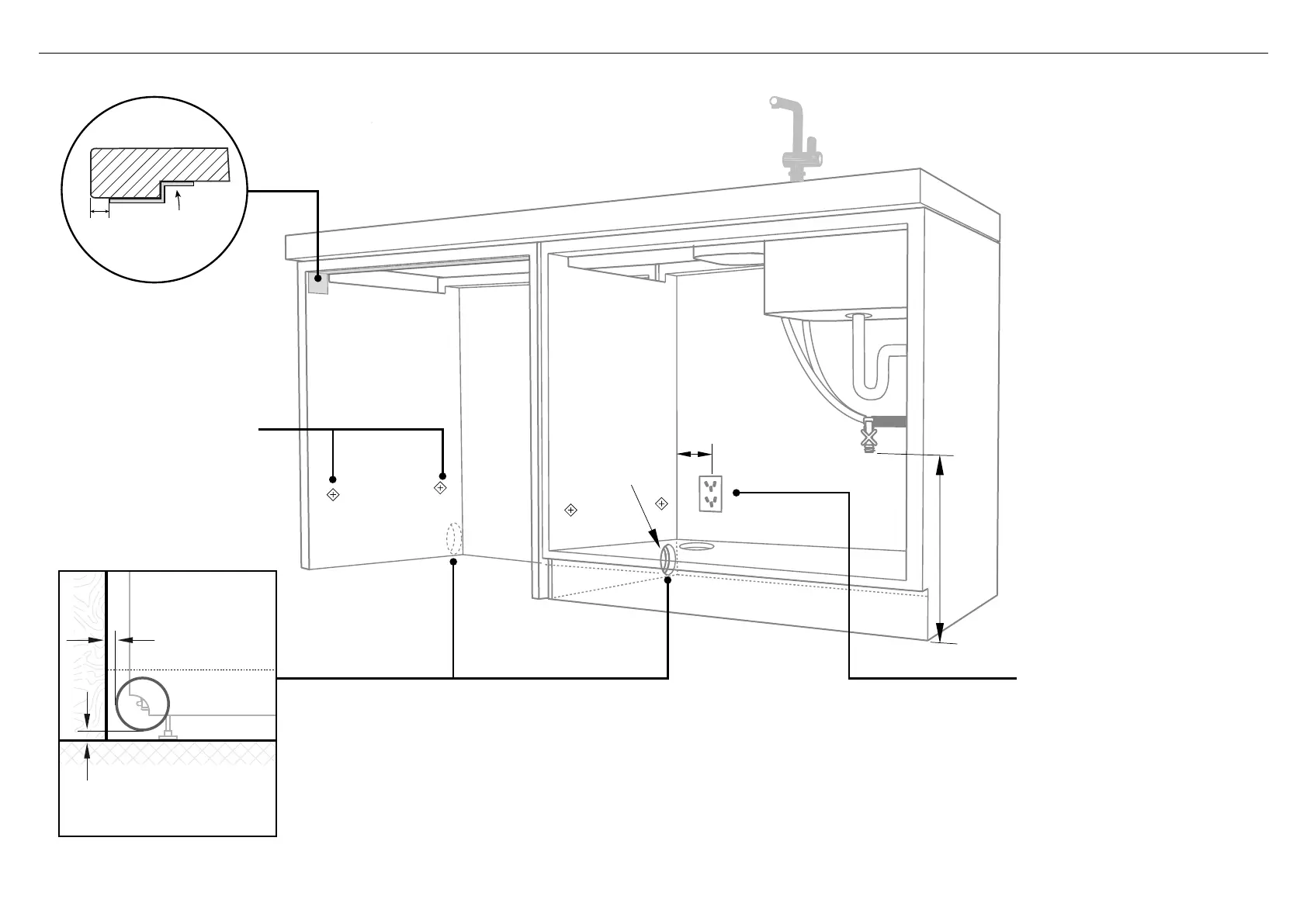

Service Holes
Can be located either side of dishwasher, close to the rear face and
the floor, as illustrated, for access to the water supply and drain.
O
If the hole is through wood, make sure its edges are smooth
androunded.
O
If the hole is through metal, ensure you fit the supplied Edge
Protector to prevent damage to the power cord.
These marks indicate formed
bracket screw locations, if
securing by drawer removal.
If there is no side partition, you
can construct timber bracing
as something to secure into.
Moisture
protection tape
must be applied
10 mm
COUNTERTOP
WARNING!
Incorrect placement of the hole
will result in damage to hoses.
Ø 57mm
Max 10mm
Max distance between
hole edge and floor
Max 5mm
Max distance
between hole edge
and rear inner face
max. 450mm
min. 200mm
5 CAVITY PREPARATION
Water Connection
Recommended COLD
(Maximum 60°C).
3/4“ BSP (GB20) to
suit flat washer.
Kosher requirements
Drains will need to be
separated to satisfy kosher
requirements. We suggest
you confirm acceptability with
your local rabbi in respect to
kosherinstallations.
Water Pressure
Water softener models
Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)
Models without water softener
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
IMPORTANT!
The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.
220-240 VAC min. 9.5 A
