Fisher & Paykel DW60DOX Series User Manual

6
min.
650 mm
40 mm
min.
120
mm
min.
650 mm
40 mm
min.
120
mm
Ø21mm
min. Ø18mm
*
*
Standpipe Ø40 mm
500 mm MIN above  oor
*
note:
Connection of drain hose
direct to the waste disposal
unit is NOT recommended.
Hose supplied
Switched power outlet
Waste
Water
200 mm MIN
Ø21mm
min. Ø18mm
Vent
Ensure drain hose is supported to
height of bench
Waste disposal
unit
Switched power outlet
Hose supplied
200 mm MIN
Water
Waste
*
Switched power outlet
Hose supplied
Standpipe Ø40 mm
500 mm MIN above  oor
*
*
Waste
Waste
200 mm MIN
Water
Waste

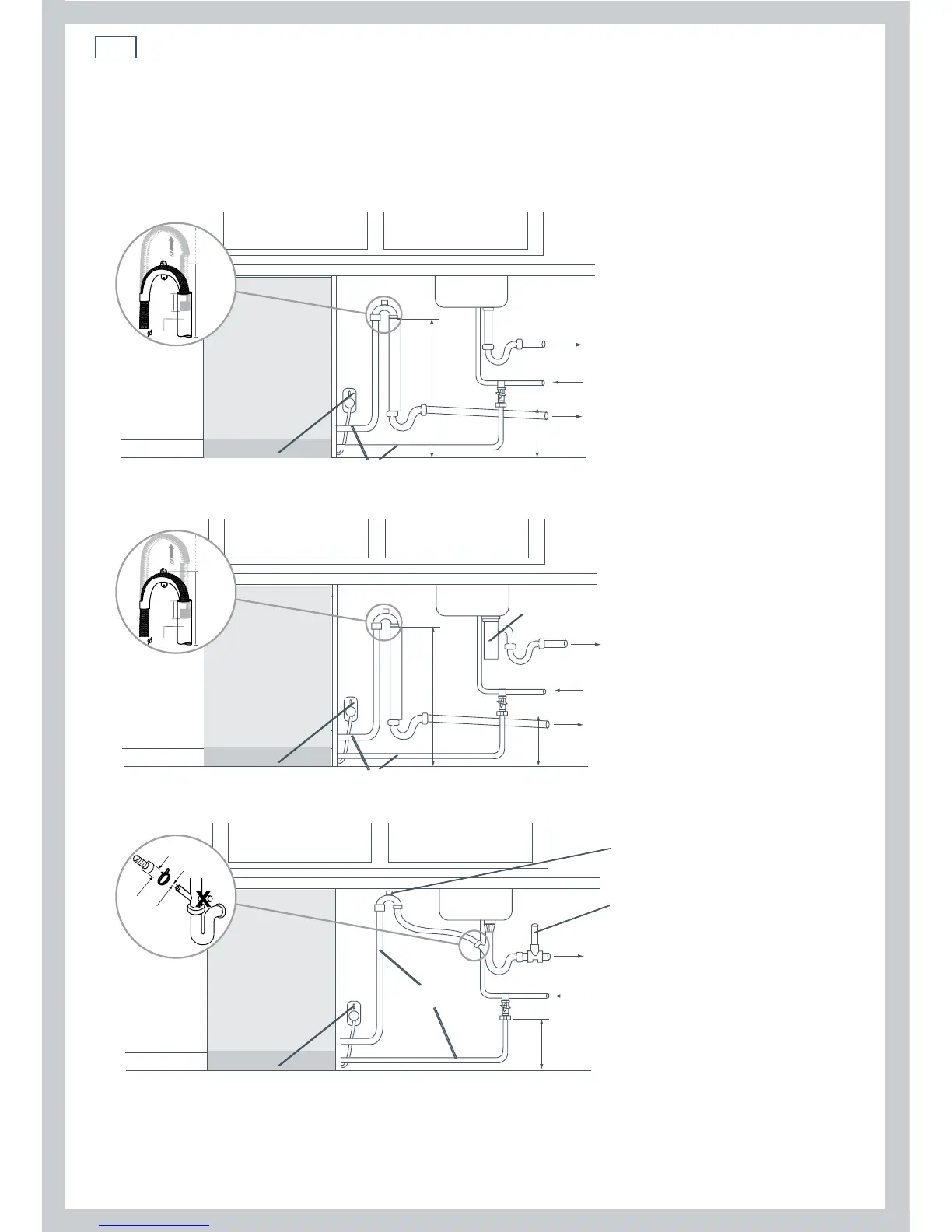

Installation instructions
Option 1: Dishwasher
Option 2: Dishwasher & waste disposal unit
Option 3: Dishwasher using sink trap with dishwasher drain hose spigot
Connecting water inlet hose and drain hose
