Installation instructions
2.5 mm
16-20 mm
L
Product and cabinetry dimensions (mm)
OB60DDEX2
A overall height* of product 1077
B overall width of product 595
C overall depth of product (excluding handle and knobs) 567
D height of chassis 1057
E width of chassis 556
F depth of chassis 545
G
depth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs)
22
H depth of upper oven door when fully open (measured from front of control panel) 435
H
I
depth of lower oven door when fully open (measured from front of control panel) 450
I minimum inside width of cavity 560
I
I
overall width of cavity 600
J inside height of cavity 1065
J
I
overall height of cavity 1082
K minimum inside depth of cavity 550
L flush fitting cabinetry clearance 22
*All height measurements include mounted feet.
A
C
E
D
F
G
H
H
I
J
K
L
I
I
I
J
I
B
OB60DDEX2

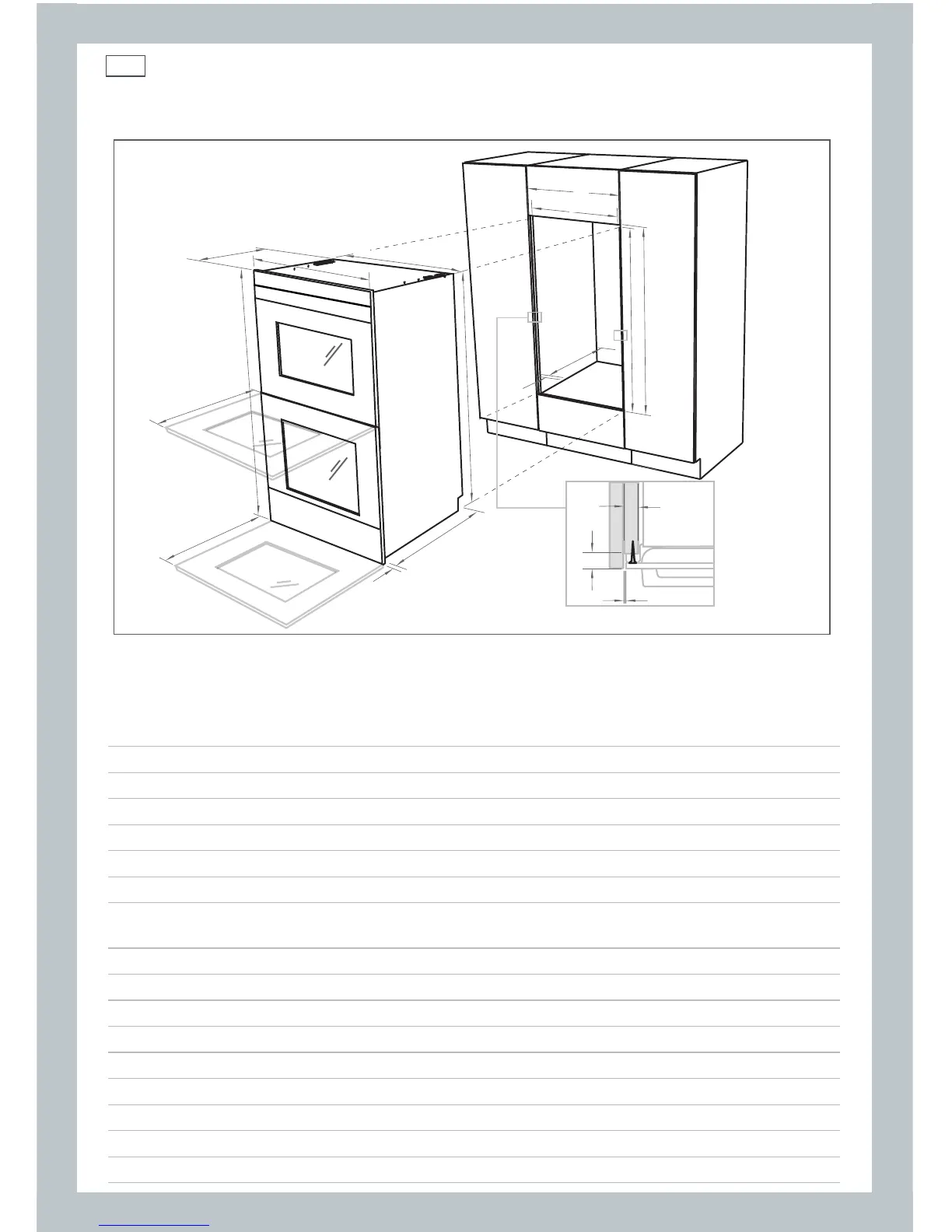

Fig. 1 OB60DDEX2 product and cabinetry dimensions
