GAS BURNERS (Dual)
The Dual Burner is a very fl exible burner which allows different regulations for optimal
cooking.
It is composed by one inner and one outer crown; the fl ame of the inner crown can be
regulated separately from the fl ames of the outer crown.
The Dual Burner can be used:
• As a high-power burner (all fl ames produced simultaneously by inner and outer
crown) which can be adjusted from the maximum ( ) to the minimum ( )
position.
Intermediate operating adjustments can be achieved by positioning the indicator
between the maximum and minimum dial settings. Never operate the burner with the
dial set between the
and OFF positions.
• As a small burner (fl ame produced only by the inner crown) which can be adjusted
from the maximum (
) to the minimum ( ) position.

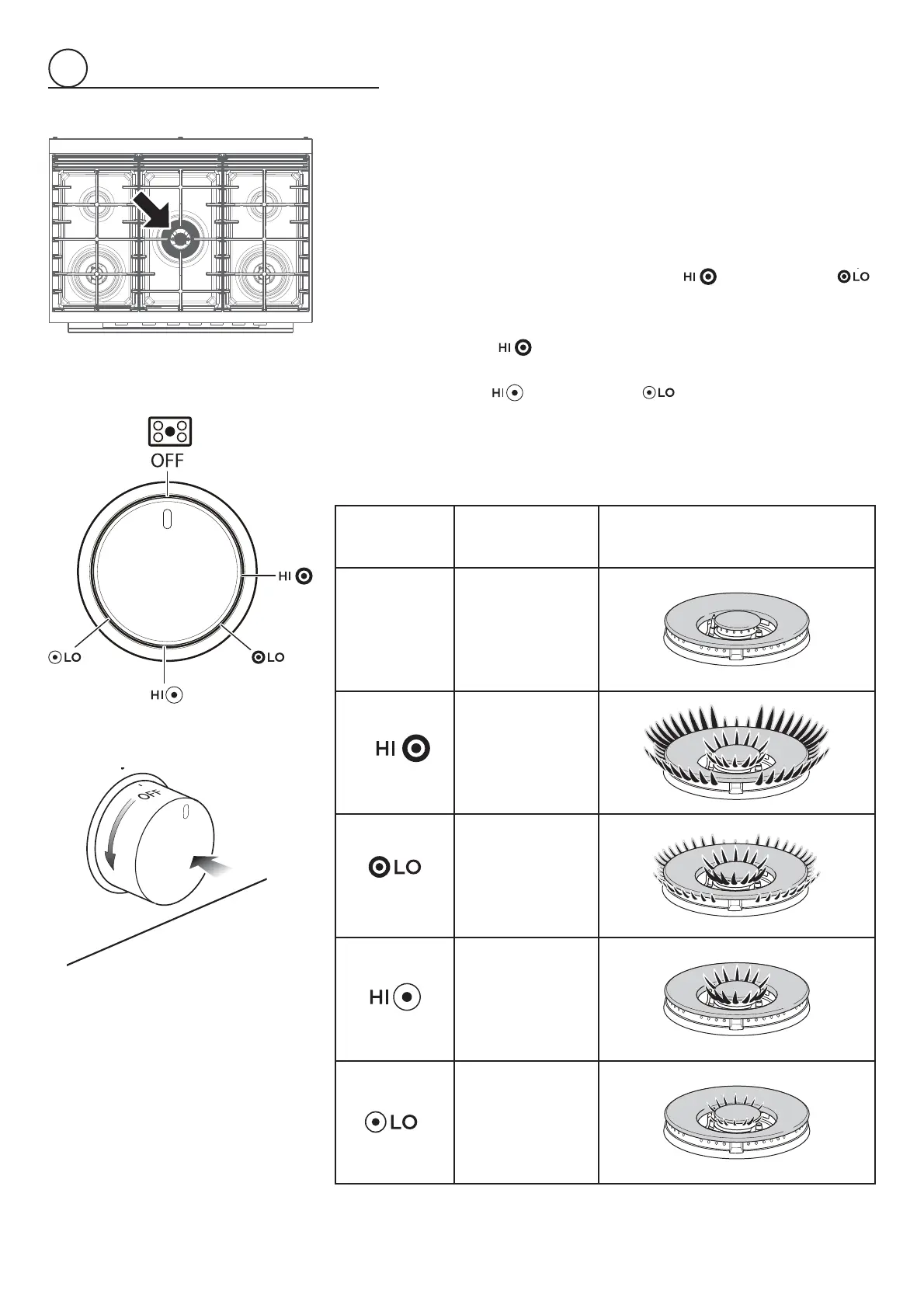

Gas fl ow to the burners is adjusted by turning the dials (illustrated in fi g. 2.3) which con-
trol the valves.
Turning the dial so that the symbols printed on the dial point to the mark on the bezel
achieves the following functions:
Dial
position
Function DUAL burners
closed
valve
Maximum rate of
inner + outer crown
(inside and outside
fl ames in
simultaneously
at the maximum)
Minimum rate of
outer crown and
maximum rate of
inner crown
Maximum rate
of inner crown
(only inner fl ame
at the maximum)
Minimum rate
of inner crown
(only inner fl ame
at the minimum)
Fig. 2.3
Fig. 2.4
OFF
