32
32
6
Fig. 6.2Fig. 6.1
T
S
B
A
A
B
S
T
Fig. 6.6
Fig. 6.3
Fig. 6.4
Fig. 6.5
T
T
S
S
B
A
TRIPLE-RING BURNER
DUAL BURNER

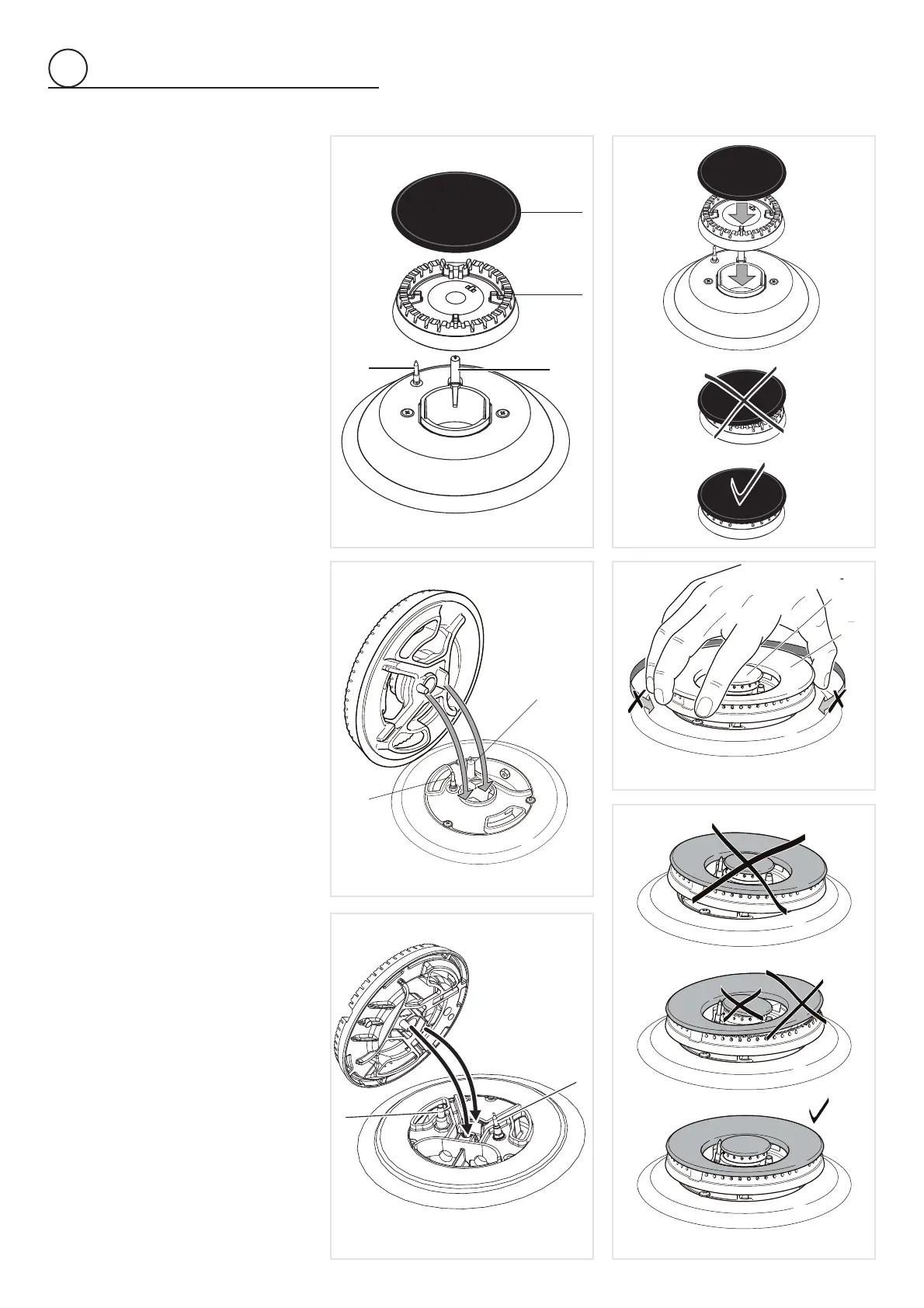

CORRECT POSITION OF THE
SEMI-RAPID BURNERS
It is very important to check that the burner
ame spreader “B” and the cap “A” have
been correctly positioned (see gs. 6.1 and
6.2 ). Failure to do so can cause serious
problems.
CORRECT POSITION OF THE
TRIPLE-RING AND DUAL
BURNER
The burner must be correctly positioned;
failure to do so can cause serious pro-
blems.
Fit the ame spreader to the housing as
shown by the arrows (see gs. 6.3, 6.4).
The burner correctly positioned must not
rotate ( g. 6.5).
Then position the cap “A” and the ring “B
( gs. 6.5, 6.6).
