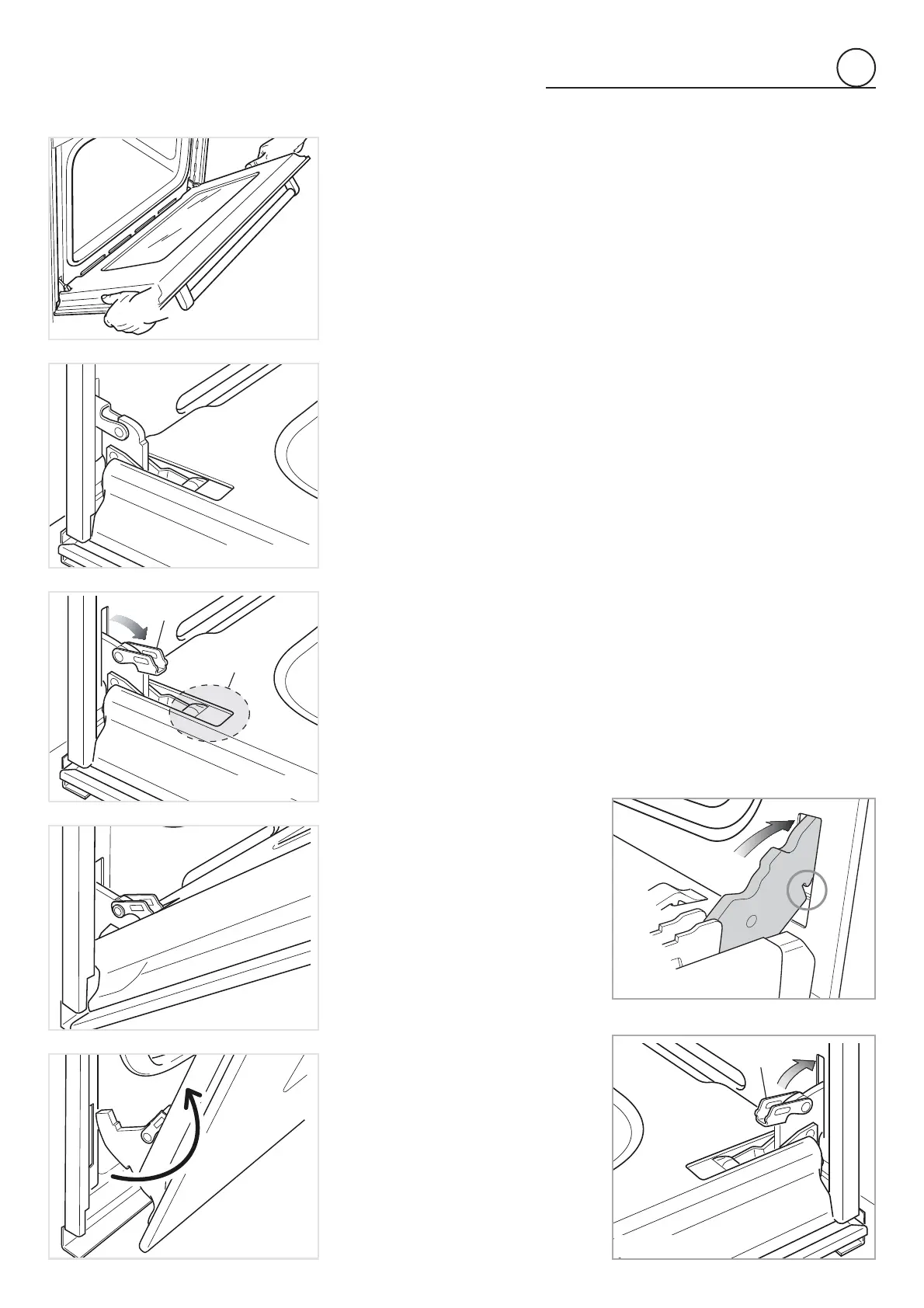

REMOVING THE OVEN DOOR
The oven door can easily be removed as follows:
• Open the door to the full extent (fi g. 6.15a).
• Open the lever “A” completely on the left and right hinges (fi g. 6.15b).
• Hold the door as shown in fi g. 6.15.
• Gently close the door (fi g. 6.15c) until left and right hinge levers “A” are hooked
to part “B” of the door (fi g. 6.15b)
• Withdraw the hinge hooks from their location following arrow “C” (fi g. 6.15d).
• Rest the door on a soft surface.
REFITTING THE OVEN DOOR
• Hold the door fi rmly (fi g. 6.15).
• Insert the hinge tongues into the slots, making sure that the groove drops into
place as shown in the fi g. 6.16a.
• Open the door to its full extent.
• Fully close the levers “A” on the left and right hinges, as shown in the fi gure fi g.
6.16b.
• Close the door and check that it is properly in place.
B
A
C
Fig. 6.15a
Fig. 6.15d
Fig. 6.15c
Fig. 6.15b
Fig. 6.15
A
Fig. 6.16a
Fig. 6.16b
