517793A
13
7 REMOVAL OF DISPLAY MODULE
Note: Prior to carrying out any service procedures ensure that the power to the machine is
switched off.
7.1 Components In Console Area
(a) Remove the lid.
(b) Remove the two screws at the rear of the console securing the console to the top deck.
(c) Tilt the console forward.

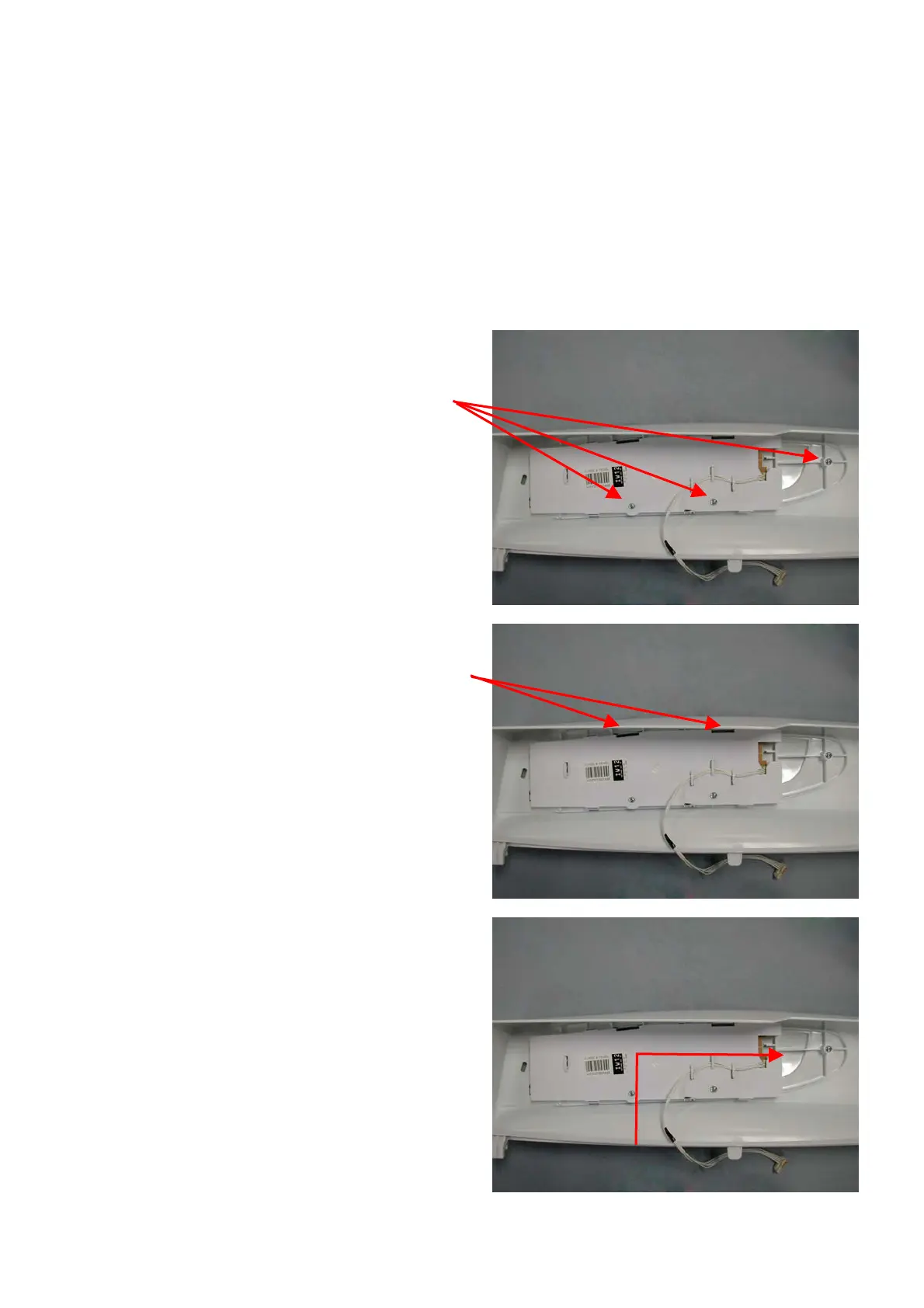

7.2 Removal Of Display Module
(a) Disconnect the wiring harness from the
display module.
(b) Remove the 3 screws securing the display
module to the console
(c) Using a flat bladed screwdriver, push the
two top tabs that secure the display
module to the facia.
(d) When these tabs are clear, lift the right
hand end of the module and slide in the
direction shown.
Slide after clearin
to
tabs
