Installation instructions
Connecting to the drain
The water drain hose should be placed either at the side of a basin or tub, or connected directly
to the wastewater standpipe.
The elbow/guide, supplied with the machine, should be fitted to the drain hose before being
connected directly into the tub or wastewater standpipe.
The drain hose should not be sharply bent.
The drain hose needs to be kept at an elevated height of at least 400 mm with a maximum
height of 1 m. If the hose is placed at the floor level, or close to the floor (less than 400 mm
above the ground), water discharge becomes more difficult and the laundry may come out wet.
max. 100 cm
min.
40 cm

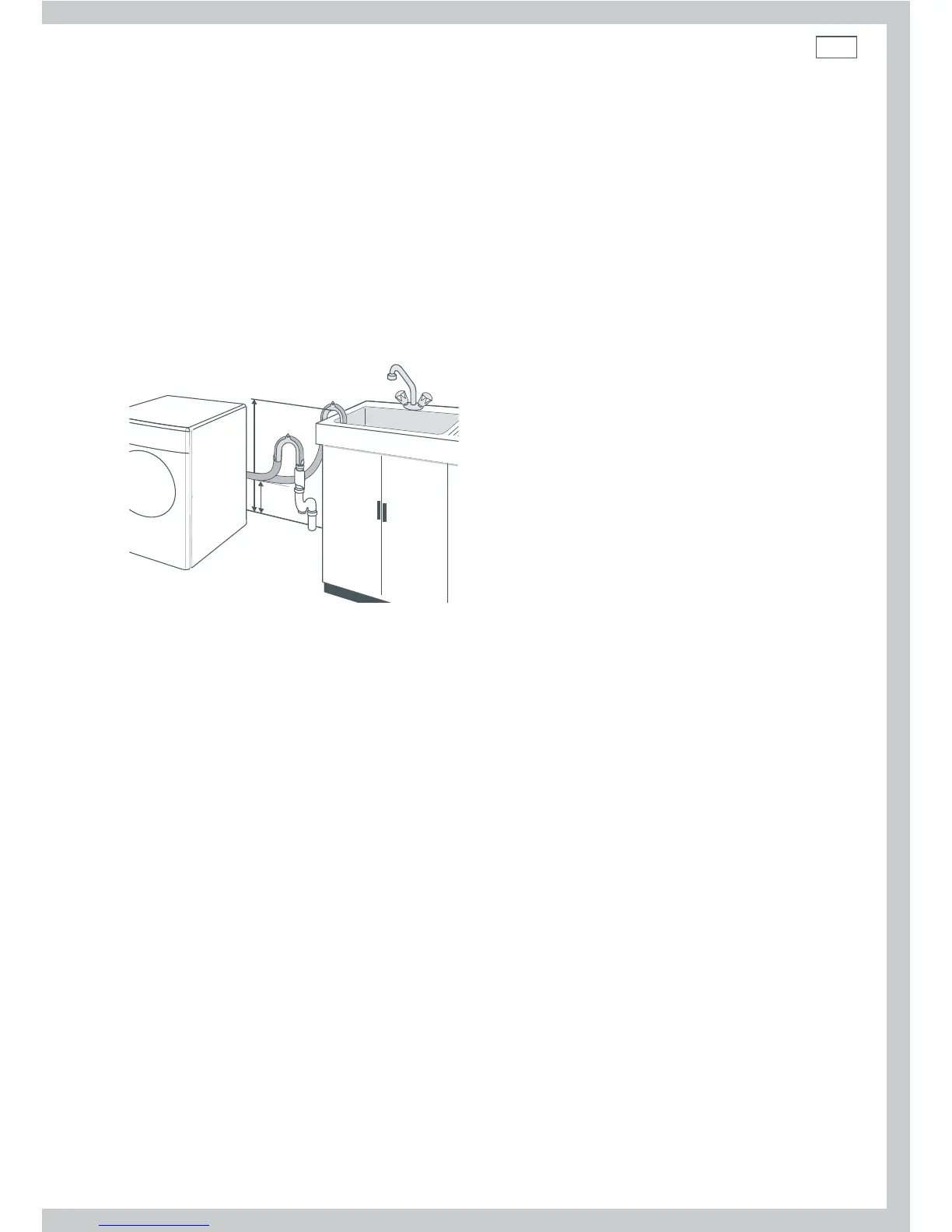

Fig.4 Drain hose set up
The drain hose should extend a maximum of 20 mm past the end of the elbow/guide.
The drain hose can be trimmed to length.
The maximum length of an extended drain hose is 3.2 m.
Electrical connection
Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
Connection should comply with national regulations.
The voltage and the allowed fuse protection are stated in the ‘Specifications’ section.
Important!
If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.
A damaged power cable must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. The appliance must not be operated until it is
repaired, as there is risk of electric shock.
Do not operate this machine if it has been damaged in during transport. Contact your
Fisher & Paykel Dealer or Fisher & Paykel Authorised Repairer.
