Fisher 1061 - Page 6

Instruction Manual
D100325X012
1061 H & J Actuator
January 2016
6

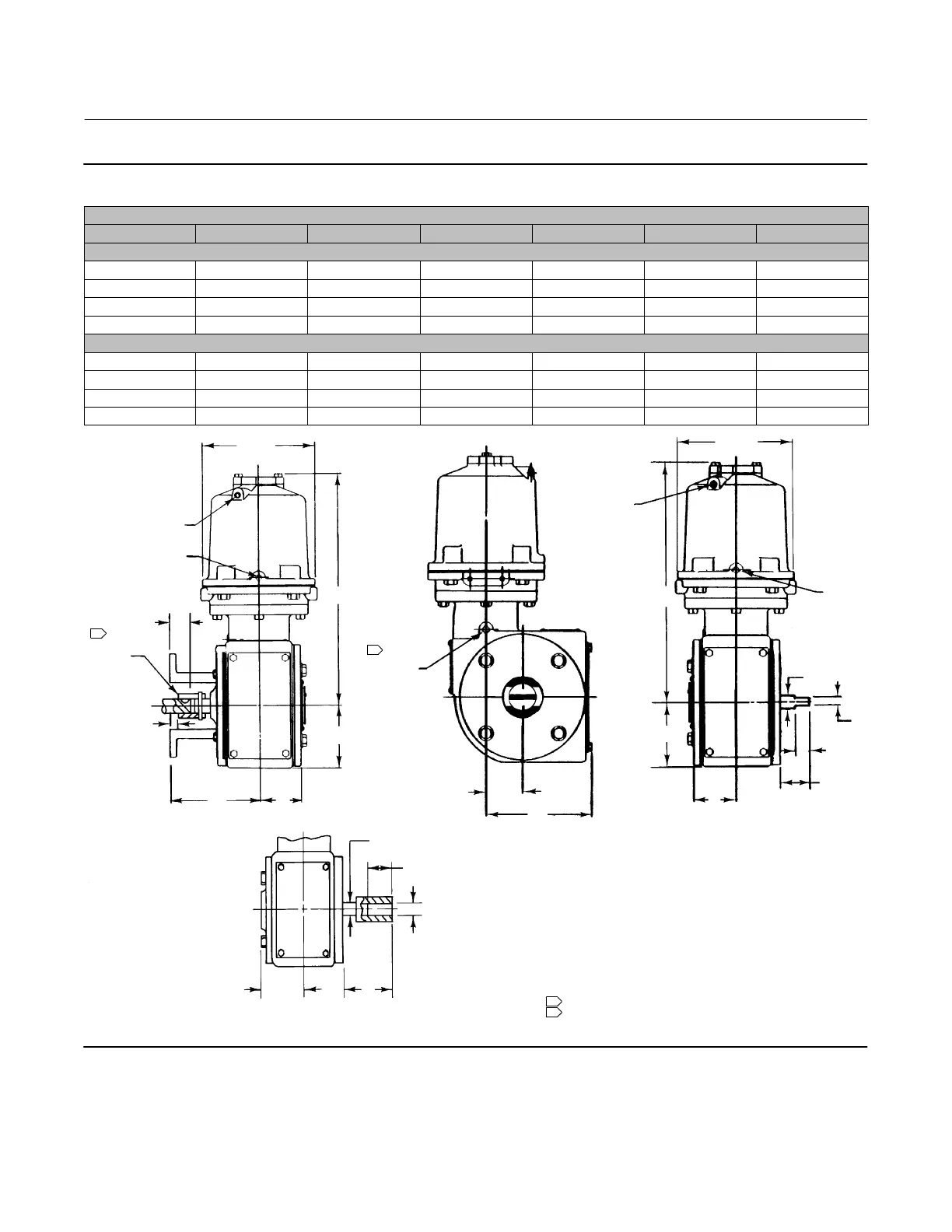

Figure 2. Fisher 1061 Mounting Dimensions
H OR J MOUNTING
ACTUATOR SIZE C E F H P Y
mm
30 171 378 54 114 175 73
40 206 425 64 121 186 73
60 267 406 64 121 186 76
68 324 483 64 121 186 76
Inches
30 6.75 14.88 2.12 4.50 6.88 2.88
40 8.12 16.75 2.50 4.75 7.31 2.88
60 10.50 16.00 2.50 4.75 7.31 3.00
68 12.75 19.00 2.50 4.75 7.31 3.00
B1855‐1
NOTES:
SEE PARTS LIST FOR WOODRUFF KEY NUMBERS.
VENT ON ALUMINUM CONSTRUCTION ONLY.
1
2
H MOUNTING FOR 44.5 OR 50.8 mm (1‐3/4 OR 2‐INCH)
KEYED EQUIPMENT SHAFTS
WITH J MOUNTING ADAPTATION
WITH H MOUNTING ADAPTATION
WOODRUFF
KEY
1
2
1/4‐18 NPT
VENT
C (DIA)
C (DIA)
1/4‐18 NPT
1/4‐18 NPT
1/4‐18 NPT
1/4‐18
NPT
L
E
H
YV
K
F
P
E
H
Y
V
L
K
S DIA
S DIA
K DIA
L
YV
19A1468-C
19A1462-C
19A1462-C
19A1462-C
