Fisher 1061 - Page 7

Instruction Manual
D100325X012
1061 H & J Actuator
January 2016
7

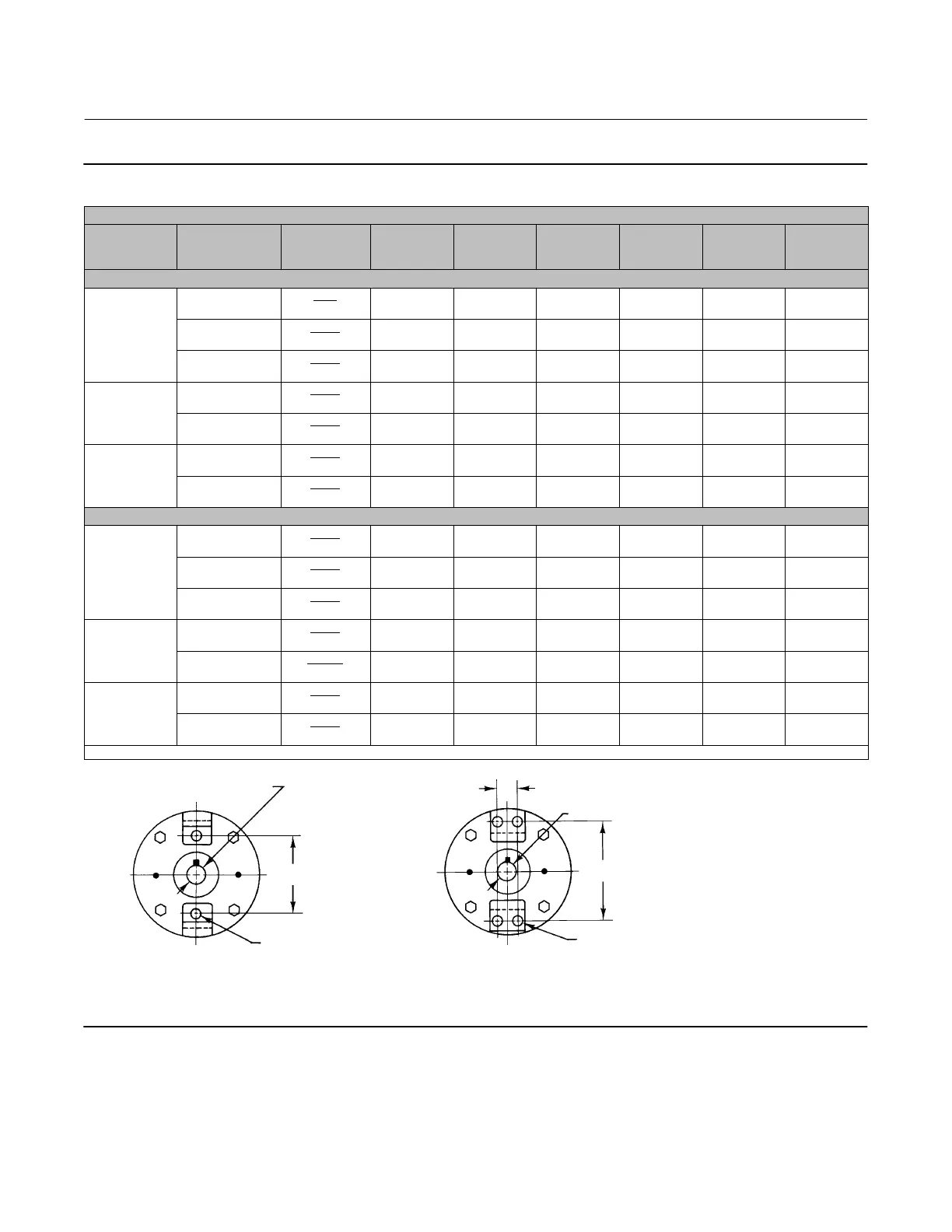

Figure 2. Fisher 1061 Mounting Dimensions (Continued)
J MOUNTING
(1)
Actuator Size
S (Valve Shaft
Diameter)
Coupling
Inner
Diameter
V L K T U W
mm
30
9.5
9.53
9.58
136.7 33.3 15.7 117.3 ‐ ‐ ‐ 11.2
12.7
12.70
12.75
136.7 33.3 15.7 117.3 ‐ ‐ ‐ 11.2
15.9
15.90
15.95
160.3 42.9 25.4 146.1 31.8 11.2
30, 40, 60,
& 68
19.1
19.05
19.10
160.3 42.9 20.6 146.1 31.8 11.2
25.4
25.43
25.48
160.3 42.9 17.5 146.1 31.8 11.2
40, 60, & 68
31.8
31.75
31.80
147.6 63.5 30.2 209.6 50.8 17.5
38.1
38.13
38.18
147.6 63.5 23.9 209.6 50.8 17.5
Inches
30
3/8
0.375
0.377
5.38 1.31 0.62 4.62 ‐ ‐ ‐ 0.44
1/2
0.500
0.502
5.38 1.31 0.62 4.62 ‐ ‐ ‐ 0.44
5/8
0.626
0.628
6.31 1.69 1.00 5.75 1.25 0.44
30, 40, 60,
& 68
3/4
0.750
0.752
6.31 1.69 0.81 5.75 1.25 0.44
1
1.0010
1.0025
6.31 1.69 0.69 5.75 1.25 0.44
40, 60, & 68
1‐1/4
1.250
1.252
5.81 2.50 1.19 8.25 2.00 0.69
1‐1/2
1.501
1.503
5.81 2.50 0.94 8.25 2.00 0.69
1. Tolerance for the coupling inner diameter is indicated by showing maximum and minimum dimensions.
COUPLING INNER
DIAMETER
9.5 & 12.7 mm
(3/8 & 1/2 INCH) VALVE
SHAFTS WITH J MOUNTING
15.9 THRU 38.1 mm
(5/8 THRU 1-1/2 INCH)
VALVE SHAFTS WITH
J MOUNTING
COUPLING INNER
DIAMETER
W (DIA)
T
T
W (DIA)
19A1468-C
19A1468-C
A3247-1
