Fisher 1061 - Page 8

Instruction Manual
D100325X012
1061 H & J Actuator
January 2016
8

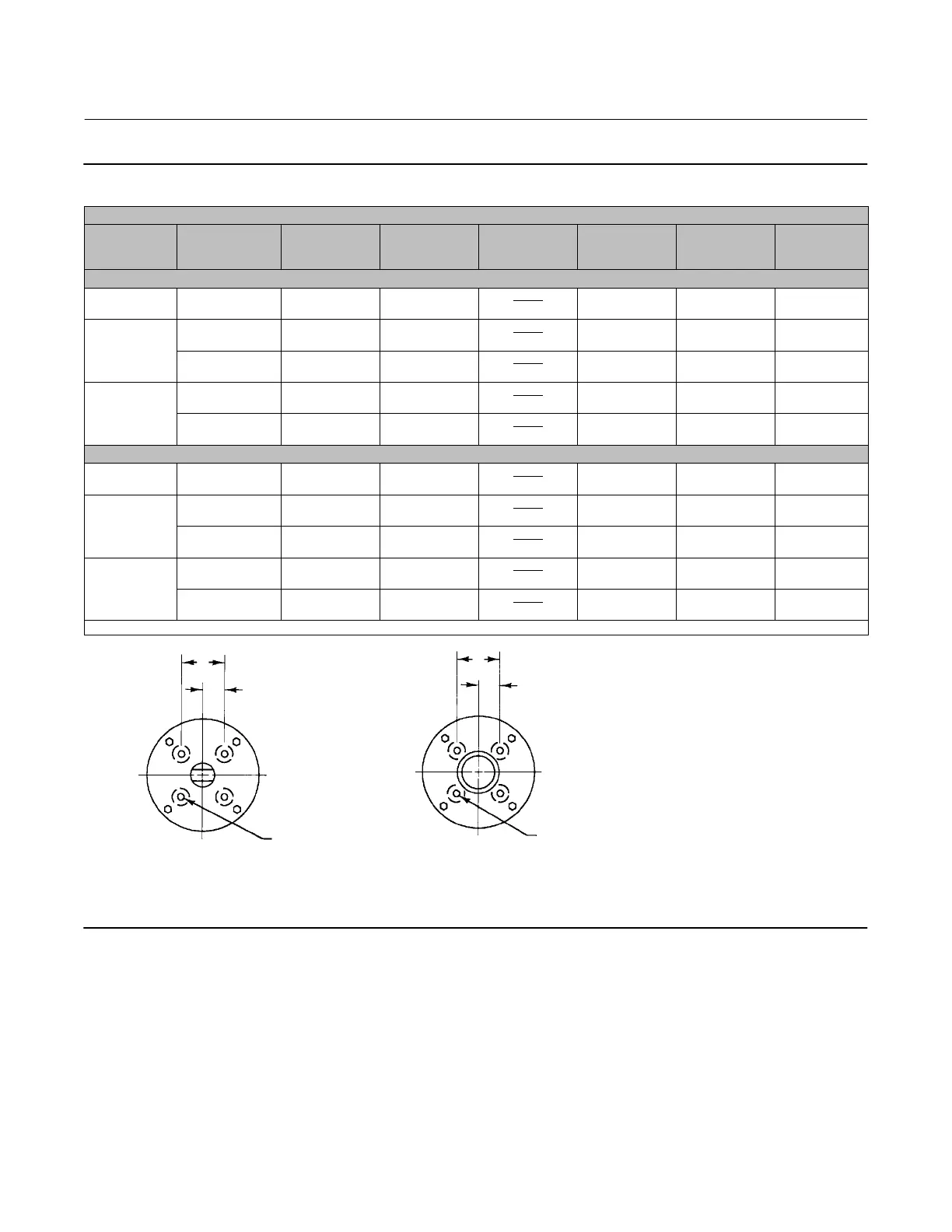

Figure 2. Fisher 1061 Mounting Dimensions (Continued)
H MOUNTING
(1)
Actuator Size
S (Actuator
Output Shaft
Diameter)
V L K T U W
mm
30 22.2 26.2 19.1
15.75
15.62
57.2 28.4 5/16‐18 UNC
30, 40, 60,
& 68
28.6 26.2 19.1
22.10
21.97
76.2 38.1 3/8‐16 UNC
38.1 38.1 28.4
28.45
28.32
88.9 44.5 1/2‐13 UNC
40, 60, & 68
44.5 x 50.8 122.9 69.9
44.45
44.50
88.9 44.5 1/2‐13 UNC
50.8 122.9 69.9
50.83
50.90
88.9 44.5 1/2‐13 UNC
Inches
30 7/8 1.03 0.75
0.620
0.615
2.25 1.12 5/16‐18 UNC
30, 40, 60,
& 68
1‐1/8 1.03 0.75
0.870
0.865
3.00 1.50 3/8‐16 UNC
1‐1/2 1.50 1.12
1.120
1.115
3.50 1.75 1/2‐13 UNC
40, 60, & 68
1‐3/4 X 2 4.84 2.75
1.750
1.752
3.50 1.75 1/2‐13 UNC
2 4.84 2.75
2.001
2.004
3.50 1.75 1/2‐13 UNC
1. Tolerance for the K dimension is indicated by showing maximum and minimum dimensions.
22.2 THRU 38.1 mm
(7/8 THRU 1‐1/2 INCH) OUTPUT
SHAFTS WITH H MOUNTING
A3247‐1
44.5 & 50.8 mm
(1‐3/4 & 2 INCH)
KEYED EQUIPMENT SHAFTS WITH H MOUNTING
19A1462-C
19A1462-C
T
T
U
U
W (DIA)
W (DIA)
