Fisher 1301F User Manual

Types 1301F and 1301G
3
M1015
INLET PRESSURE
OUTLET PRESSURE
ATMOSPHERIC PRESSURE
Type 1301F
M1015
INLET PRESSURE
OUTLET PRESSURE
ATMOSPHERIC PRESSURE
Type 1301F
INLET PRESSURE
OUTLET PRESSURE
ATMOSPHERIC PRESSURE
M1015

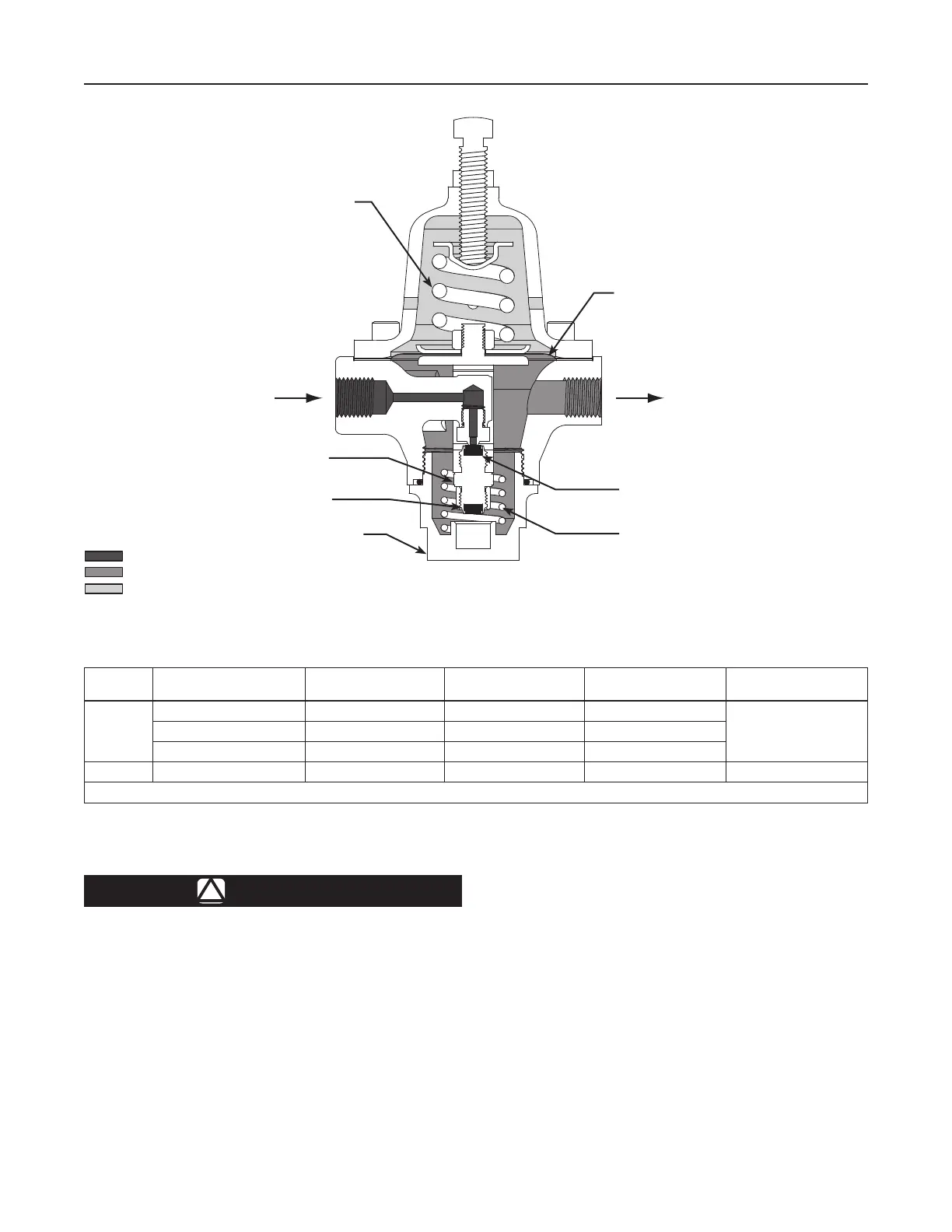

Figure 2. Type 1301F Operational Schematic
TYPE
OUTLET PRESSURE
RANGES
(1)
, PSIG (bar)
SPRING COLOR SPRING PART NUMBER
SPRING WIRE DIAMETER,
INCH (mm)
SPRING FREE LENGTH,
INCH (mm)
1301F
10 to 75 (0,69 to 5,2) Blue 1D387227022 0.200 (5,08)
1.69 (42,9)50 to 150 (3,4 to 10,3) Silver 1B788527022 0.225 (5,72)
100 to 225 (6,9 to 15,5) Red 1D465127142 0.243 (6,17)
1301G 200 to 500 (13,8 to 34,5) Silver 1K156027142 0.331 (8,41) 0.88 (22,4)
1. All springs can be backed off to 0 psig (0 bar).
Table 1. Outlet Pressure Ranges
Installation
!
WARNING
Overpressuring a regulator or
associated equipment may cause
leakage, part damage, or personal injury
due to bursting of pressure containing
parts or explosion of accumulated gas.
Do not install a regulator where service
conditions can exceed the specications
listed on the Specications section, of
any applicable local, state or federal
codes and regulations.
Use qualied personnel when installing, operating,
and maintaining these regulators. Make sure that there
is no damage or foreign material in the regulator and
that all tubing and piping are clean and unobstructed.
The regulator may be installed in any position. Apply
pipe compound to the pipeline threads. Connect inlet
piping or tubing to the 1/4 NPT connection marked
“In” and outlet piping or tubing to one of the 1/4 NPT
connections marked “Out”. Install a pressure gauge or
pipe plug in the unused outlet connection.
If continuous operation of the system is required
during inspection or maintenance, install a three-valve
bypass around the regulator.
CONTROL SPRING
DISK HOLDER
SPARE DISK
BOTTOM CAP
VALVE SPRING
VALVE DISK
DIAPHRAGM
