Fisher 655 - Page 13

Type 655 and 655R
13

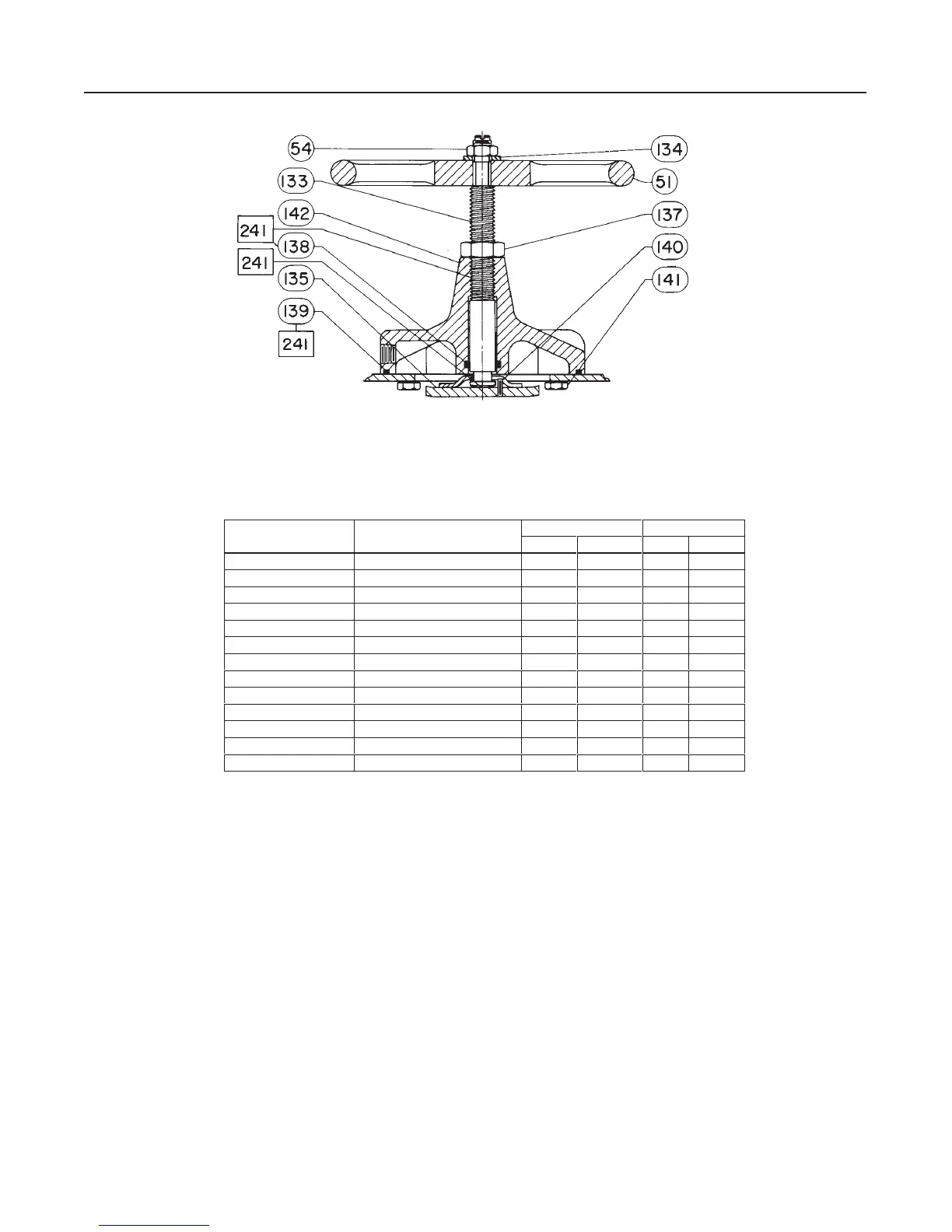

Figure 8. Size 32 through 46 T op-Mounted Handwheel Assembly .
BV8008-E/DOC
Key 6 Spring, steel
SPRING
COLOR CODE
SPRING RATE SAFE LOAD
SPRING
PART NUMBER
COLOR CODE
Lb/in. N/mm Lb N
1F713027112 Aluminum & red 123 22 290 1290
1F714427112 Aluminum & dark green 246 43 545 2420
1F176727032 Dark green 368 64 843 3750
1F176827092 Aluminum 490 86 1060 4720
1F176927092 Dark blue 612 107 1187 5200
1F714327092 Aluminum & dark blue 830 145 1630 7250
1E795327082 Light blue 1260 220 1840 8184
1E792427082 Light green 1470 257 2200 9790
1E795427082 Light grey 1770 310 2600 11,600
1E793327082 Yellow 2100 368 3045 13,500
1E792327092 Dark grey 735 129 1160 5160
1J258127092 Aluminum & brown 1000 175 1575 7000
1E795627082 White 2520 441 3150 14,010
