22 Pressure Gauge (not shown)
Triple Scale Pressure Connected Gauge
(For Types 67D, 67DR, 67DF and 67DFR)
Brass
0 to 30 psig / 0 to 2.1 bar / 0 to 0.2 MPa 11B8579X022
0 to 60 psig / 0 to 4.1 bar / 0 to 0.4 MPa 11B8579X032
0 to 160 psig / 0 to 11.0 bar / 0 to 1.1 MPa 11B8579X042
For All
Stainless Steel
0 to 30 psig / 0 to 2.1 bar / 0 to 0.2 MPa 11B9639X012
0 to 60 psig / 0 to 4.1 bar / 0 to 0.4 MPa 11B9639X022
0 to 160 psig / 0 to 11.0 bar / 0 to 1.1 MPa 11B9639X032
Triple Scale Pressure Top Connected Gauge
(For Types 67D, 67DR, 67DF and 67DFR only)
Stainless steel
0 to 30 psig / 0 to 2.1 bar / 0 to 0.2 MPa 11B8582X012
0 to 60 psig / 0 to 4.1 bar / 0 to 0.4 MPa 11B8582X022
0 to 160 psig / 0 to 11.0 bar / 0 to 1.1 MPa 11B8582X032
23 1/4 in. / 6.4 mm Pipe Plug (not shown)
For Types 67D, 67DR, 67DF and 67DFR
Socket head, Steel 1C333528992
For All Types except Types 67DF and 67DFS
Hex head, Stainless steel 1A767535072
For Types 67DF and 67DFS
Hex head, Stainless steel 1C3335X0012
30 NACE Tag (not shown) - - - - - - - - - - -
31 Panel Mounting Nut, Stainless steel 10B2657X012
32 Wire Seal (not shown)
For Types 67D and 67DR, Stainless steel 1U7581000A2
For Types 67DF and 67DFR T14088T0012
33 Closing Cap, Plastic 23B9152X012
45 Screen Vent (for Types 67DS, 67DSR, 67DFS
and 67DFSR only) 0L078343062
48 Spring Retainer
For Type 67D or 67DR, Aluminum GG03555X012
For Type 67DS or 67DSR, Stainless steel GE31803X022
For Type 67DF or 67DFR, Zinc-plated steel GE31797X012
For Type 67DFS or 67DFSR, Stainless steel GE31797X022
49* O-ring (Plug)
Nitrile (NBR) T12946T0012
Fluorocarbon (FKM) 1C8538X0182
Low Temperature Nitrile (NBR) 1C8538X0192
50* O-ring (Stem)
Nitrile (NBR) 1H2926X0052
Fluorocarbon (FKM) 1H2926X0062
Low Temperature Nitrile (NBR) 1H2926X0072
57 Valve Plug
For Types 67D, 67DR, 67DF and 67DFR
Brass GE31779X012
Aluminum GE31779X022
For All
Stainless steel GE31779X032
58* Seat
Stainless steel/Nitrile (NBR) GE31782X012
Stainless steel/Fluorocarbon (FKM) GE31782X022
For Types 67D, 67DR, 67DF and 67DFR
Brass/Nitrile (NBR) GE31782X032
65 Filter Retainer Screw
For Types 67DF, 67DFR, 67DFS and 67DFSR
Stainless steel T13526T0042
For Types 67DF and 67DFR
Zinc-plated steel T13526T0012
66* Filter Gasket
For Types 67DF, 67DFR, 67DFS and 67DFSR
Nitrile (NBR) GG00752X012
Fluorocarbon (FKM) GG00752X022
*Recommended spare parts
Inconel
®
is a mark owned by Special Metals Corporation.
Key Description Part Number

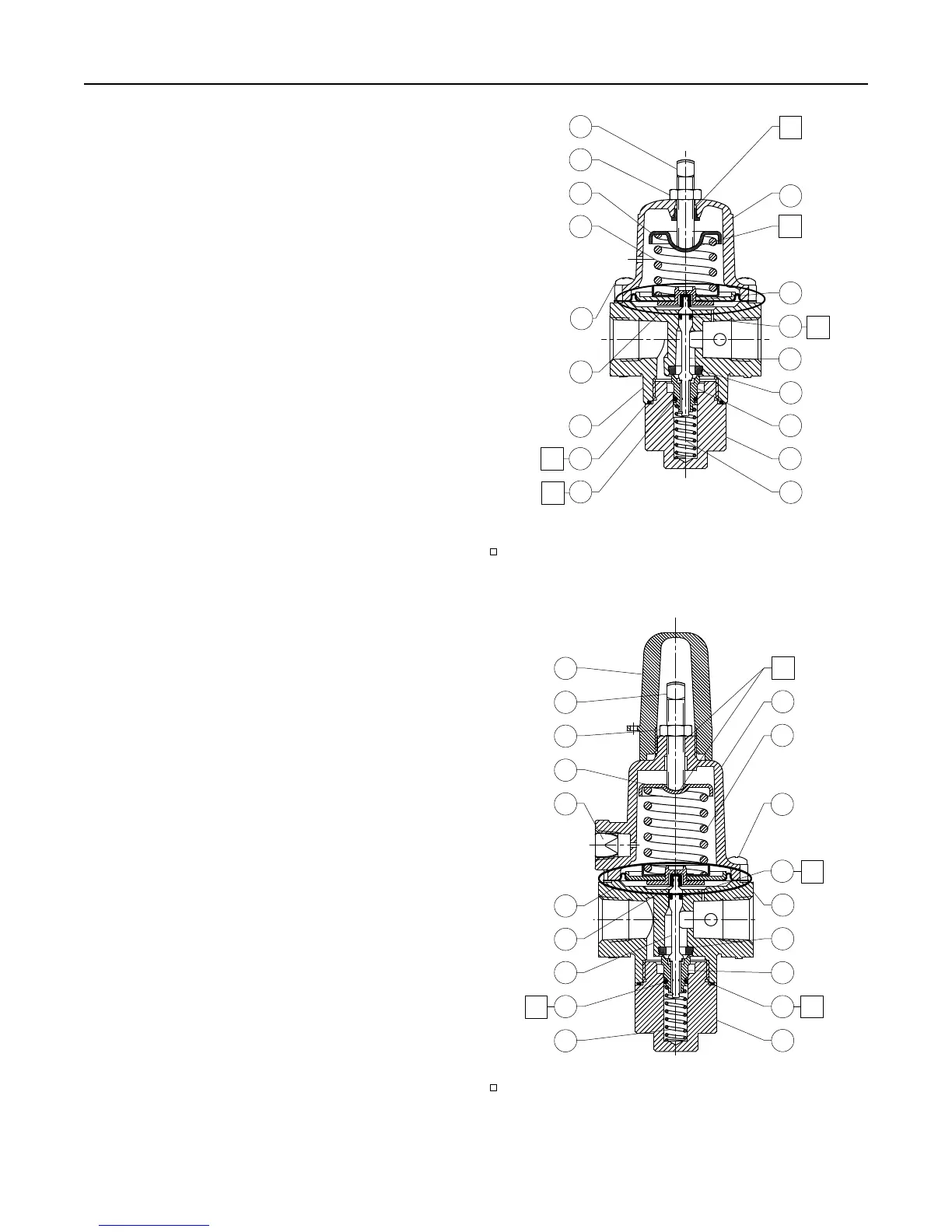

Figure 3. Type 67D or 67DR Assembly
GE32851_A
PARTS NOT SHOWN: 25
APPLY LUBRICANT (L)
7
15
50
11
58
57
18
48
12
19
20
17
3
1
16
14
49
L
L
L
L
L
Figure 4. Type 67DS or 67DSR Assembly
PARTS NOT SHOWN: 25
GE31806_A
APPLY LUBRICANT (L)
33
18
19
20
45
15
11
49
12
48
14
57
58
1
50
3
17
7
16
L
L
L
L
9
67D Series
