Fisher C1P User Manual

C1 Controllers and Transmitters
Instruction Manual
September 2009
35
NOTE:
KEYS 11, 21, 22, 29 ARE NOT SHOWN
GE28281−B
E1071
RELAY ASSEMBLY
SUBASSEMBLY (KEY NOS.
SHOWN IN FIGURE 23 OR 24)
PROPORTIONAL-PLUS-RESET CONTROLLER
WITHOUT ANTI-RESET WINDUP
SPRING−OUT CLEANING WIRE

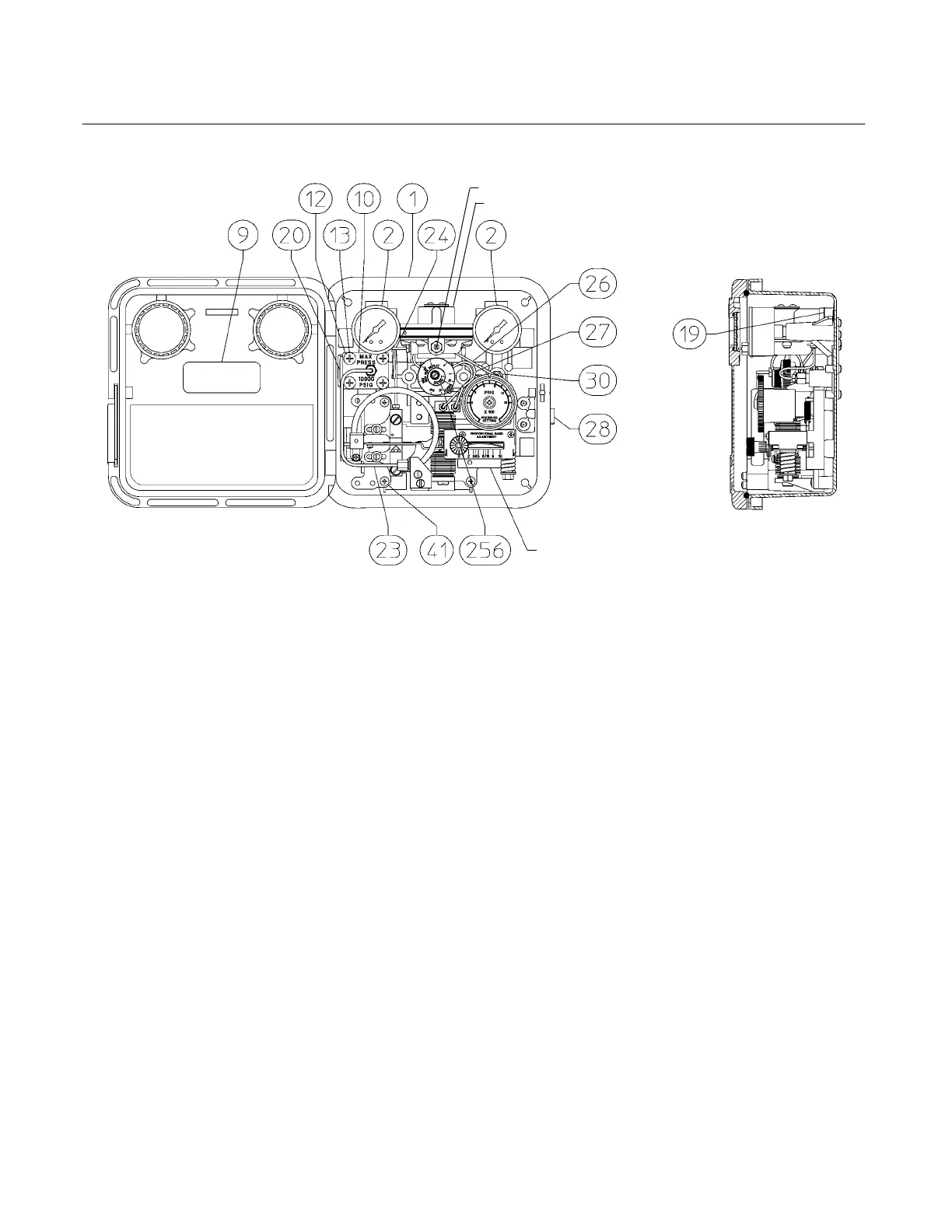

Figure 22. Typical Reverse Acting Fisher C1 Proportional−Plus−Reset Assembly
(Refer to figure 25 for the Front View of the Case & Cover Assembly)
Key Description Part Number
58 Knob, PPS (polyphenylene sulfide)
59 Knob Spring, steel/zinc pl
60 Washer, G10100 carbon steel, zinc pl
61 Machine Screw, steel pl
62 Washer
(1)
, brass/zinc pl (2 req’d)
63 Gain Adj Bar, A03600
64 Washer, 18−8 SST (2 req’d)
65 Spring Adjustor, 18−8 SST
66 Travel Stop Assembly, SST
Use w/optional Bourdon tube travel stop
67* Inner Flexure, S30200 GE26663X012
68* Outer Flexure, S30200 GE26664X012
69 Indicator Scale, aluminum
70 Bias Spring, S30200
Key Description Part Number
71* Gauge Pressure Bellows (input)
(3)
Brass
0−150 mbar (0−60 inches wc) positive, 0−150 mbar
(6−60 inches wc) vacuum, and 75−0−75 mbar
(30−0−30 inches wc) compound 1L3780000A2
0−250 mbar (0−100 inches wc) positive 1L3788000A2
0−0.35 mbar (0−5 psig) positive and for
0−350 mbar (0−10 inches Hg) vacuum 1L3781000A2
0−0.5 bar (0−7.5 psig) positive 1L3789000A2
0−0.7 bar (0−10 psig) positive 1L3782000A2
0−1.0 bar (0−15 psig) positive, 0−1.0 bar
(0−30 inches Hg) vacuum, and 500−0−500 mbar
(15−0−7.5 psig) compound 1L3783000A2
0−1.4 bar (0−20 psig) positive 1L3784000A2
0−2.0 bar (0−30 psig) positive and 1.0−0−1.0 bar
(30−0−15 psig) compound 1L3785000A2
Stainless steel,
0−1.0 bar (0−15 psig) positive, 0−1.0 bar
(0−30 inches Hg) vacuum, and 500−0−500 mbar
(15−0−7.5 psig) compound 1L3786000A2
0−2.0 bar (0−30 psig) positive, 1.0−0−1.0 bar
(30−0−15 psig) compound 1L3787000A2
*Recommended spare parts
1. This part is included in the Controller Repair Kit.
3. If ordering the bellows (key 71) to change the range of a gauge pressure
controller, also order the appropriate bellows spring (key 80). Also order
keys 101, 102, and 103 if you do not have them.
