Fisher FIELDVUE DVC6200 Mounting Instructions

2
DVC6200/DVC2000
Digital Valve Controller on
Linear Actuator
Mounting Instructions
D103996X012
May 2014

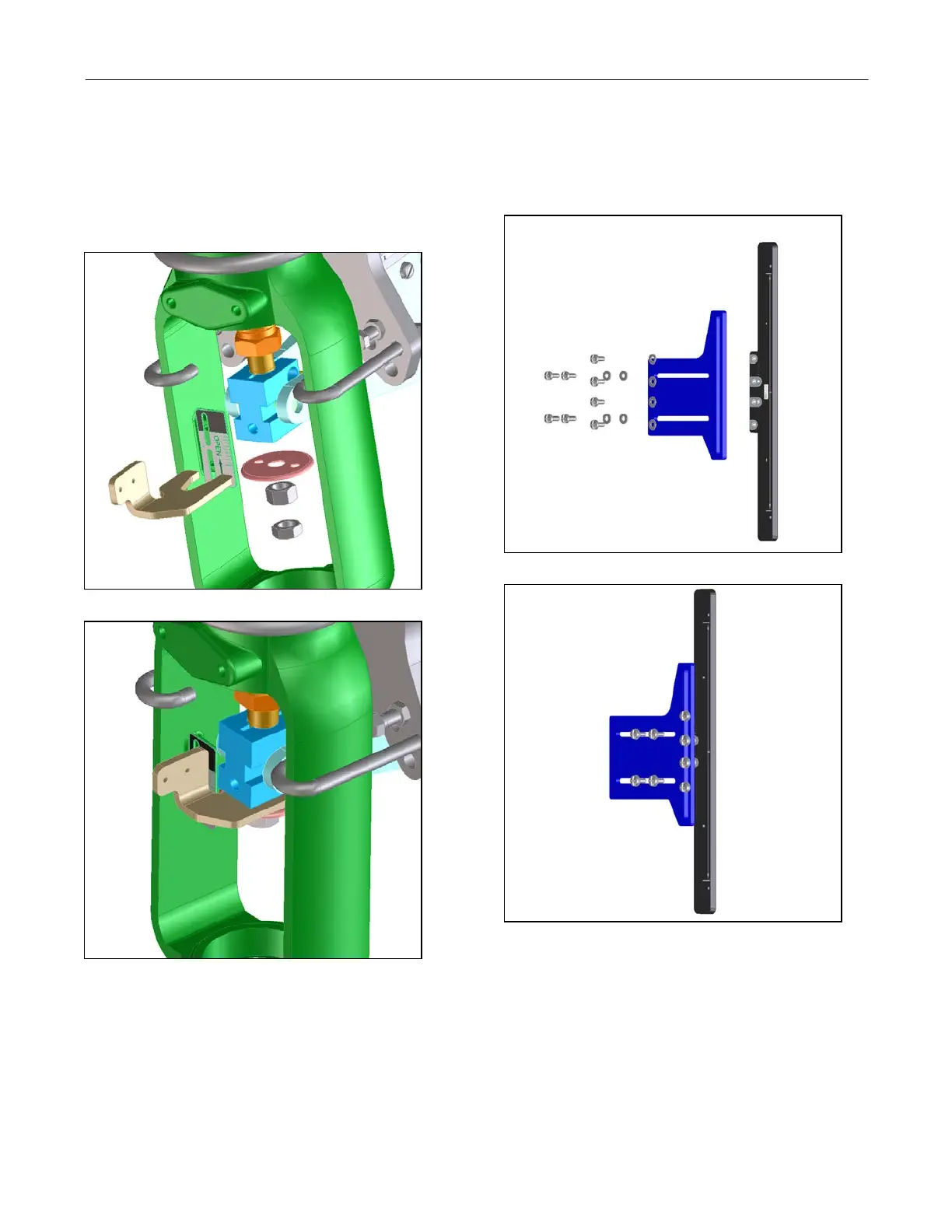

For fork-style connector arms remove the nuts and
indicator disk from the stem. Place the fork-style
extension arm flush with the bottom of the stem block
onto the stem. Reattach the indicator disk and nuts.
3. Loosely attach array to extension arm using
provided fasteners. (
Array not included with kit)

Fisher FIELDVUE DVC6200 Specifications

General

Type	Digital Valve Controller
Operating Temperature Range	-40 to 85 °C (-40 to 185 °F)
Enclosure Rating	NEMA 4X, IP66
Input Signal	4-20 mA, HART
Communication Protocol	HART
Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Diagnostics	Valve signature
Approvals	ATEX, IECEx, FM, CSA
Power Supply	Loop powered
