Fisher FSAIF-CP-91AE3 - Refrigerant Cycle Diagrams

Specifications
 Page 15 

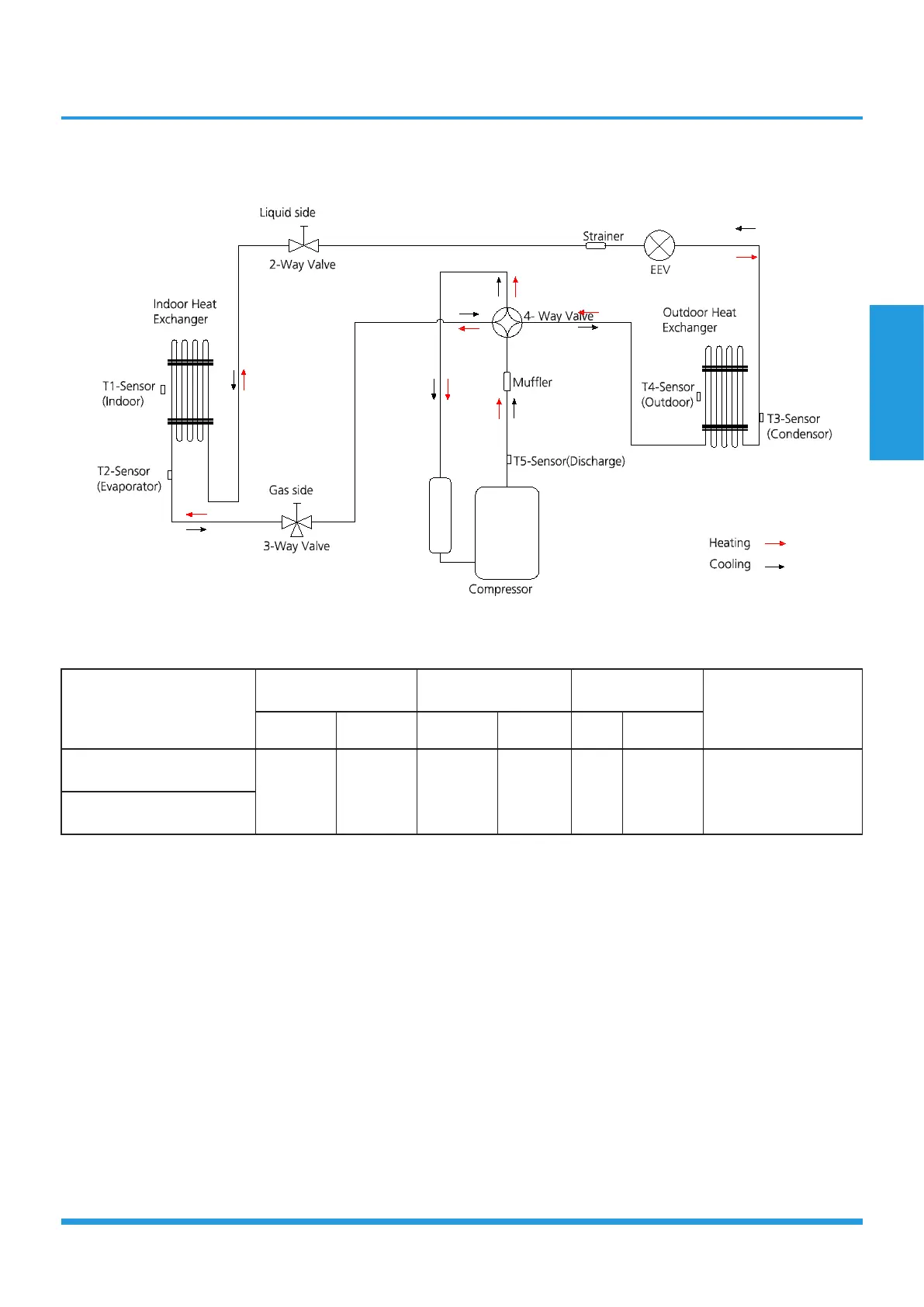

5. Refrigerant Cycle Diagrams
Capacity(Btu./h)
Pipe Size (Diameter:ø)
mm(inch)
Piping length (m/ft) Elevation (m/ft)
Additional Refrigerant
Gas Liquid Rated Max. Rated Max.
9k
9.52(3/8) 6.35(1/4) 5/16.4 25/82 0 10/32.8 12g/m (0.13oz/ft)
12k
