3. Indoor unit installation
3.1 Super slim cassette indoor unit installation

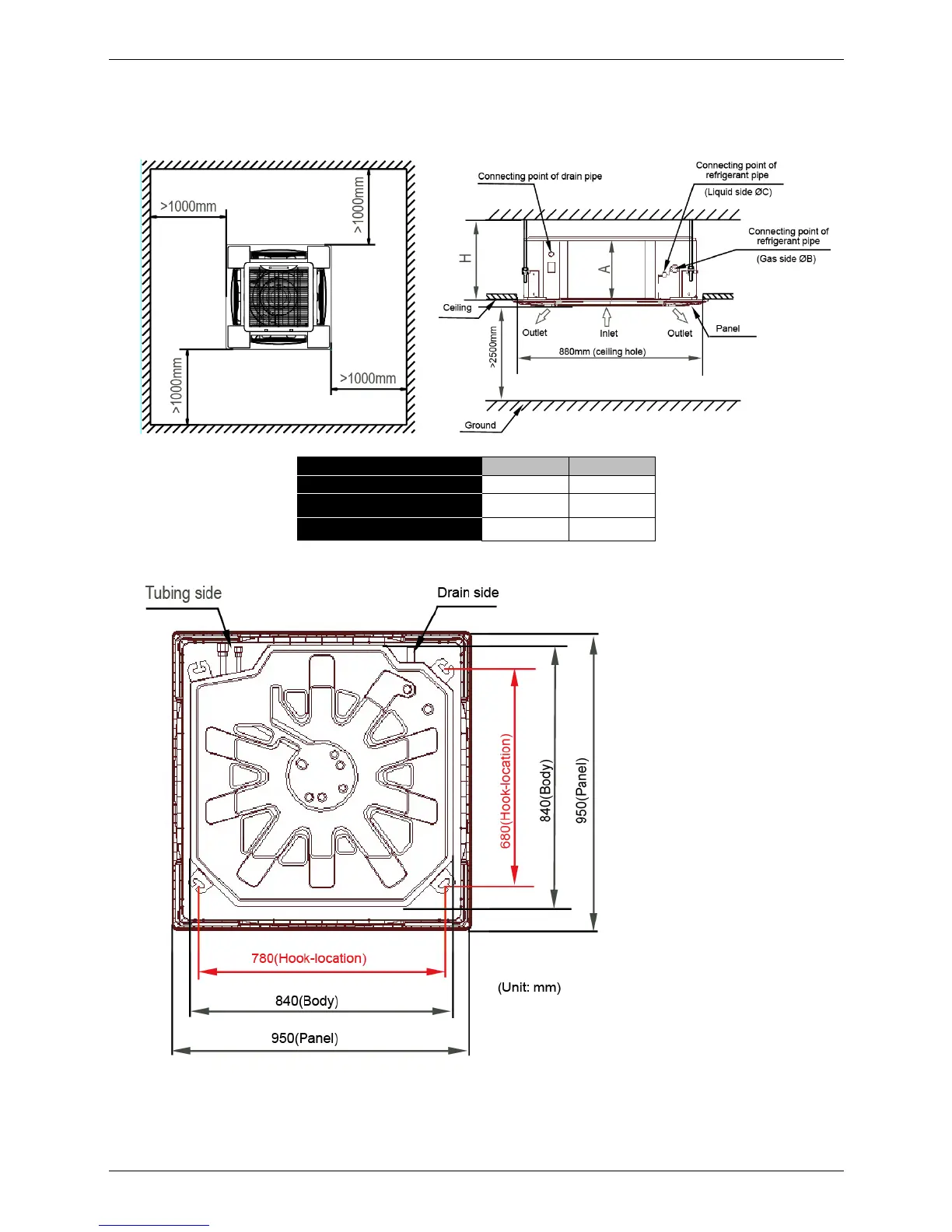

3.1.1 Service space for indoor unit
Model A H
24/30/36
245 >275
48/60 287 >317
3.1.2 Bolt pitch
3.1.3 Install the pendant bolt
Select the position of installation hooks according to the hook holes positions showed in upper picture.
Drill four holes of Ø12mm, 45~50mm deep at the selected positions on the ceiling. Then embed the
expansible hooks (fittings).
