5. With the stem length properly adjusted, wrap the
search coil cable snugly around the lower stem
and the upper handle. Leave just enough slack
near the coil to allow it to be tilted completely
backward and forward.
NOTE: A loose cable near the search coil may cause false
signals, but don’t wrap it so tightly that it pulls against
the housing or the coil.
6. Reconnect the coil cable to the control housing.
Be careful not to cross thread it and make sure it’s
snug - but hand tighten only!

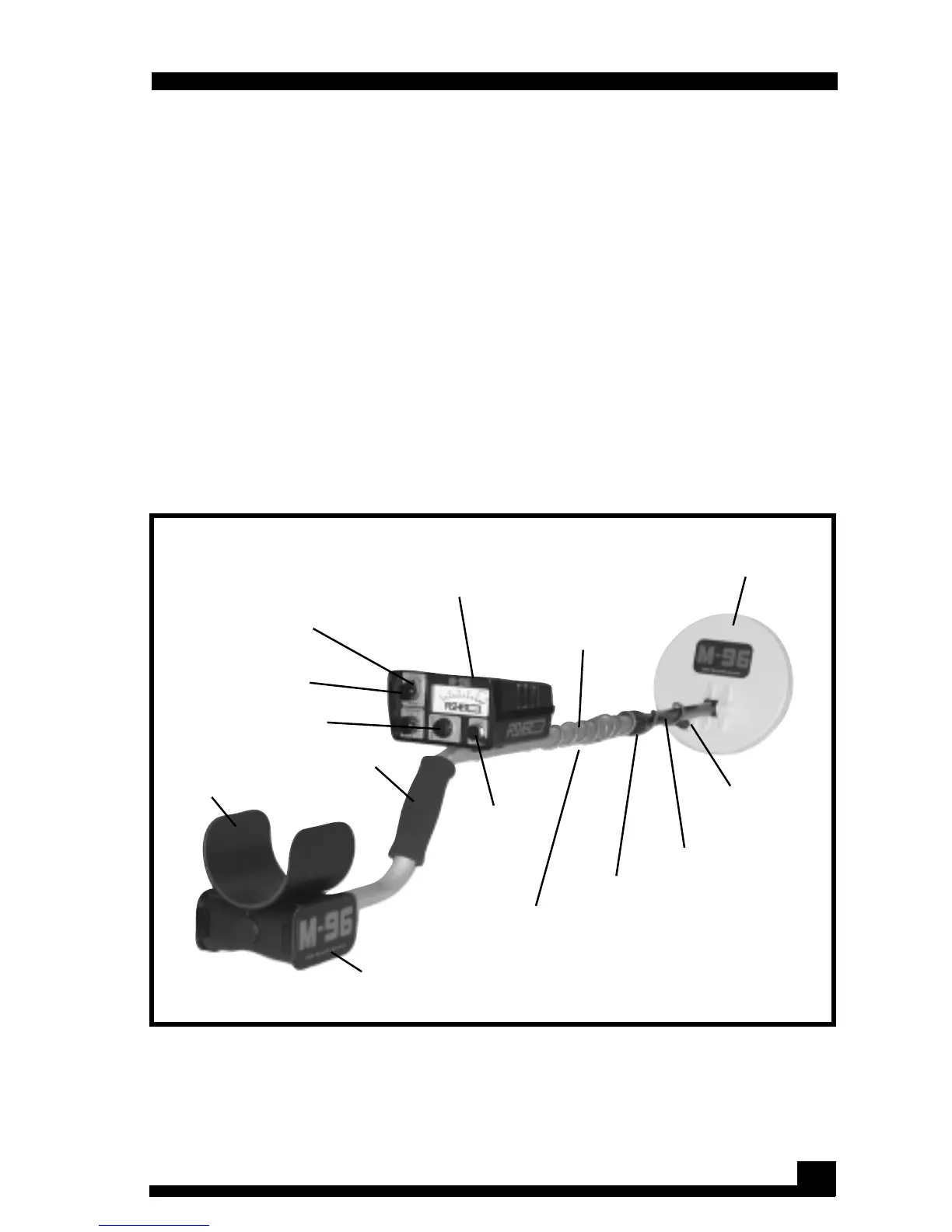

CONDENSED OPERATING INSTRUCTIONS
Foam hand grip
Headphone
socket
Battery
Compartment
(both sides)
8-inch Search Coil
Search Coil
Adjustment
Nylon Wing nut
Lower Stem
Stem Lock Nut
Speaker
Retune Button
On/Off Ground
Reject Knob
Mode Knob
Upper Handle
Padded Arm Rest
Stem Lock Button
To Next Page
