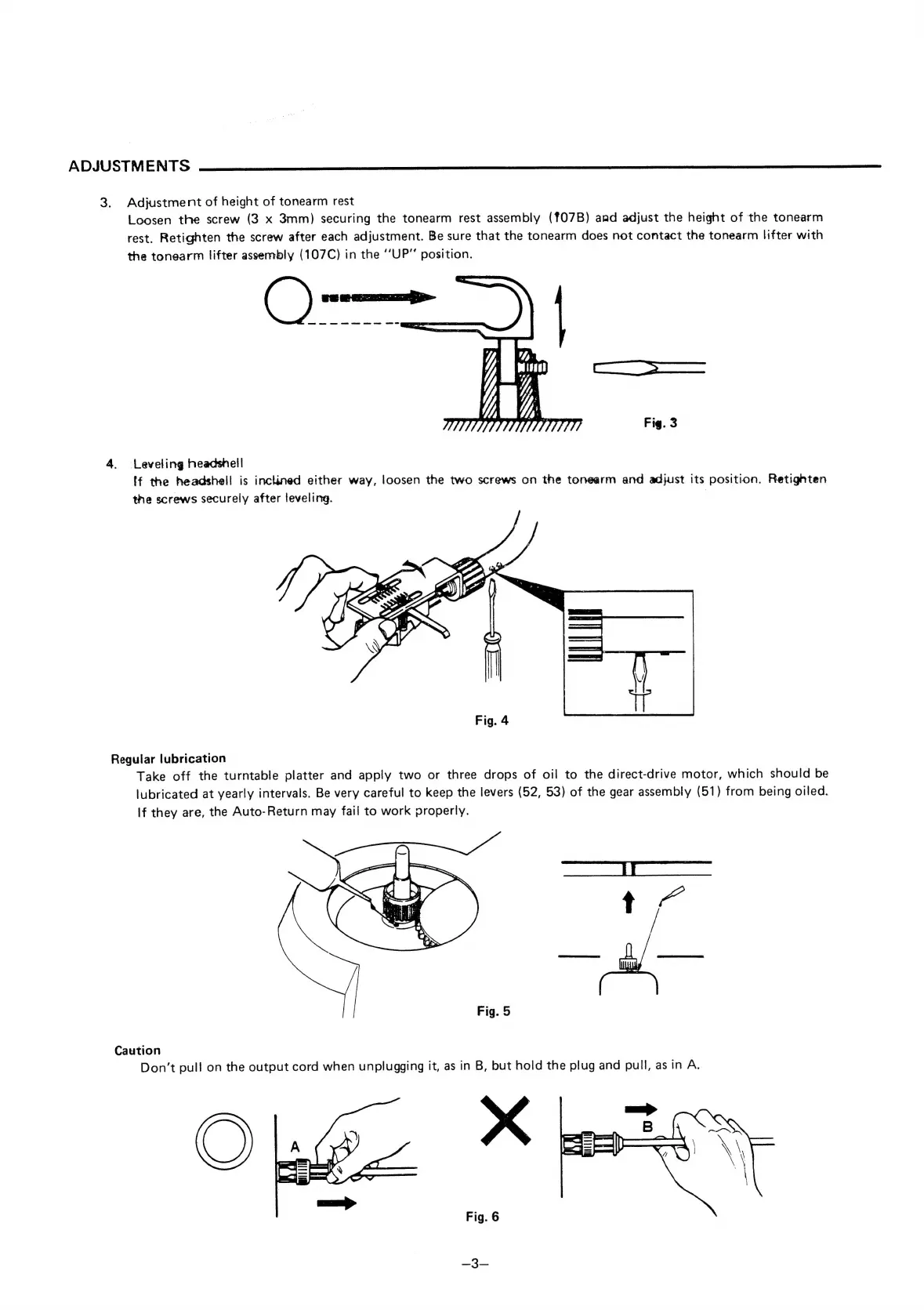

ADJUSTMENTS
3. Adjustment of height of tonearm rest
Loosen
the
screw
(3
x
3mm)
securing
the
tonearm
rest
assembly
(f07B)
ard
adjust
the
height
of
the
tonearm
rest.
Retighten
the
screw
after
each
adjustment.
Be
sure
that
the
tonearm
does
not
contact
the
tonearm
lifter
with
the tonearm lifter assembly (107C) in the ‘‘UP” position.
4. _ Leveling headshell
tf the headshell is inclined either way, loosen the two screws on the tonearm and adjust its position. Retighten
the
screws
securely
after
leveling.
|
\/
T
Fig. 4
Regular lubrication
Take
off
the
turntable
platter
and
apply
two
or
three
drops
of
oil
to
the
direct-drive
motor,
which
should
be
lubricated
at
yearly
intervals.
Be
very
careful
to
keep
the
levers
(52,
53)
of
the
gear
assembly
(51)
from
being
oiled.
If they are, the Auto-Return may fail to work properly.
Fig. 5
Caution
Don’t
pull
on
the
output
cord
when
unplugging
it,
as
in
B,
but
hold
the
plug
and
pull,
as
in
A.
