Fisher MT-6130 - Specifications

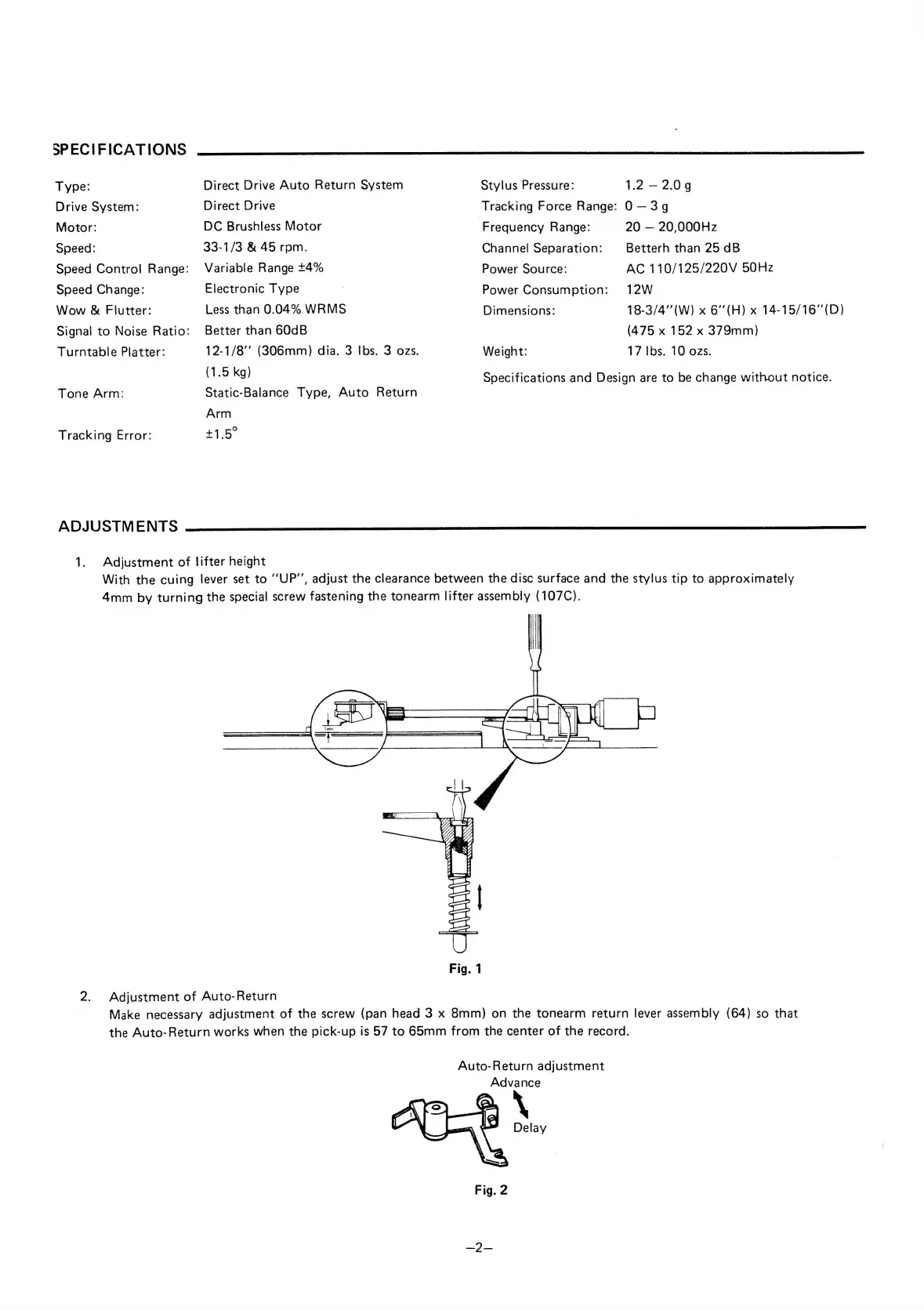

SPECIFICATIONS
Type:
Drive System:
Motor:
Speed:
Speed Control Range:
Speed Change:
Wow & Flutter:
Signal to Noise Ratio:
Turntable Platter:
Tone Arm:
Tracking Error:
ADJUSTMENTS
Direct Drive Auto Return System
Direct Drive
DC Brushless Motor
33-1/3 & 45 rpm.
Variable Range +4%
Electronic Type
Less than 0.04% WRMS
Better than 60dB
12-1/8'' (306mm) dia. 3 Ibs. 3 ozs.
(1.5 kg)
Static-Balance Type, Auto Return
Arm
+1.5°
Stylus Pressure: 1.2—2.0g
Tracking Force Range: 0—3g
‘Frequency Range: 20 — 20,000Hz
Channel Separation: Betterh than 25 dB
Power Source: AC 110/125/220V 50Hz
Power Consumption: 12W
Dimensions: 18-3/4'"(W) x 6""(H) x 14-15/16"(D)
(475 x 152 x 379mm)
Weight: 17 Ibs. 10 ozs.
Specifications and Design are to be change without notice.
1. Adjustment of lifter height
With the cuing lever set to ‘‘UP’’, adjust the clearance between the disc surface and the stylus tip to approximately
4mm by turning the special screw fastening the tonearm lifter assembly (107C).
2. Adjustment of Auto-Return
Make necessary adjustment of the screw (pan head 3 x 8mm) on the tonearm return lever assembly (64) so that
the Auto-Return works when the pick-up is 57 to 65mm from the center of the record.
Auto-
Return adjustment
Advance
