Fisher Type 1008 User Manual

Type 1008
7

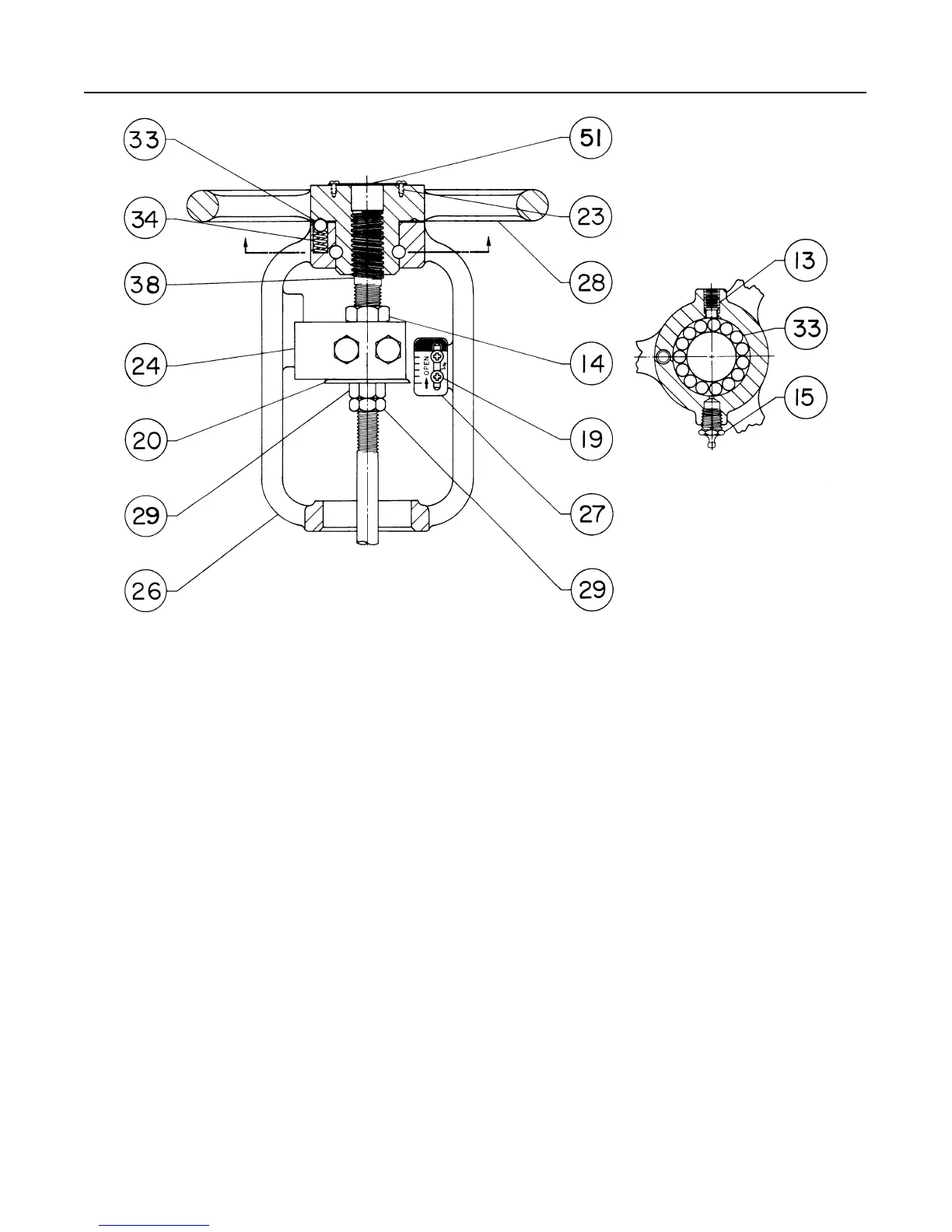

Figure 2. Type 1008 Handwheel Actuator Size 30
30A6973-D / DOC
A
SECTION AĆA
A
PARTS NOT SHOWN 46, 50, AND 22
Key Description Part Number
27 Travel Indicator Scale, stainless steel
Size 30
Standard 1E793638992
For use with Micro Form valve 2N436138992
Back Up Plate 1E793638992
Well Test 1P379938992
Size 40
7/16-inch (11 mm) travel 1E807638992
5/8-inch (16 mm) travel 1E807738992
3/4-inch (19 mm) travel 1E808138992
1-1/8 inch (29 mm) travel 1E808238992
1-1/2-inch (38 mm) travel 1E808338992
2-inch (51 mm) travel 1R444538982
Size 50
5/8-inch (16 mm) travel 1E833038982
3/4-inch (19 mm) travel 1E833138992
1-1/8 inch (29 mm) travel 1E833238992
1-1/2-inch (38 mm) travel 1E833338992
2-inch (51 mm) travel 1E833438992
3-inch (76 mm) travel 1U372638982
4-inch (102 mm) travel 1U372738982
Size 80
3/4-inch (102 mm) (19 mm) travel 1H745738992
1-1/8 inch (29 mm) travel 1H745838992
1-1/2-inch (38 mm) travel 1H745938992
2-inch (51 mm) travel 1H746038992
2-1/2-inch (64 mm) travel 1K511038992
3-inch (76 mm) travel 1H746138982
4-inch (102 mm) travel 1J245238982
Key Description Part Number
27 Travel Indicator Scale, stainless steel (cont’d)
Size 100
2-inch (51 mm) travel 10A2606X012
3-inch (76 mm) travel 1N538238992
4-inch (102 mm) travel 1U372738982
28 Handwheel
Cast iron
Size 30 1R757519412
Sizes 40 & 50 2D358519052
Sizes 40 & 50 w/Set Screw Handwheel Lock 2K667519052
Size 80 3H734319052
Steel
Size 100
12-inch (305 mm) 20A2647X012
16-inch (406 mm) 20A2648X012
20-inch (508 mm) 20A2594X012
29 Hex Nut, steel
Size 30
3/8-inch (9.5 mm) stem (1 each) 1A346524122
1A680324122
1/2-inch (12.7 mm) stem (1 each) 1A413224122
1A353724122
Size 40 (2req’d) 1A353724122
Size 50 (1 each) 1A375424122
1A351124122
Size 80 (2req’d)
1-inch (25.4 mm) stem 1C635224122
1-1/4 inch (31.8 mm) stem 0W073524122
