Key Description Part Number
29 Hex Nut, steel (cont’d)
Size 100
1-1/4 inch (31.8 mm) stem 0W073524122
2-inch (50.8 mm) stem 10A2620X012
30 Hand Grip, steel (size 80) 0U075624092
31 Hand Grip Bolt, steel (size 80) 0U077424092
32 Handwheel Cap, cast iron (size 80) 0W012819042
33 Ball, steel
Size 30 (16 req’d) 1L277828992
Sizes 40 & 50 (1 req’d) 1A342732992
Size 80 (1 req’d) 1A342732992
34 Spring, plated steel
Size 30 1K149127012
Sizes 40 & 50 0D005916012
35 Retaining Flange, steel (size 80) 2H733725012
36 Key, steel (size 80) 1H734425092
37 Cap Screw, steel (size 80) (2 req’d) 1H734732992
38 Stem Screw Assembly, steel
Push-Down-To-Close/Left-Hand Thread
Size 30 1R757731212
Size 40
1-1/2 inch (38 mm) travel 1F8795000A2
2-inch (51 mm) travel 14B1485X012
Size 50
2-inch (51 mm) travel 1F8807000A2
4-inch (102 mm) travel 12A8366X012
Push-Down-To-Open/Right-Hand Thread
Size 40
1-1/2-inch (38 mm) travel 1F8794000A2
2-inch (51 mm) travel 14B1488X012
Size 50 1F8806X0012
Size 80, 3-inch (76 mm) travel 2V3080X00A2
39 Travel Stop, steel (size 80) 1J219024092
40 Machine Screw, plated steel (2req’d)
(size 80) 1H736528992
41 Washer, steel (sizes 40 & 50) 1A518925072
42 Lock Washer, steel (sizes 40 & 50) 1A353828982
43 Nut, stainless steel
Push-Down-To-Close/Left-Hand Thread
Size 40
1-1/2-inch (38 mm) travel 1J365935132
2-inch (51 mm) travel 24B1672X012
Size 50
2-inch (51 mm) travel 1J366235132
4-inch (102 mm) travel 12A8365X012
Push-Down-To-Open/Right-Hand Thread
Size 40
1-1/2-inch (38 mm) travel 1J366135132
2-inch (51 mm) travel 24B1800X012
Size 50 1J366035132
44 Bearing Retainer, brass (sizes 40 & 50) 1F658014012
45 Bearing Seat, steel (sizes 40 & 50) 1F879724092

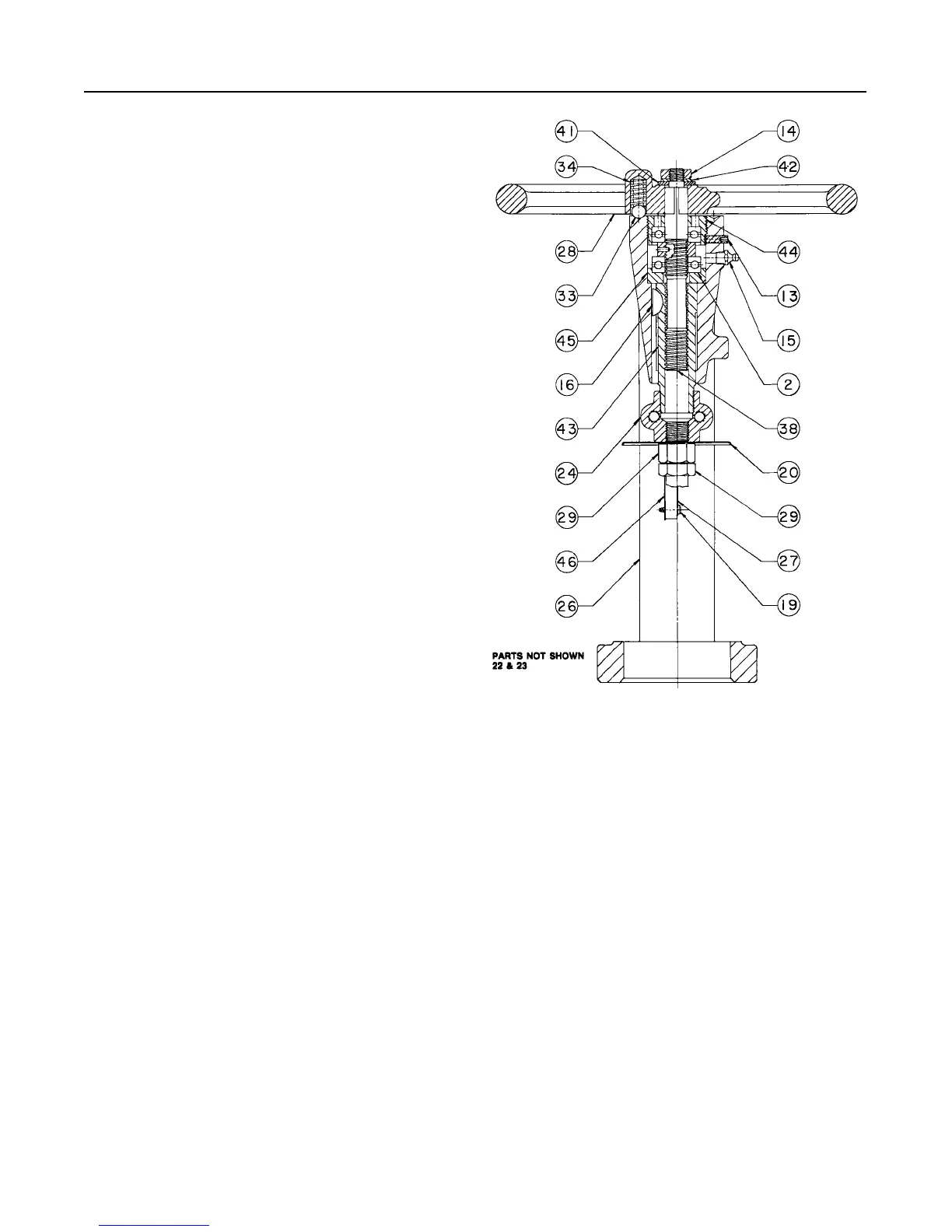

Figure 3. Type 1008 Handwheel Actuator Sizes 40 and 50
30A6972-A/DOC
Key Description Part Number
46 Twin Speed Nut, stainless steel
Size 30 1E793938992
Size 40 1E808438992
Size 40, For Design FY Valve 1E793938992
Size 50 1E833538992
47 Tejax Indicator
Size 30 12B3922X012
Sizes 40 & 50 12B3923X012
48 Set Screw w/Set Screw Handwheel Lock, (not shown)
(sizes 40 & 50) 1A951028992
51 Cover, aluminum (size 30) 11B5523X012
