Wire Description
5
HF Tilt (BLUE)
To activate, connect to ground.
For best performance, insulate any wire that is not used.
Preamp Output (ORANGE)
Connect to Volume pot.
Ground (BLACK)
Connect to pot & bridge ground.
Battery + (RED)
Connect to battery positive terminal.
Coil output (WHITE)
Connect to 5-way switch.
Preamp input (YELLOW)
Connect to 5-way switch pole.
Voice Select (GRAY)
Voice 1: selected if wire is not grounded.
Voice 2: selected if connected to ground.

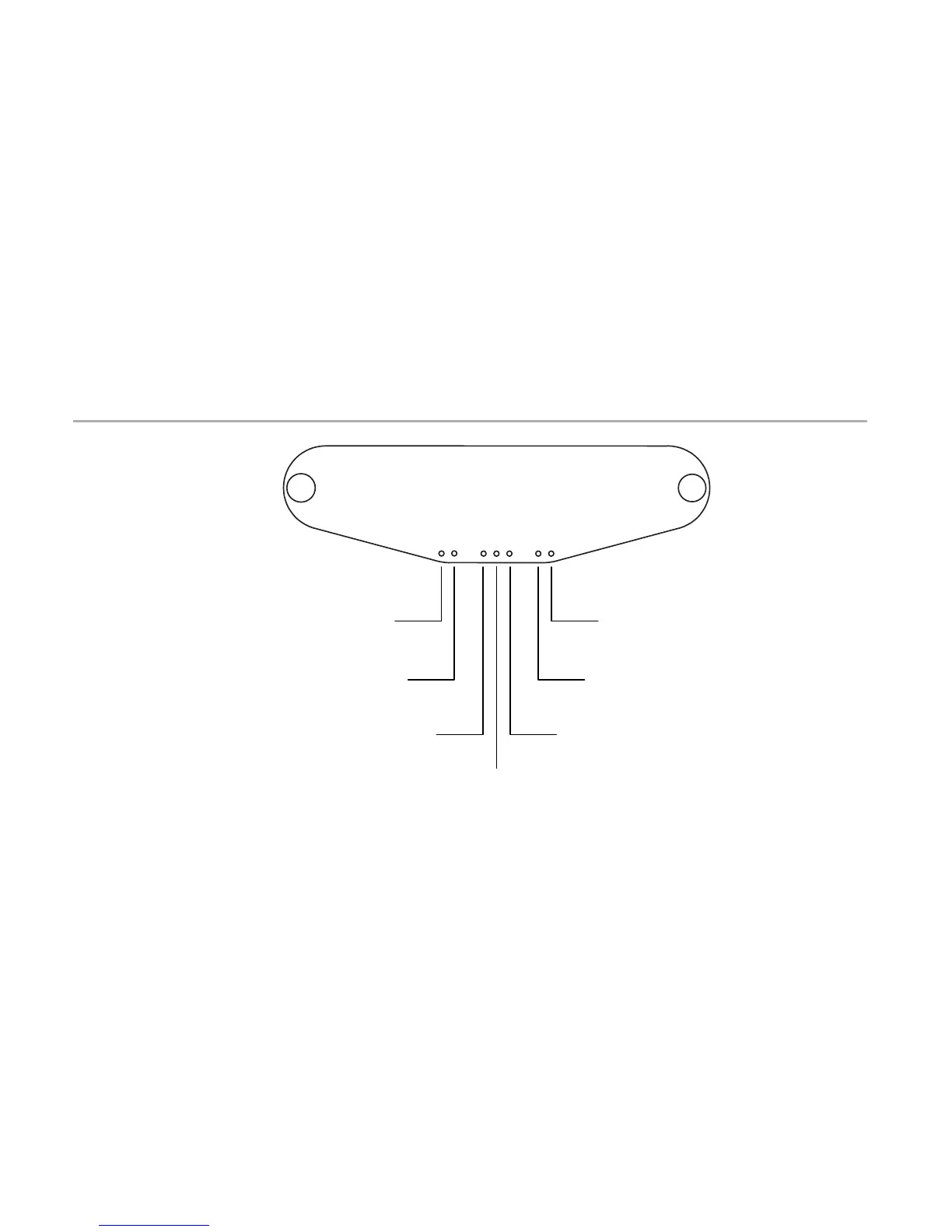

Active pickup underside view
