5

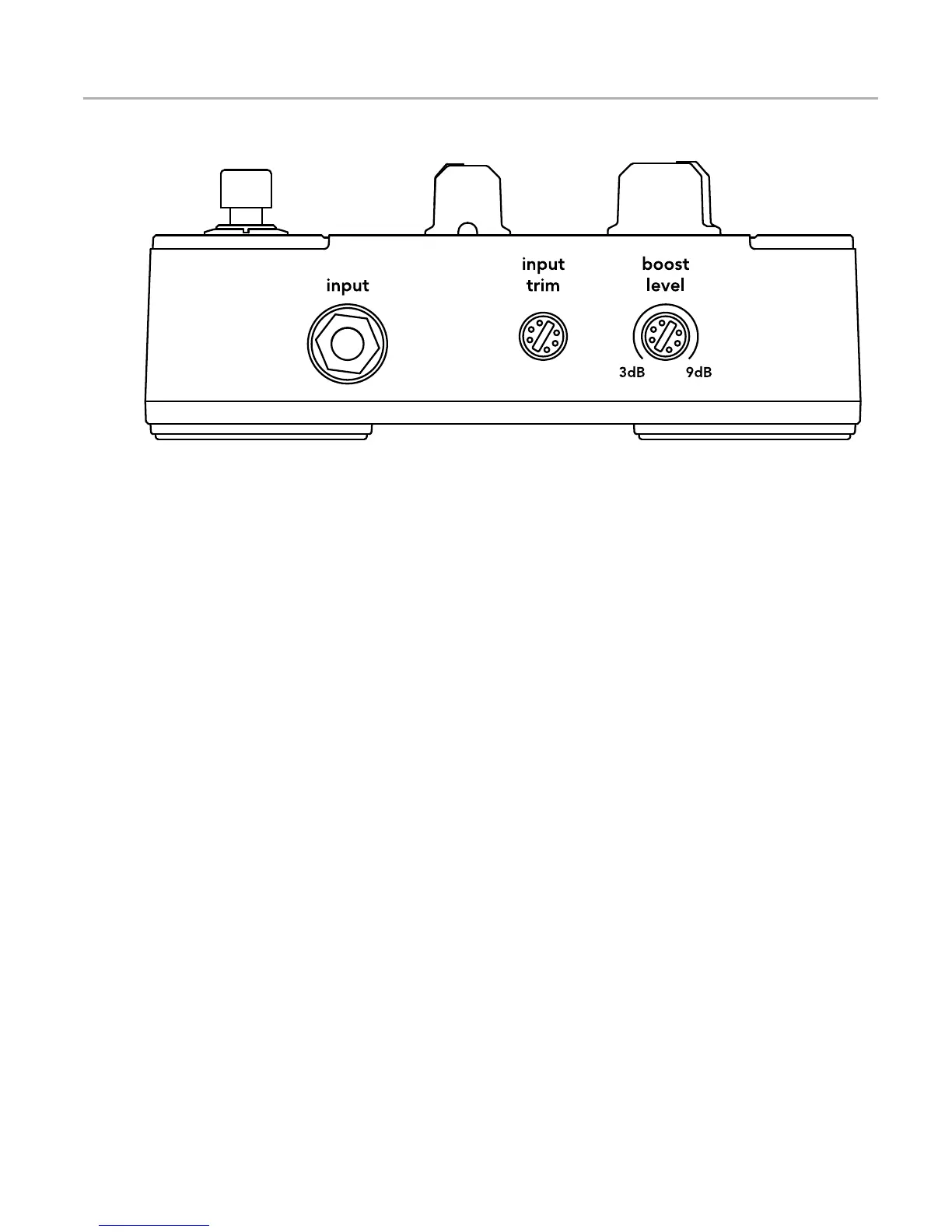

Right Side Panel
Input
Plug in your instrument here with a standard ¼-inch instrument cable. If you have
a passive undersaddle pickup (no battery onboard), always plug into this preamp
pedal rst, even if you use a pedal tuner.
Insert a plug into the input jack, and the TONEDEQ | AFX powers up. To
conserve the battery, remove the plug from the input when not in use.
Input Trim
Raise or lower the input trim to optimize the input level for your pickup. Play
hard and adjust input trim so the level LED lights green and occasionally ashes
red. Some pickup systems may not cause the light to ash red at all and other
onboard preamps may require you to turn their output down to achieve an
optimum level.
Boost Level
The amp output and D.I. output level can be boosted using the boost foot
switch. The boost level controls the amount of increased output level from 3dB
to 9dB.
