Figure 2.1.1-1 External radio of base station
Ş
ekil 2.1.1-1 Baz istasyonunun Harici radyosu
No.
Name /
İ
sim
Purpose / Amaç
1
Radio antenna
Radyo anteni
External radio antenna.
Harici radyo anteni.
2
Tripod
Üç ayakl
ı
sehpa
Mount the radio antenna on it.
Radyo antenini üzerine monte edin.
3
Receiver
Alıcı
Receive satellite signals.
Uydu sinyallerini alın.
4
Radio
radyo
External radio.
Harici radio.
5
Battery
Pil
Power the receiver and the external radio. You are recommended to
purchase it separately due to transportation restrictions.
Al
ı
c
ı
y
ı
ve d
ış
radyoyu çal
ış
t
ı
r
ı
n. Ta
şı
ma k
ı
s
ı
tlamalar
ı
nedeniyle ayr
ı
olarak satın almanız önerilir.

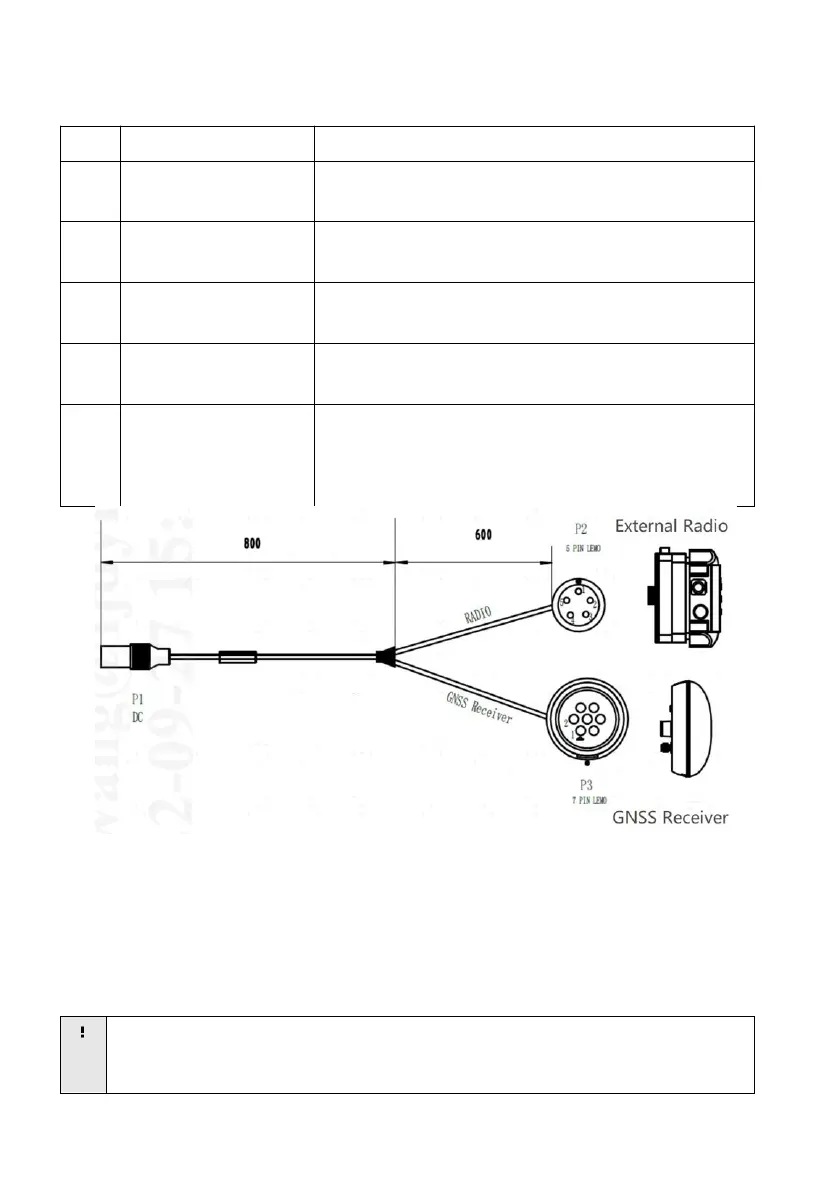

Figure 2.1.1-2 Connection of external radio of base station and receiver
Şekil 2.1.1-2 Harici radyo baz istasyonu ve GNSS Alıcısı arasındaki bağlantı şeması
2.1.2 Setting up the Inner Radio /
İ
ç Radyonun Kurulumu
Mount the receiver on the tripod and fix the tripod on the ground.
Alıcıyı tripod üzerine monte edin ve tripodu zemine sabitleyin.
Note: The inner radio covers a range of 5–10 km and has strict requirements for
the operation environment.
Not: İç radyo, 5 - 10 km'lik bir alanı kapsar ve işletme alanı için yüksek çevresel
