TEMPERATURE FEELER GAUGE ADJUSTMENT
(ATTACHED TO FAN SWITCH)
The temperature feeler gauge is required to be always touching the heater
exchanger.
The temperature feeler gauge controls the air flow over the fan switch, which
eliminates any unnecessary fan cycling. The temperature feeler gauge can be
adjusted for different outside temperatures, by rotating the location of the
temperature feeler gauge holes. This will provide maximum performance of the
unit in different applications.

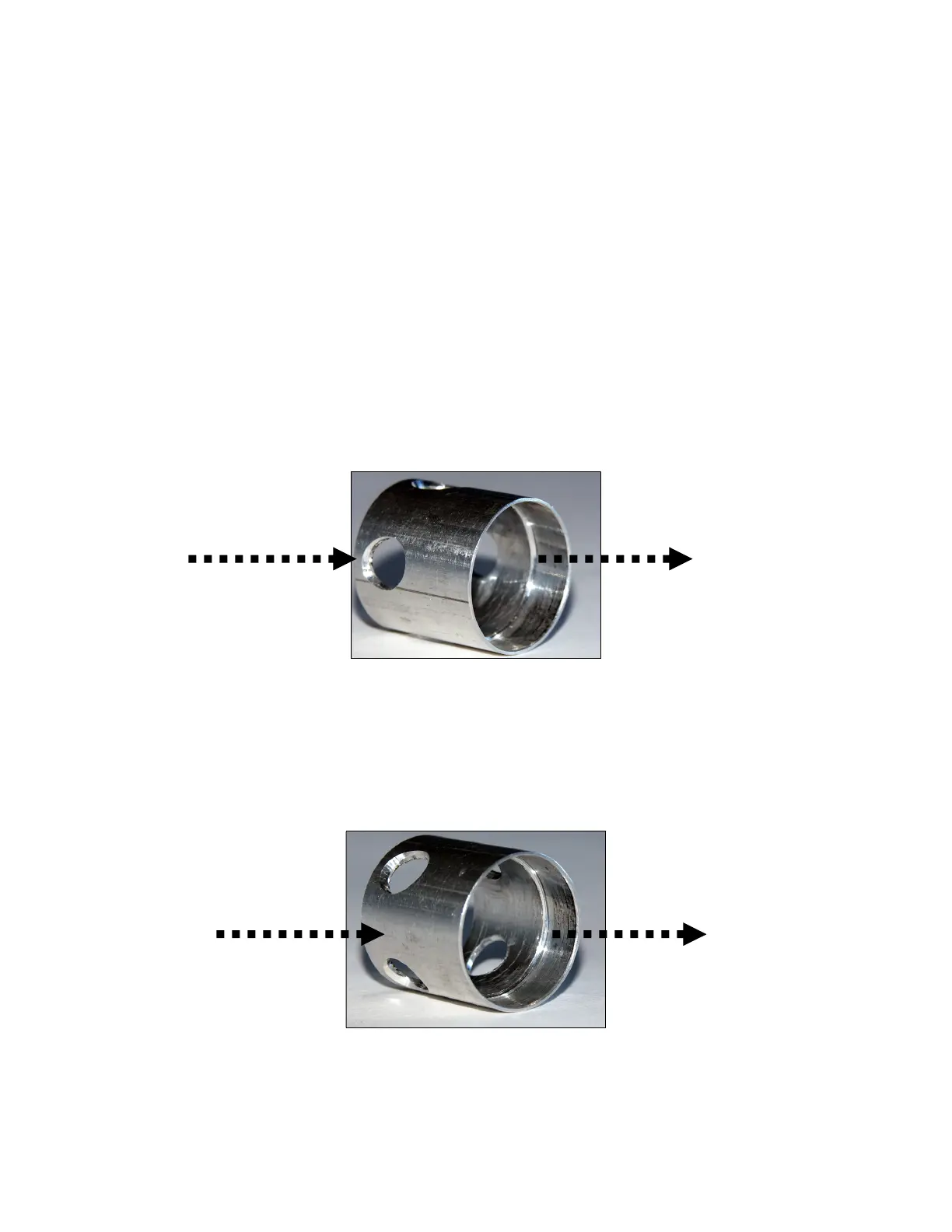

If supply air is warm (-5º C, indoor application):
Turn the temperature feeler gauge so that the holes are parallel with the heat
exchanger. This will help the fan switch to remain cool and not overheat. See
following:
If supply air is cold (under -5ºC):
Turn the temperature feeler gauge so that the holes are closed off as the air goes
over the heat exchanger. This will reduce fan cycling and the unit from shutting
down. See following:
In extreme cold conditions, cover the holes on the temperature feeler gauge
using foil tape or use part# FV-433B (solid feeler gauge). Ensure that the
temperature feeler gauge is readjusted for warmer weather conditions. Failure to
do so may result in burning out fan switches- not covered under warranty.
