Flagro FVO-1000TR - Nozzle Placement

NOZZLE PLACEMENT

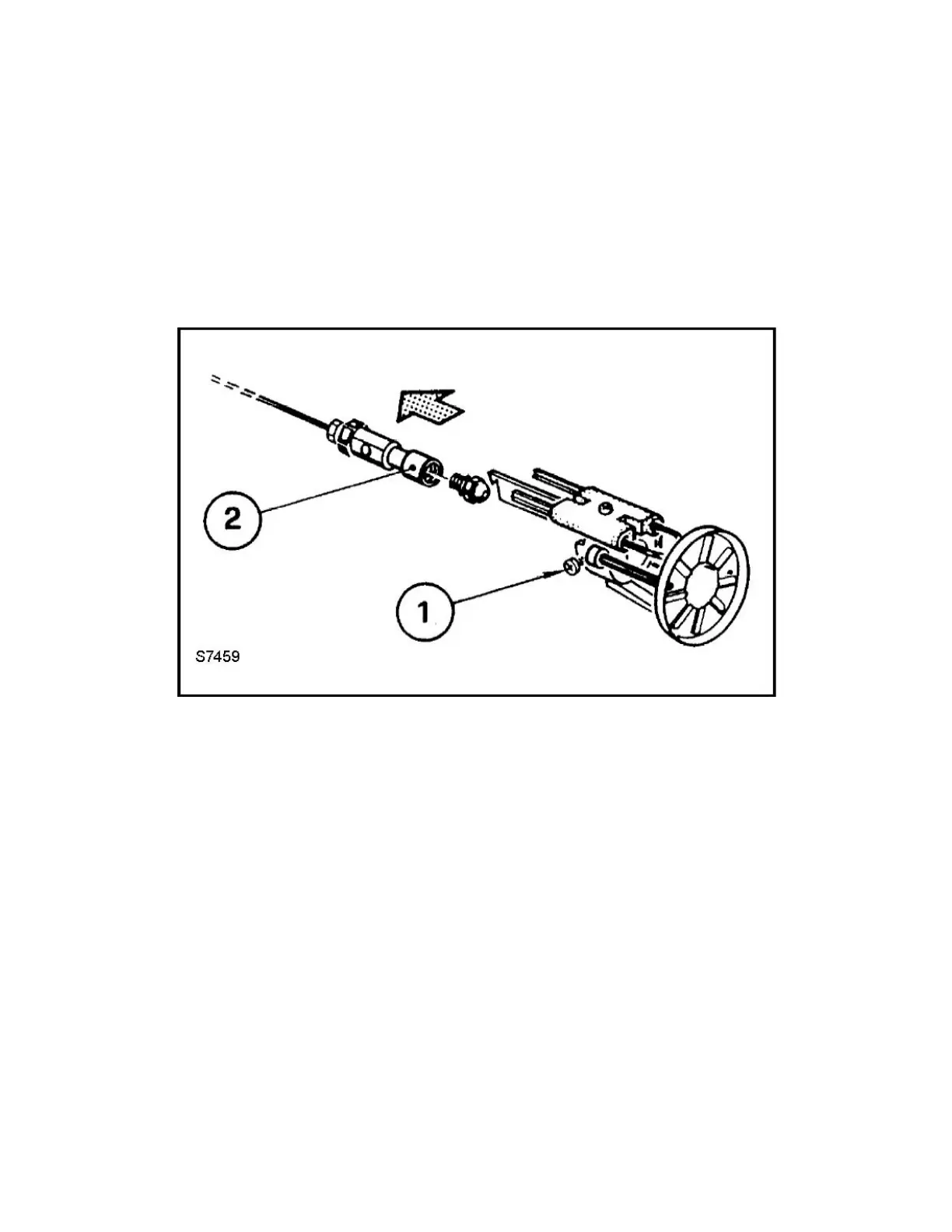

A) Remove the NOZZLE ADAPTER (2) from the DRAWER ASSEMBLY by
loosening the SCREW (1).
B) Insert the proper NOZZLE into the NOZZLE ADAPTER and tighten
securely (Do not over tighten).
C) Replace adapter, with nozzle installed, into drawer assembly and secure
with screw (1).
