SETUP PROCEDURE (HIGH ALTITUDE)
When the FVO-1000TR is required to operate over 2000 feet above sea
level there will be necessary adjustments needed to burn efficiently with
thinner air. Please review the following chart as a starting point; please
note that a combustion analyzer & smoke gun will be required to
achieve optimum set up.
ACTUAL
FIRING RATE
+/- 5%
NOZZLE
SIZE
PUMP
PRESSURE
TURBULATOR
SETTING
AIR DAMPER
SETTING
ALTITUDE
RANGE
2.11 GPH 1.75 X 60W 145 PSI 2.5 3.1 OVER
7000FT
2.41 GPH 2.00 X 60W 145 PSI 3.5 3.4 3500-6900FT
2.61 GPH 2.00 X 60W 170 PSI 5.0 4.5 0-3500FT
Please refer to the Air adjustment plate diagram on page 6, the
turbulator diagram at the bottom of this page & the nozzle replacement
diagram on page 8.
NOTE: The burners are equipped with a 2.00 X 60W nozzle, due to the
increase density of oil/diesel fuel at colder temperatures.

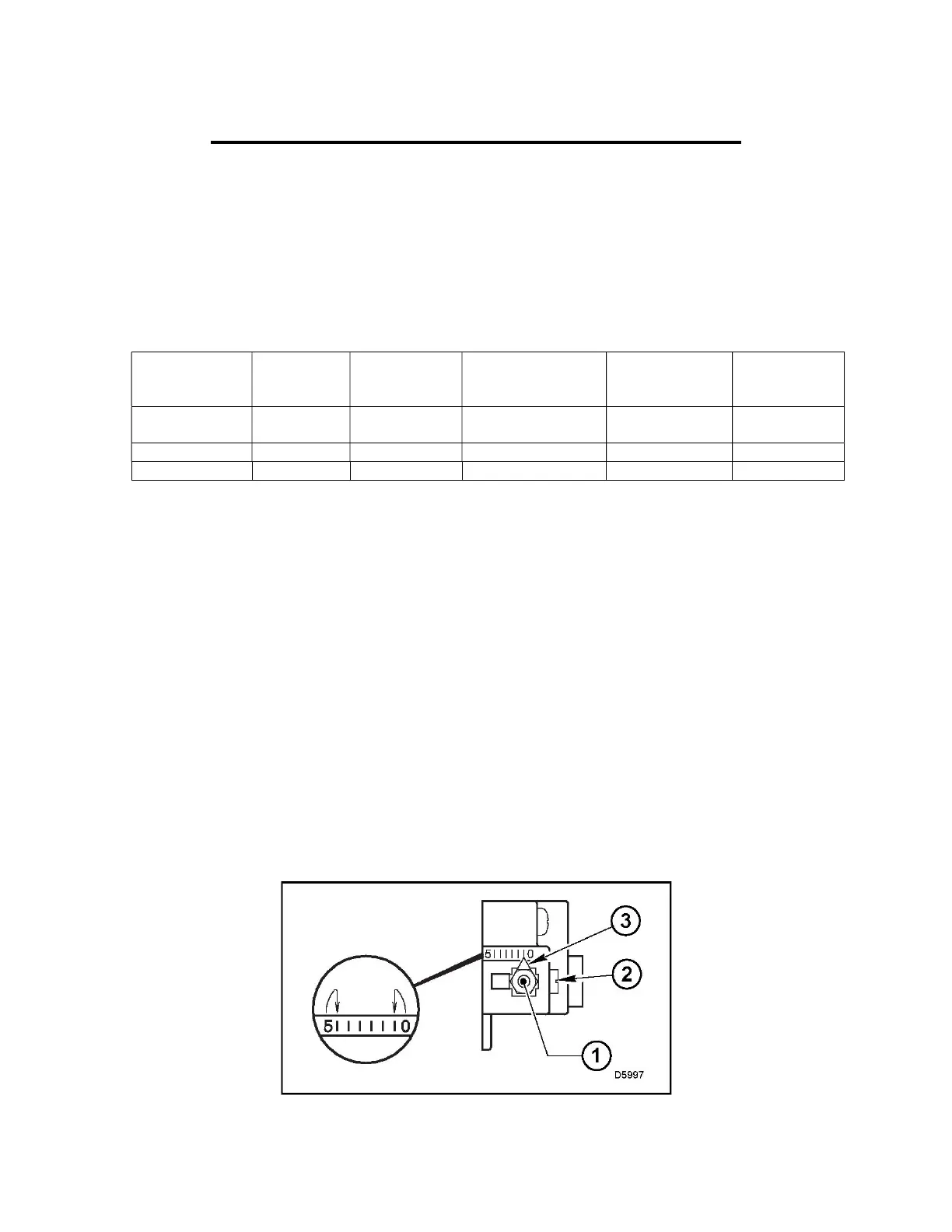

TURBULATOR SETTING
A) Loosen NUT (1), then turn SCREW (2) until the INDEX MARKER (3) is
aligned with the correct index number as per the Burner Set-up chart
above.
B) Retighten the RETAINING NUT (1)
NOTE: Zero and five are scale indicators only. From left to right, the first
line is 5 and the last line 0.
