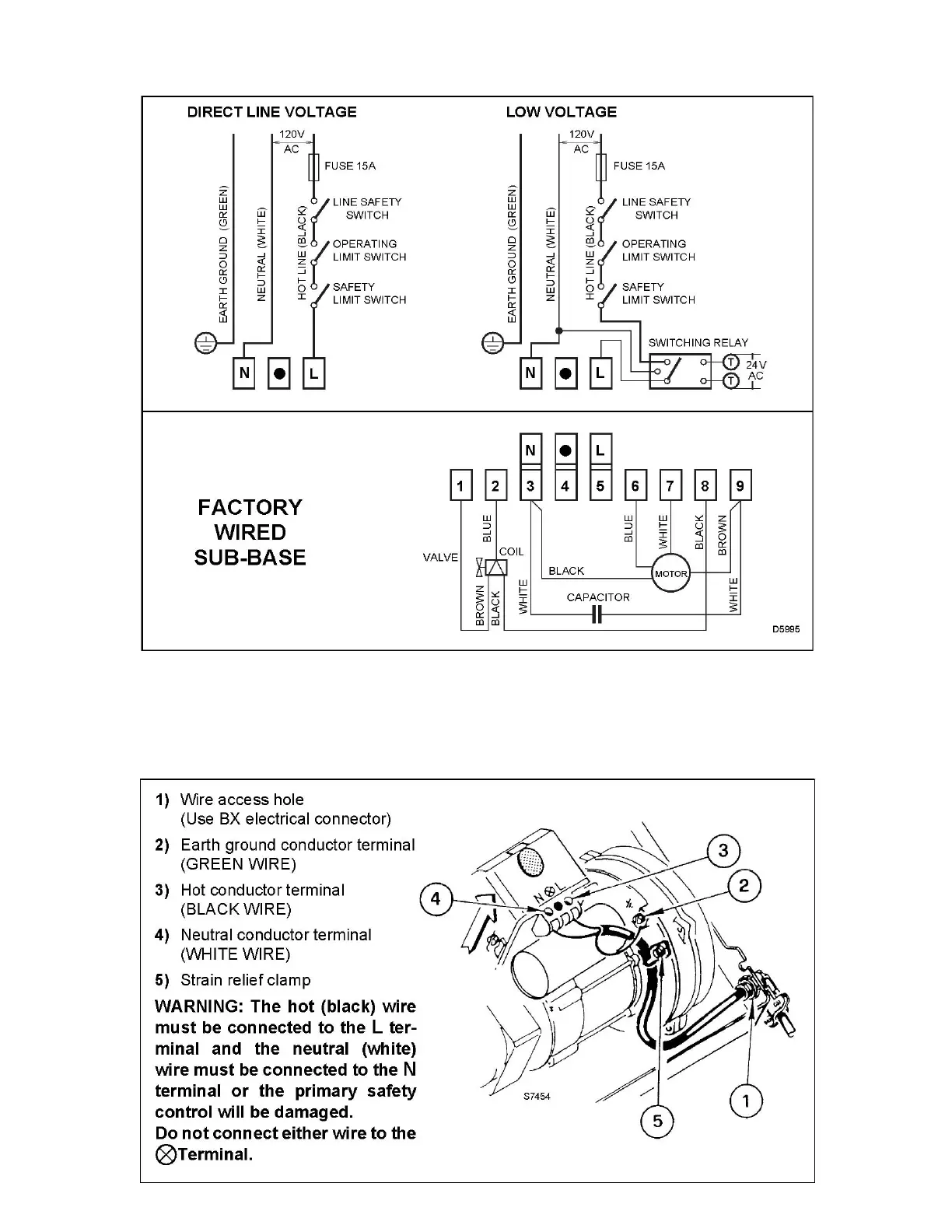

BURNER WIRING DIAGRAM
ELECTRICAL CONNECTIONS
It is advisable to leave the control box off the sub-base while completing the
electrical connections to the burner.
