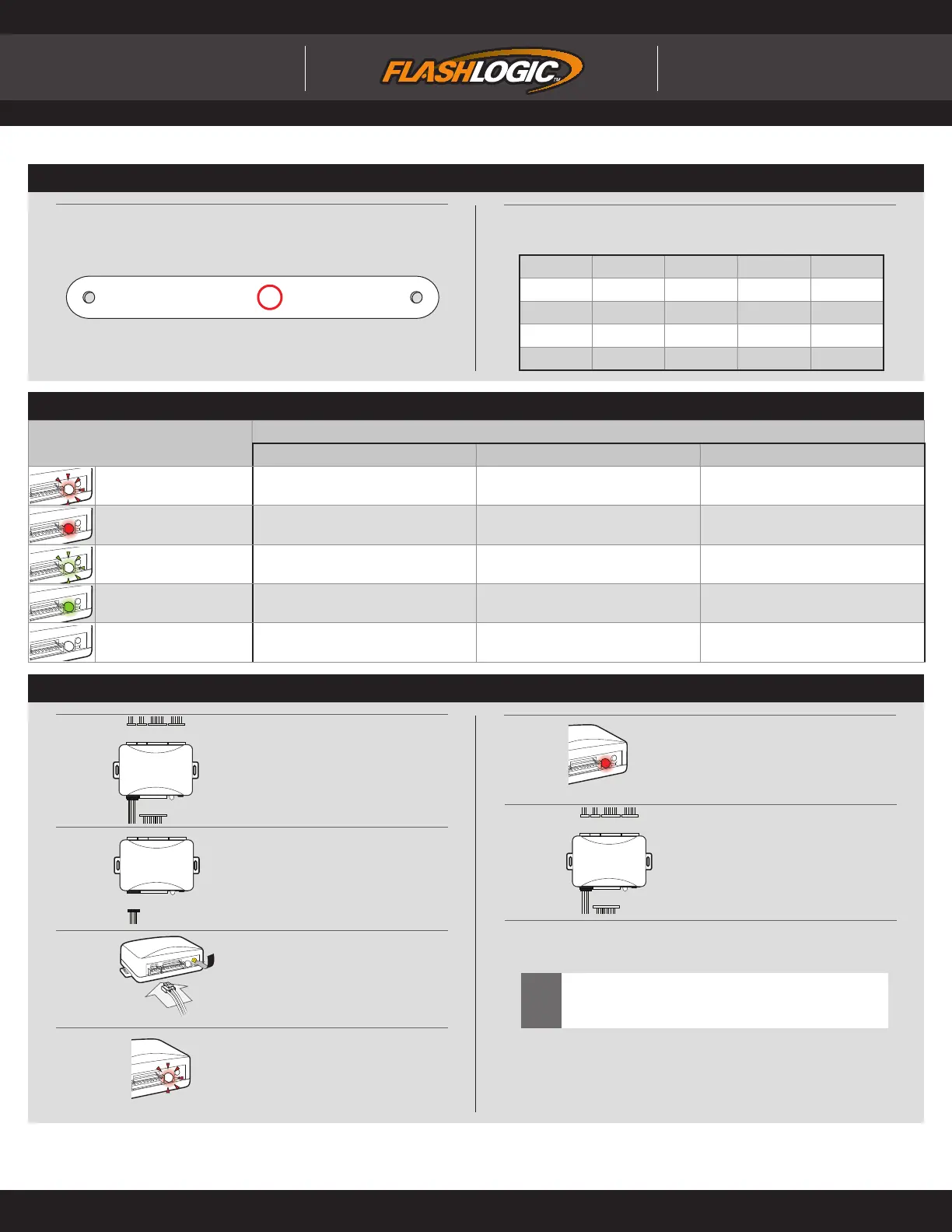

FlashLogic FLCAN - Identify Vehicle Year; Module Diagnostics; Factory Reset Procedure

XX-XX PAGE X-XCLASSIC PAGE 1-1
LED STATUS
DIAGNOSTICS
DURING PROGRAMMING DURING REMOTE START WITH IGNITION OFF
Flashing RED
Missing/wrong information from
fi rmware or vehicle
Incorrectly programmed Incorrectly programmed or connected
Solid RED Waiting for more vehicle information Incorrectly programmed
Not programmed waiting for more
vehicle information
Flashing GREEN
Additional steps required to complete
programming
Correctly programmed and
operational
False ground when running status
from remote starter
Solid GREEN then OFF Correctly programmed Reset in progress Reset in progress
OFF No activity or already programmed
Invalid ground when running status
from remote starter
At rest and ready for a remote start
sequence
MODULE DIAGNOSTICS
FACTORY RESET PROCEDURE
7
Repeat programming procedure.
!
Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
1
DISCONNECT all connectors
from module EXCEPT the black
4-PIN standard or optional data
connector.


 


6
RECONNECT all connectors.


  
2
DISCONNECT black 4-PIN
standard or optional data
connector.

4
When LED fl ashes red,
RELEASE programming button.
5
LED will turn solid red for 2
seconds.
RESET COMPLETED.
3
PRESS AND HOLD programming
button while connecting either
4-PIN standard or optional data
connector.
IDENTIFY VEHICLE YEAR
1
Locate the Vehicle Identifi cation
Number (VIN) and identify the
10th character.
2
Match the VIN’s 10th character
to its corresponding year.
L > 1990 S > 1995 Y > 2000 5 > 2005 A > 2010
M > 1991 T > 1996 1 > 2001 6 > 2006 B > 2011
N > 1992 V > 1997 2 > 2002 7 > 2007 C > 2012
P > 1993 W > 1998 3 > 2003 8 > 2008 D > 2013
R > 1994 X > 1999 4 > 2004 9 > 2009 E > 2014
4 Y 1 N53 A 5 T A L 8 D 5 R 0 X

Page 11 of 12 FLC-AL(DL)-MA2-EN 20130227
INSTALL GUIDE
WWW.FLASH-IT.COM Audiovox Electronics Corp. © 2013
ALL IN ONE
Mazda
