RE-ASSEMBLING FUEL BED AND COMMISSIONING

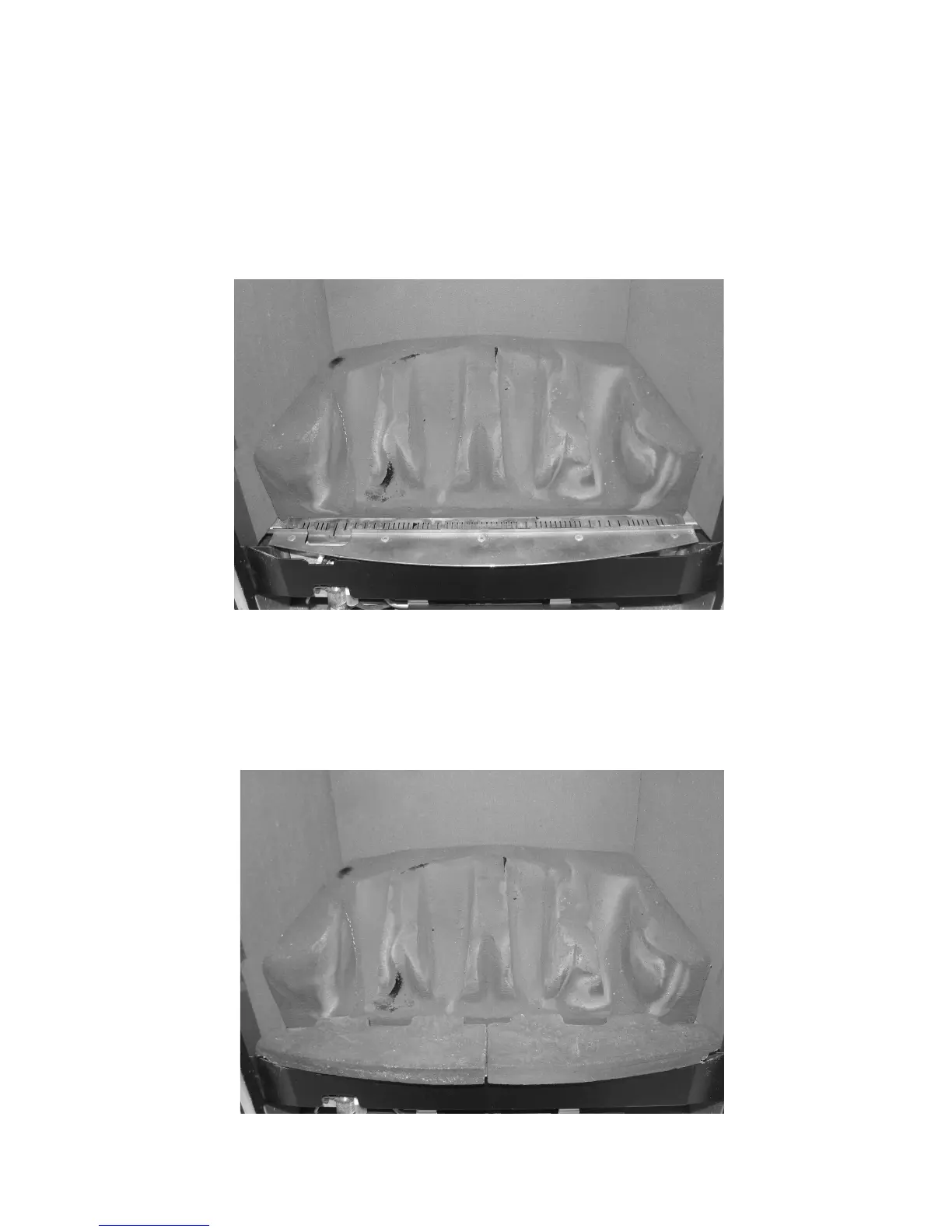

a) Place the ribbed ceramic fuelbed base on top of the fuelbed support
and pull fully forwards to the burner. Make sure that the fuelbed
base is located centrally in the fire box. Ensure that the fuelbed
base fit fully down onto the fuel bed support and is not
lodged on the burner. See fig. 3 below.
Fig. 3
b) Position the two halves of the front ceramic (L/H & R/H) on the locating
channel in the front ceramic, ensuring it is located onto the lip on the
burner front ceramic support. (See fig. 4 below)
Fig. 4
