Extinguishing the Pilot
The pilot flame can be extinguished by turning the left hand control knob clockwise
to the position marked with a circular dot. WHEN TURNING THE FIRE “OFF”
PLEASE ENSURE THAT THE CONTROL VALVE IS TURNED TO THE “OFF” POSITION
AND THE PILOT FLAME IS EXTINGUISHED. DO NOT LEAVE THE PILOT FLAME ONLY
LIT. ENSURE THE ASHPAN COVER IS COOL BEFORE REMOVING.
Lighting the Main Burner (Manually)
The right hand control knob will be in the off position, denoted by a circular dot.
No gas can enter the main burner until this control knob is turned anticlockwise.
When this knob is turned anti-clockwise, the main burner will light. The heat input
can then be adjusted to any level between maximum heat input (5.20kW) and min-
imum heat input (2.05kW).
Lighting the Main Burner (via the Touch Control)
With the pilot burner established it is possible to light the main burner and adjust
the gas rate between high and low with the touch control.
Press the “up” button to light the main burner and adjust the heat input
to the maximum setting. (5.20kW heat input). Press the “down” button to reduce
the heat input to the minimum setting (2.05kW heat input). See Fig. 2 below. If
you press and hold the “down” button it will reduce the heat input to the minimum
(3.5kW heat input) setting, if you keep the button depressed it will turn the main
burner off, at this point a clicking noise will be heard from the motor.

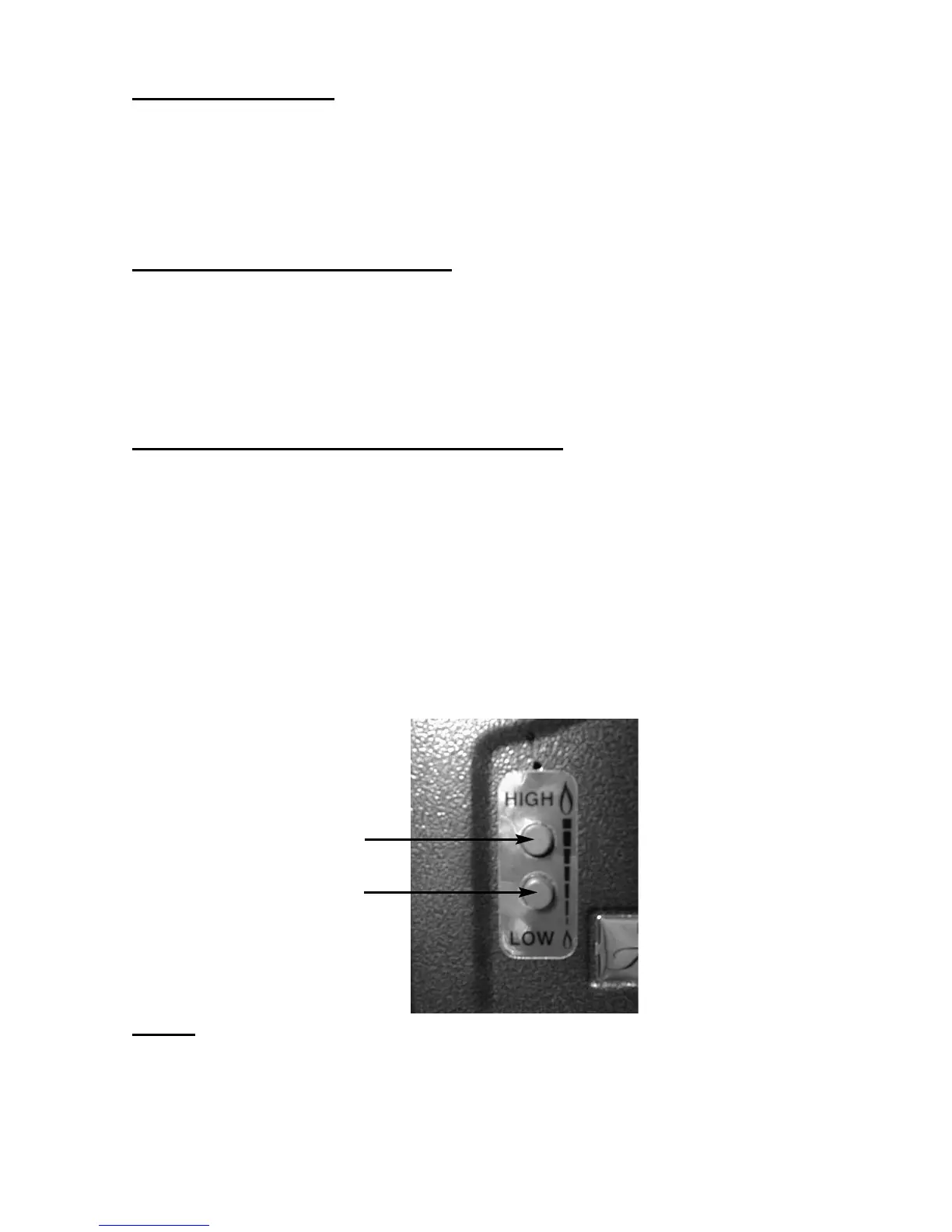

Fig. 2
NOTE :
The touch control does not light the pilot, it only lights
the main burner when the pilot flame is established and regulates
the heat input between high and low. If the touch control is
broken, the fire can still be operated manually, see previous page
for details.
5
“Up” button to increase heat
input
“Down” button to decrease
heat input or turn off main
burner
