4.2 REMOVING THE BURNER ASSEMBLY FROM THE FIRE
a) Remove the outer case as section 4.1
b) Unscrew the pilot from the pilot bracket attached to the burner. See
section 4.3
c) Unscrew injector fixing bracket. See fig. 8
d) Unscrew four burner fixing screws. See fig. 9
e) Carefully prise the injector to the right and out of the burner.
f) Carefully remove the burner.
g) Re-assemble in the reverse order.
h) Check for gas soundness.

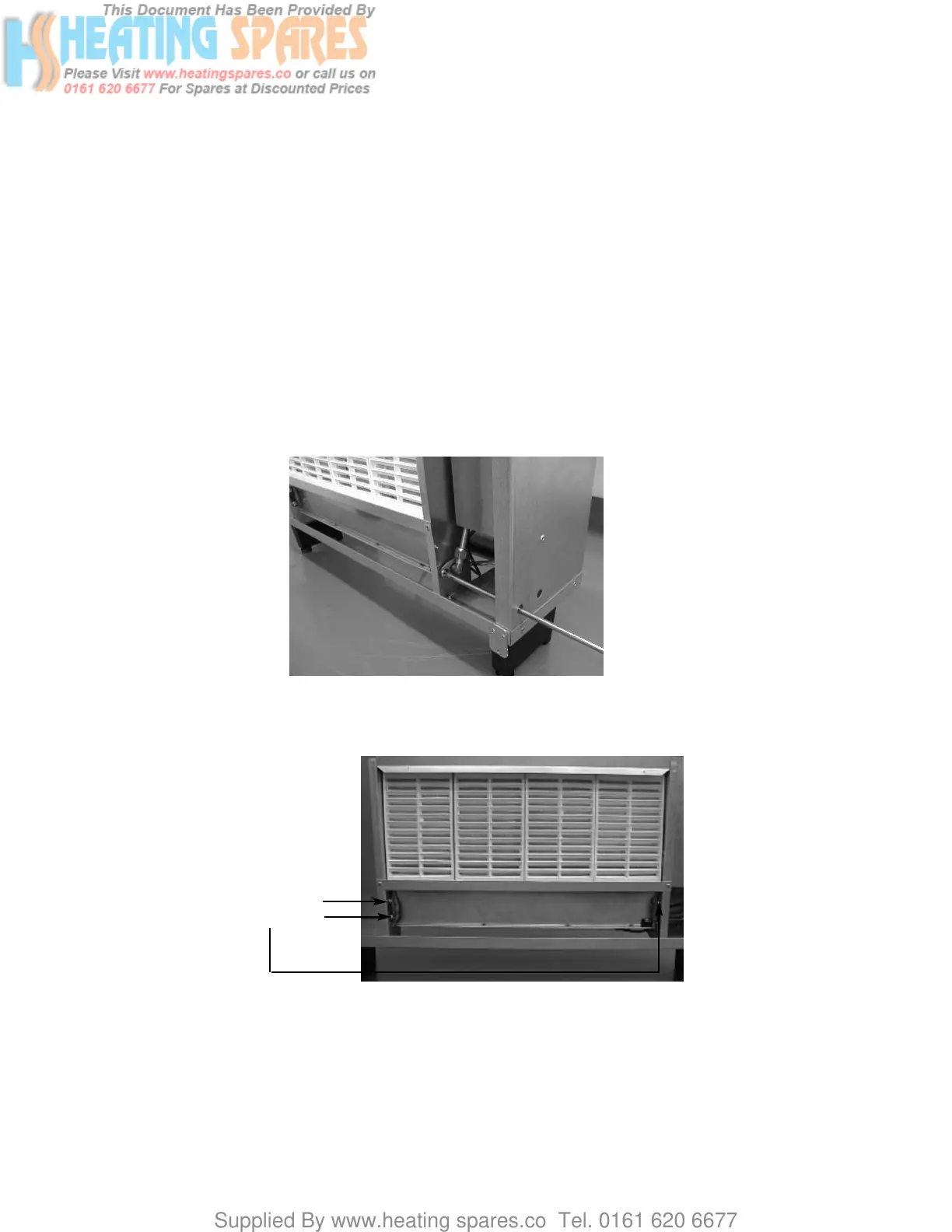

Fig. 8 Injector fixing bracket removal
Fig. 9 Burner removal
17
Position of Burner
Screws
