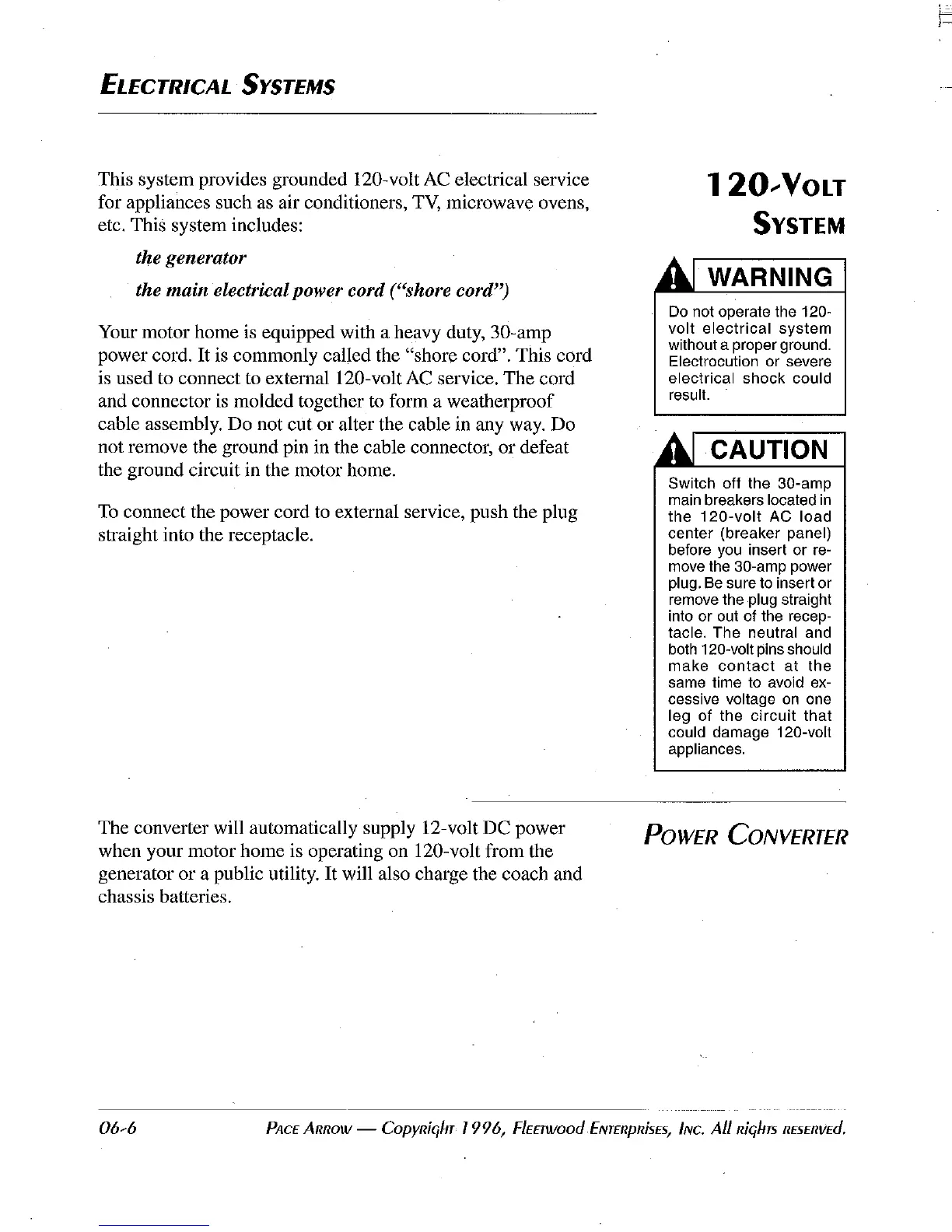

ELECTRICAL SYSTEMS
This system provides grounded 120-volt
AC
electrical service
for appliances such as air conditioners,
TV,
microwave ovens,
etc.
This system includes:
the generator
the main electrical power cord
("shore cord")
Your motor home is equipped with a heavy duty, 30-amp
power cord.
It
is commonly called the "shore cord". This cord
is used to connect to external
120-volt
AC
service. The cord
and connector is molded together to form a weatherproof
cable assembly. Do not cut
or
alter the cable in any
way.
Do
not remove the ground pin in the cable connector,
or
defeat
the ground circuit in the motor home.
To
connect the power cord to external service, push the plug
straight into the receptacle.
The converter will automatically supply 12-volt DC power
when your motor home is operating on
120-volt from the
generator
or
a public utility.
It
will also charge the coach and
chassis batteries.
120"VOLT
SYSTEM
WARNING
Do
not operate the 120-
volt
electrical
system
without a proper ground.
Electrocution or severe
electrical shock could
result.
AI"
CAUTION
Switch off the 30-amp
main breakers located
in
the
120-volt
AC load
center (breaker panel)
before you insert or
re-
move the 30-amp power
plug.
Be
sure
to
insert or
remove the
plug straight
into or out of the recep-
tacle.
The neutral and
both
120-volt pins should
make
contact
at the
same time
to
avoid
ex-
cessive voltage
on
one
leg of the circuit that
could damage 120-volt
appliances.
POWER CONVERTER
PACE
ARROW
-
CopYRiqHT
1996,
FlEETWood
ENTERPRisES,
INC.
All
RiqHTs
RESERVEd.
