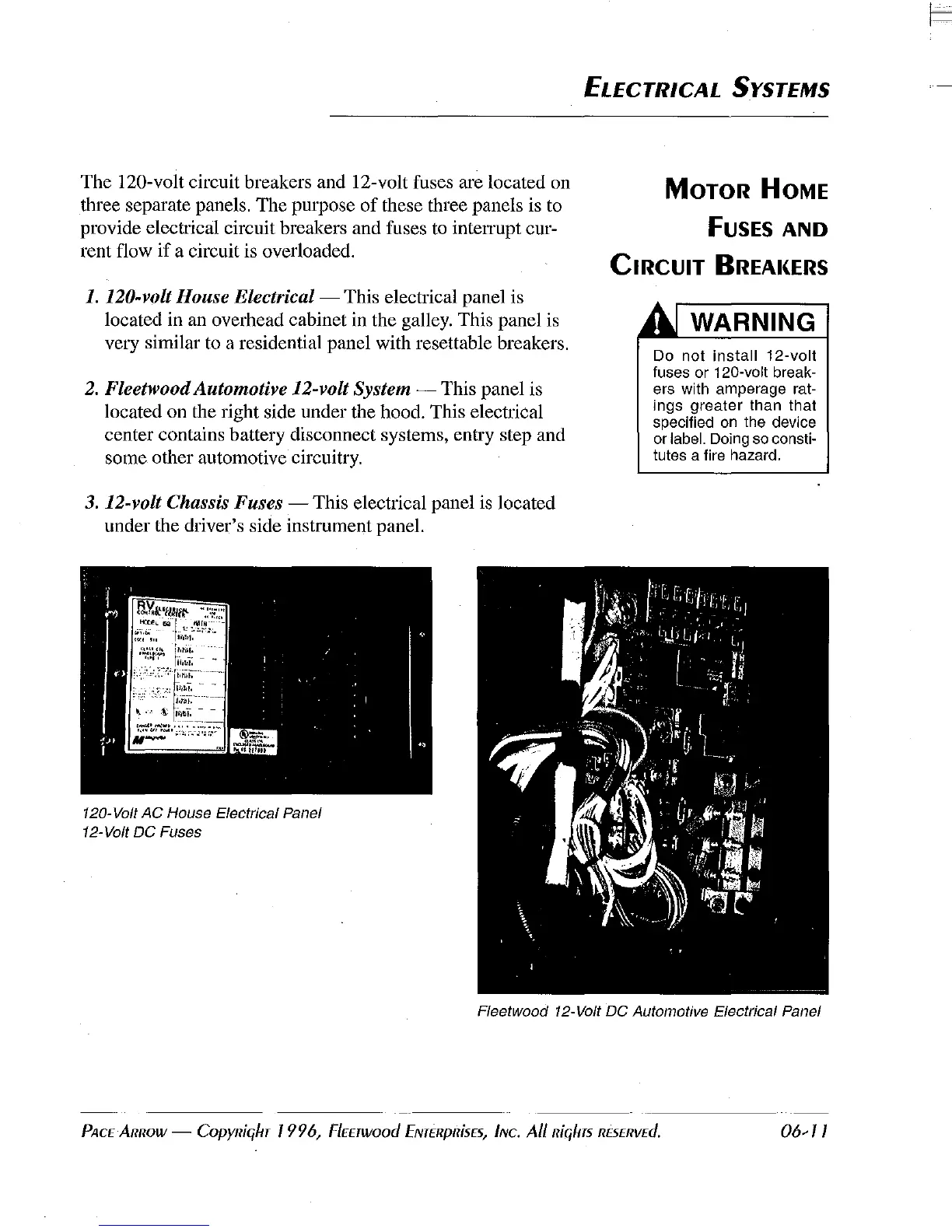

The l20-volt circuit breakers and 12-volt fuses are located on
three separate panels. The purpose
of these three panels is to
provide electrical circuit breakers and fuses to interrupt cur-
rent flow
if a circuit is overloaded.
1. 120-volt House Electrical- This electrical panel is
located in an overhead cabinet in the galley. This panel is
very similar to a residential panel with resettable breakers.
2. Fleetwood Automotive 12-volt System - This panel is
located on the right side under the hood. This electrical
center contains battery disconnect systems, entry step and
some other automotive circuitry.
3. 12-volt Chassis Fuses - This electrical panel is located
under the driver's side instrument panel.
120· Volt AC House Electrical Panel
12· Volt DC Fuses
ELECTRICAL SYSTEMS
MOTOR HOME
FUSES AND
CIRCUIT BREAI{ERS
WARNING
Do not install 12·volt
fuses or 120·volt break-
ers with amperage rat-
ings greater than that
specified
on the device
or label. Doing so consti-
tutes a fire hazard.
Fleetwood 12-Volt DC Automotive Electrical Panel
