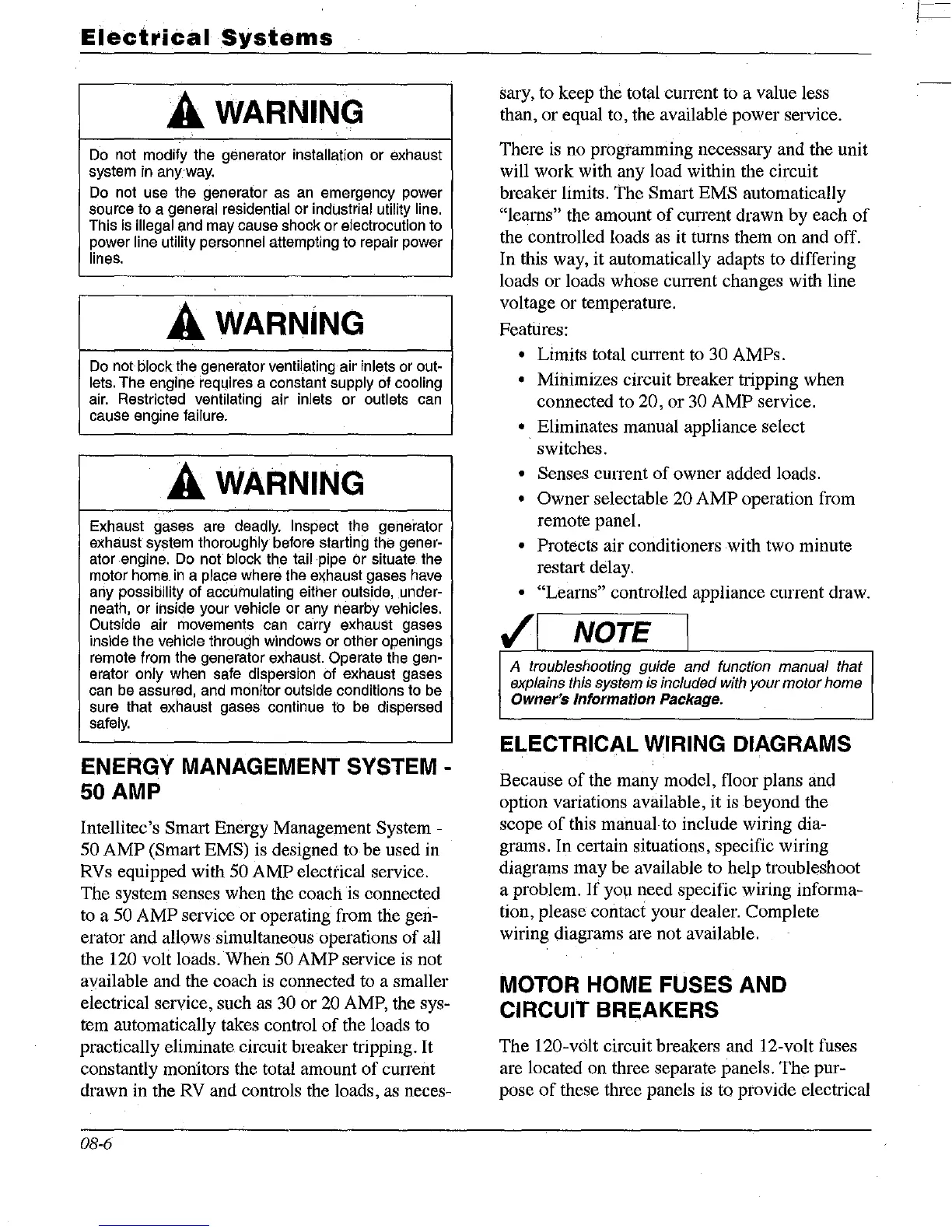

Electrical
Systems
A WARNING
Do
not modify the generator installation or exhaust
system in anyway.
Do
not use the generator
as
an
emergency power
source to a
general residential or industrial utility line.
This
is
illegal and may cause shock or electrocution to
power
line utility personnel attempting to repair power
lines.
A WARNING
Do
not block the generator ventilating air inlets or out-
lets.
The engine requires a constant supply of cooling
air.
Restricted ventilating air inlets or outlets can
cause engine failure.
.
A WARNING
Exhaust gases are deadly. Inspect the generator
exhaust system thoroughly before starting the
gener-
ator engine. Do not block the tail pipe or situate the
motor
home.
in
a place where the exhaust gases have
any possibility of accumulating either outside,
.under-
neath, or inside your vehicle or any nearby vehicles.
Outside air movements can carry exhaust gases
inside the
vehicle through windows or other openings
remote from the generator exhaust. Operate the
gen-
erator only when safe dispersion of exhaust gases
can
be
assured,
and
monitor outside conditions to
be
sure that exhaust gases continue to
be
dispersed
safely.
ENERGY MANAGEMENT SYSTEM -
50 AMP
Intellitec's Smart Energy Management System -
50 AMP (Smart EMS) is designed to be used in
RVs
equipped with 50 AMP electrical service.
The system senses when the coach is connected
to a
50 AMP service or operating from the gen-
erator and allows simultaneous operations
of
all
the
120 volt loads. When 50 AMP service
is
not
available and the coach
is
connected to a smaller
electrical service, such
as
30 or
20
AMP, the sys-
tem automatically takes control
of
the loads to
practically eliminate circuit breaker tripping.
It
constantly monitors the total amount
of
current
drawn in the
RV
and controls the loads,
as
neces-
08-6
sary, to keep the total current to a value less
than, or equal to, the available power service.
There
is
no programming necessary and the unit
will work with any load within the circuit
breaker limits.
the
Smart EMS automatically
"learns" the amount
of
current drawn by each
of
the controlled loads
as
it turns them on and off.
In this way, it automatically adapts to differing
loads or loads whose current changes with line
voltage or temperature.
Features:
• Limits total current to 30 AMPs.
•
Minimizes circuit breaker tripping when
connected to
20, or 30 AMP service.
• Eliminates manual appliance select
switches .
• Senses current
of
owner added loads.
• Owner selectable 20 AMP operation from
remote panel.
• Protects air conditioners with two minute
restart delay.
• "Lemus" controlled appliance current draw.
v'1
NOTE I
A troubleshooting guide and function manual that
explains this system is included with your motor home
Owner's Information Package.
ELECTRICAL WIRING DIAGRAMS
Because
of
the many model, floor plans and
option variations available, it is beyond the
scope
of
this manual to include wiring dia-
grams. In certain situations, specific wiring
diagrams may be available to help troubleshoot
a problem.
If
Y01l
need specific wiring informa-
tion, please contact your dealer. Complete
wiring diagrams are not available.
MOTOR HOME FUSES AND
CIRCUIT BREAKERS
The 120-vcilt circuit breakers and 12-volt fuses
are located on three separate panels. The
pur-
pose
of
