2.
3.

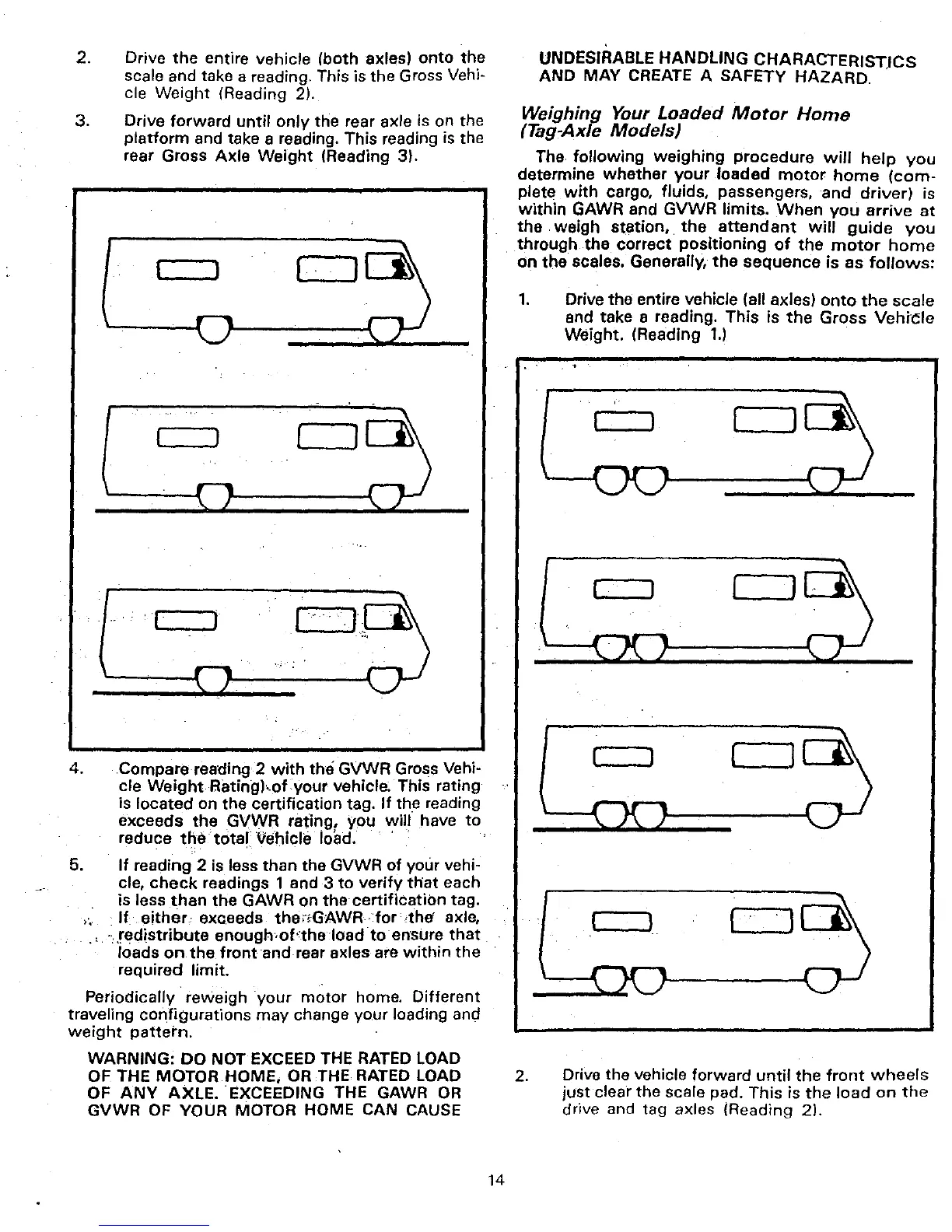

Drive the entire vehicle (both axlesl onto the
scale and take a reading. This is the Gross
Vehi-
cle Weight (Reading 21.
Drive forward until only tile rear axle is on the
platform and take a reading. This reading
is the
rear Gross Axle Weight (Reading
31.
(
'1 ,
4. .Comparereading2 with the GVWR Gross Vehi-
cle Weight Rating) •. ofyour vehicle. This rating
is located on the certification tag.
If the reading
exceeds
the GVWR rating, you will have to
reduce tile total Vehicle load.
5. If reading 2 is less than the GVWR of your vehi-
cle,
check readings 1 and 3 to verify that each
is less
than the GAWR on the certification tag.
'.
If either· exc.eeds thenGAWRfor ,the" axle,
, "
Jedistribute enough,of·theload to ensure that
loads on the front and rear axles are within the
required limit.
Periodically reweigh
'your motor home. Different
traveling configurations may change your loading and
weight pattern.
WARNING: DO NOT EXCEED THE RATED LOAD
OF
THE MOTOR HOME, OR THE RATED LOAD
OF ANY AXLE .. EXCEEDING THE GAWR OR
GVWR OF YOUR MOTOR HOME CAN CAUSE
14
UNDESIRABLE HANDLING
CHARACTERISTJCS
AND MAY CREATE A SAFETY HAZARD.
Weighing Your Loaded Motor Home
(Tag-Axle Models)
The following weighing procedure will help you
determine whether your loaded motor home (com-
plete with cargo, fluids, passengers, and driver) is
within GAWR and GVWR limits. When you arrive at
the weigh station, the attendant will guide you
through the correct positioning of the motor home
on the scales. Generally, the sequence is as follows:
1. Drive the entire vehicle (all axles) onto the scale
and take a reading. This is the Gross Vehrcle
Weight. (Reading 1.)
2.
Drive the vehicle forward until the front wheels
just clear the scale pad. This is the load on the
drive and tag axles (Reading 21.
