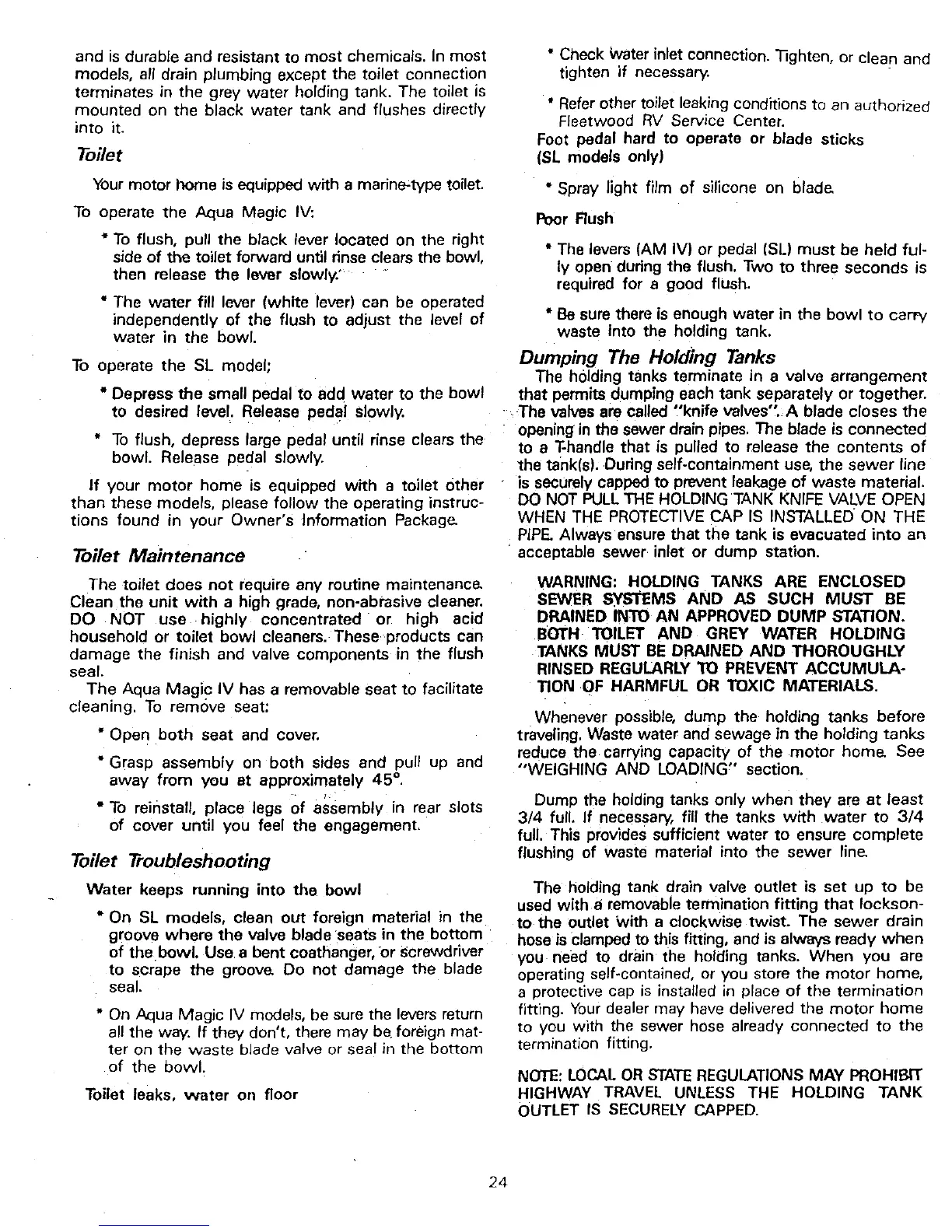

and
is
durable and resistant to
most
chemicals. In most
models, all drain plumbing except the toilet connection
terminates in the grey water holding tank. The toilet
is
mounted on the black water tank and flushes directly
into it.
Toilet
Your
motor home
is
equipped
with
a marine-type toilet
To
operate the Aqua Magic
IV:
•
To
flush, pull the black lever located on the right
side
of
the toilet forward until rinse clears the bowl,
then release
the
lever slowly:
• The water fill lever
Iwhlte
lever) can
be
operated
independently of the flush
to
adjust the level
of
water in the bowl.
To
operate the SL model;
• Depress
the
small pedal
to
add water to the bowl
to
desired level. Release pedal slowly.
•
To
flush, depress large pedal until rinse clears the
bowl. Release pedal slowly.
If
your
motor
home
is
equipped
with
a toilet other
than
these models, please follow the operating instruc-
tions found in your Owner's Information
Package.
Toilet Maintenance
The toilet does
not
require any routine maintenance.
Clean the
unit
with
a high grade, non-abrasive cleaner.
DO NOT
use
highly
concentrated'
or
high acid
household or toilet
bowl
cleaners.· These products can
damage the finish and valve components in the flush
seal.
The
Aqua Magic
IV
has a removable seat
to
facilitate
cleaning.
To
remove seat:
• Open
both
seat and cover.
• Grasp assembly on
both
sides and pull up
and
away from you at approximately 45°.
•
To
reiristall, place legs of assembly in rear slots
of cover until you feel the engagement.
Toilet Troubleshooting
Water keeps running into the
bowl
• On SL models, clean
out
foreign material in the
groove
where
the
valve blade seats in the
bottom'
of
the. bowl.
Use.
a bent coathanger, 'or screwdriver
to
scrape
the
groove. Do
not
damage the blade
seal.
•
On
Aqua Magic IV models,
be
sure
the
levers
return
all
the way. If they don't, there may
be.
foreign mat-
ter on the waste blade valve or seal in the bottorn
of
the bowl.
Toilet
leaks,
water
on floor
• Check
Water
inlet connection. Tighten, or clean and
tighten
if
necessary. .
•
Refer
other toilet leaking conditions to
an
authorized
Fleetwood
RV
Service Center.
Foot pedal hard to operate or blade sticks
ISL models only)
• Spray light film
of
silicone on blade.
Poor
Rush
•
The
levers
lAM
IV) or pedal ISL)
must
be held ful-
ly open during the flush. Two
to
three seconds is
required for a good flush.
•
Be
sure there
is
enough water in the
bOWl
to
carry
waste
Into the holding tank.
Dumping The Holding Tanks
The holding tanks terminate in a valve arrangement
that
permits dumping each tank separately or together.
. The valves
are
called
"knife
valves". A blade closes
the
opening
in
the sewer drain
pipes.
The blade
is
connected
to a
T-handle
that
is pulled to release the contents
of
the tankls). During self-containment
use,
the sewer line
is
securely capped
to
prevent leakage
of
waste material.
DO
NOT
PULL
THE
HOLDING
TANK
KNIFE
VALVE
OPEN
WHEN
THE
PROTECTIVE
CAP
IS
INSTALLED ON THE
PIPE.
Always ensure that
the
tank is evacuated
into
an
. acceptable sewer inlet
or
dump station.
WARNING:
HOLDING TANKS ARE ENCLOSED
SEWER
SVSTEMS
AND AS SUCH
MUST
BE
DRAINED
INTO
AN
APPROVED
DUMP STATION.
BOTH
10ILET AND
GREY
WATER
HOLDING
TANKS
MUST
BE
DRAINED AND THOROUGHLY
RINSED
REGULARLY
10
PREVENT ACCUMULA-
nON
OF
HARMFUL
OR
lOXIC
MATERIALS.
Whenever possible, dump the holding tanks before
traveling. Waste water and sewage in the holding tanks
reduce the carrying capacity of the
motor
home. See
"WEIGHING
AND LOADING" section.
Dump the holding tanks only when they are
at
least
3/4
full. If necessary, fill the tanks
with
water
to
3/4
full. This provides sufficient water
to
ensure complete
flushing of
waste material into the sewer
line.
The holding tank drain valve outlet is set up
to
be
used with
a removable termination fitting
that
locks on-
to
the outlet with a clockwise
twist.
The sewer drain
hose
is clamped to this fitting,
and
is
always ready
when
you need to drain the holding tanks. When you are
operating self-contained, or you store the
motor
home,
a protective cap
is
installed in place
of
the termination
fitting.
Your
dealer may
have
delivered the
motor
home
to
you with the sewer hose already connected
to
the
termination fitting.
NOTE:
LOCAL
OR
STATE
REGULATIONS
MAY PROHIBIT
HIGHWAY
TRAVEL
UNLESS
THE
HOLDING TANK
OUTlET
IS
SECURELY
CAPPED.
24
