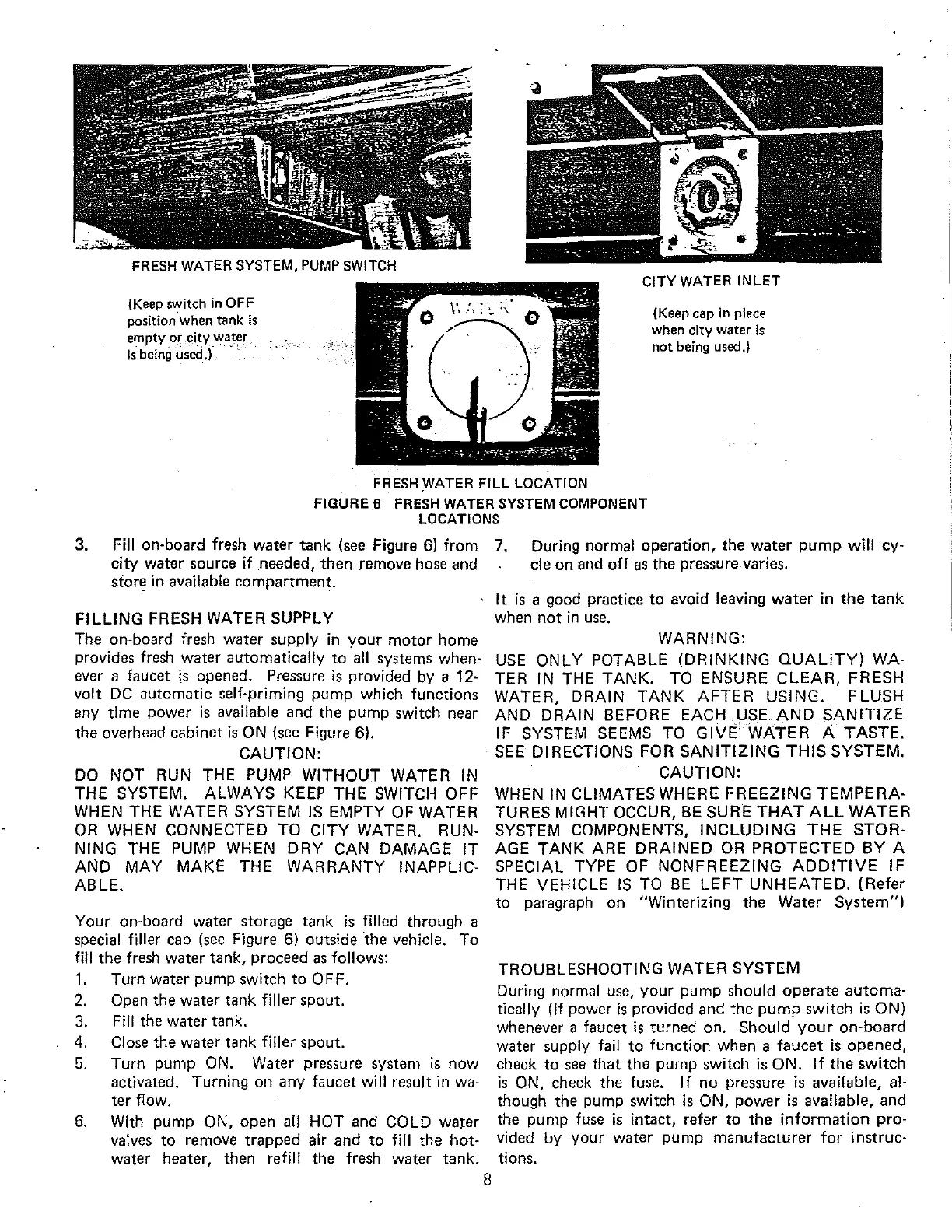

FRESH WATER SYSTEM,
PUMP
SWITCH
(Keep switch in OFF
position'when tank
is
empty or city water
Is
being used.) ....
CITY
WATER
INLET
(Keep cap in place
when city water
is
not being used.)
FRESH WATER
FILL
LOCATION
FIGURE
6 FRESH WATER SYSTEM COMPONENT
LOCATIONS
3.
Fill
on·board
fresh
water
tank
(see Figure 6) from 7.
city
water
source if
needed,
then
remove hose
and
During normal
operation,
the
water
pump
will
cy·
cle
on
and
off
as
the
pressure varies.
store
in available
compartment.
FILLING FRESH WATER SUPPLY
The
on·board
fresh
water
supply
in
your
motor
home
provides fresh
water
automatically
to
all systems
when·
ever a faucet
i.s
opened.
Pressure
is
provided by a
12·
volt
DC
automatic
self·priming
pump
which functions
any
time
power
is
available
and
the
pump
switch near
the
overhead
cabinet
is
ON (see Figure 6).
CAUTION:
DO
NOT RUN THE PUMP WITHOUT WATER
IN
THE
SYSTEM. ALWAYS KEEP
THE
SWITCH
OFF
WHEN THE WATER SYSTEM
IS
EMPTY OF WATER
OR WHEN CONNECTED TO CITY WATER. RUN·
NING
THE PUMP WHEN DRY CAN DAMAGE IT
AND
MAY
MAKE
THE
WARRANTY INAPPLlC·
ABLE.
Your
on·board
water storage
tank
is
filled through a
special
filler cap (see Figure 6)
outside
the
vehicle.
To
fill
the
fresh
water
tank,
proceed
as
follows:
1.
Turn
water
pump
switch
to
OFF.
2. Open
the
water
tank
filler
spout.
3.
Fill
the
water
tank.
4. Close
the
water
tank
filler
spout.
5.
Turn
pump
ON. Water pressure system
is
now
activated. Turning
on
any
faucet will result in wa·
ter
flow.
6. With
pump
ON,
open
all HOT
and
COLD
water
valves
to
remove
trapped
air
and
to
fill
the
hot·
water heater,
then
refill
the
fresh
water
tank.
S
It
is
a good practice
to
avoid leaving
water
in
the
tank
when
not
in
use.
WARNING:
USE
ONLY POTABLE (DRINKING
QUALITY)
WA-
TER
IN
THE TANK. TO ENSURE
CLEAR,
FRESH
WATER, DRAIN TANK
AFTER
USING.
FLUSH
AND DRAIN BEFORE EACH USE
AND
SANITIZE
IF
SYSTEM SEEMS TO GIVE WATER A
TASTE.
SEE DIRECTIONS FOR
SANITIZING
THIS
SYSTEM.
CAUTION:
WHEN
IN
CLIMATES WHERE
FREEZING
TEMPERA-
TURES
MIGHT OCCUR,
BE
SURE
THAT
ALL
WATER
SYSTEM COMPONENTS, INCLUDING
THE
STOR·
AGE TANK ARE DRAINED OR
PROTECTED
BY A
SPECIAL TYPE
OF
NONFREEZING
ADDITIVE
IF
THE VEHICLE
IS
TO
BE
LEFT
UNHEATED.
(Refer
to
paragraph
on
"Winterizing
the
Water
System")
TROUBLESHOOTING WATER SYSTEM
During normal use,
your
pump
should
operate
automa·
tically (if power
is
provided
and
the
pump
switch
is ON)
whenever a faucet
is
turned
on.
Should
your
on·board
water supply fail
to
function
when
a
faucet
is
opened,
check
to
see
that
the
pump
switch is
ON.
If
the
switch
is
ON, check
the
fuse.
If
no
pressure is available, al·
though
the
pump switch
is
ON,
power
is
available,
and
the
pump
fuse
is
intact, refer
to
the
information
pro·
vided
by
your
water
pump
manufacturer
for
instruc·
tions.
