1. GreY·Water Holding
Tank
2. Grey·Water Knife Valve
3.
Drain·
Line Y . Fitting
4. Drain Cap
5. Body·Waste Knife Valve
6. Bodv·Waste Holding Tank

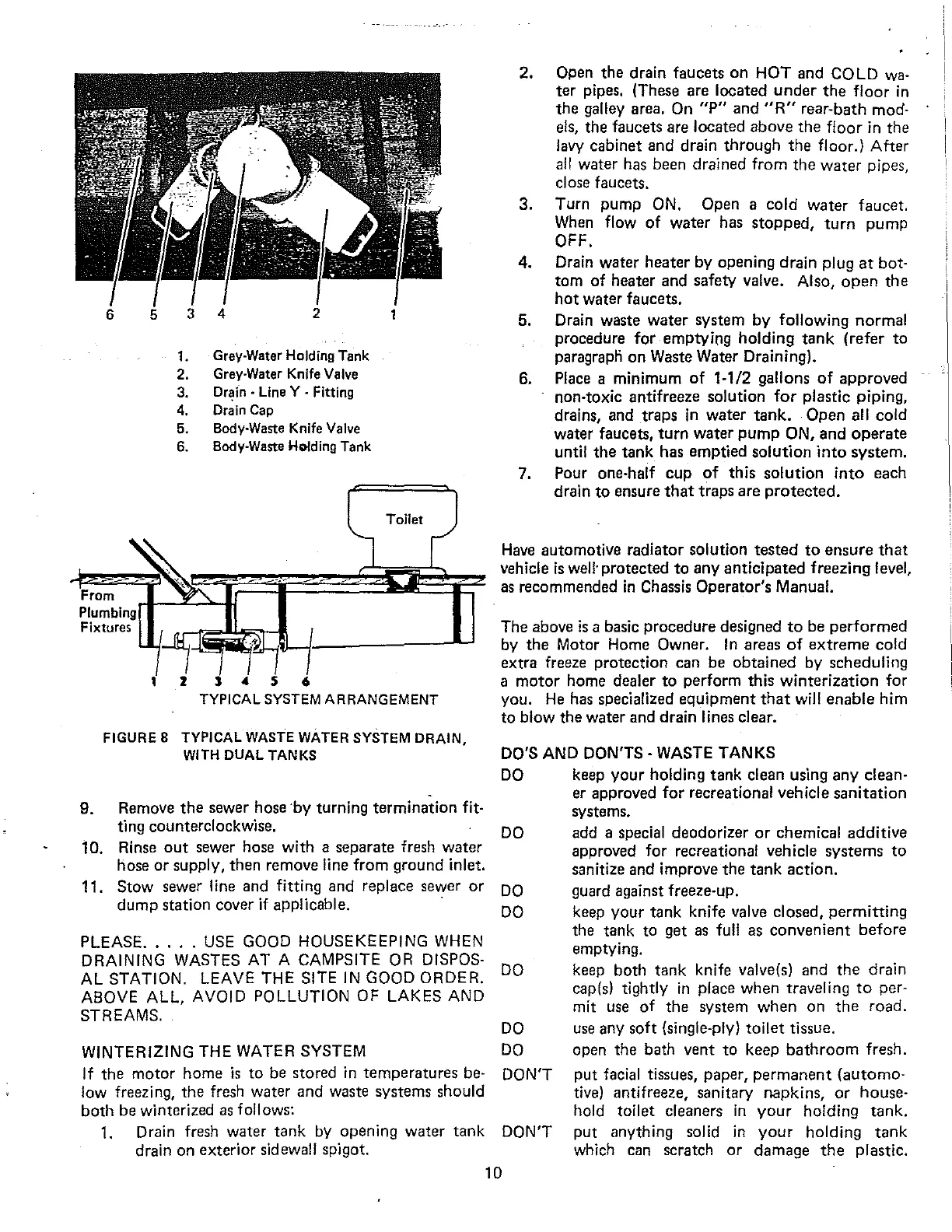

TYPICAL SYSTEM ARRANGEMENT
FIGURE 8 TYPICAL
WASTE
WATER SYSTEM
DRAIN,
WITH
DUAL TANKS
-
9. Remove
the
sewer hose
'by
turning termination fit·
ting counterclockwise.
10. Rinse
out
sewer hose with a separate fresh water
hose
or
supply, then remove line from ground inlet.
11. Stow sewer line and fitting and replace sewer
or
dump
station cover
if
applicable.
PLEASE
.....
USE
GOOD HOUSEKEEPING WHEN
DRAINING WASTES AT A CAMPSITE OR DISPOS-
AL STATION. LEAVE THE SITE
IN
GOOD ORDER.
ABOVE
ALL, AVOID POLLUTION OF LAKES AND
STREAMS.
WINTERIZING
THE WATER SYSTEM
If
the
motor home
is
to
be stored
in
temperatures be-
low freezing,
the
fresh water and waste systems should
both be winterized
as
follows:
1. Drain fresh water
tank
by
opening water
tank
drain on exterior sidewall spigot.
2.
Open
the
drain faucets on HOT and CO
LD
wa-
ter
pipes. (These are located
under
the
floor
in
the
galley area. On
"P"
and"
R"
rear-bath mod-
els,
the
faucets are located above
the
floor
in
the
lavy cabinet and drain through
the
flooL)
After
all
water has been drained from
the
water
pipes,
close faucets.
3.
Turn pump ON. Open a cold
water
faucet.
When flow
of
water has
stopped,
turn
pump
OFF.
4. Drain water heater by opening drain plug
at
bot-
tom of heater and safety valve. Also,
open
the
hot
water faucets.
5. Drain waste
water
system
by
following normal
procedure
for
emptying holding
tank
(refer
to
paragrapli
on
Waste Water Draining).
6.
Place a minimum
of
1-1/2 gallons
of
approved
non-toxic antifreeze solution
for
plastic piping,
drains, and traps in water
tank.
Open all cold
water faucets,
turn
water
pump
ON,
and
operate
until
the
tank
has emptied solution
into
system.
7.
Pour one-half
cup
of
this
solution
into
each
drain
to
ensure
that
traps are
protected.
Have
automotive radiator solution
tested
to
ensure
that
vehicle
is
well' protected
to
any anticipated freezing level,
as
recommended
in
Chassis Operator's Manual.
The above
is
a basic procedure designed
to
be
performed
by
the
Motor Home Owner.
In
areas
of
extreme
cold
extra freeze protection can be
obtained
by scheduling
a
motor
home dealer
to
perform this
winterization
for
you.
He
has specialized
equipment
that
will
enable
him
to blow the water and drain lines clear.
DO'S AND DON'TS - WASTE TANKS
DO
DO
DO
DO
DO
DO
DO
DON'T
DON'T
10
keep
your
holding
tank
clean using any clean-
er approved
for
recreational vehicle
sanitation
systems.
add a special deodorizer
or
chemical additive
approved for recreational vehicle
systems
to
sanitize and improve
the
tank
action.
guard against freeze·up.
keep your
tank
knife valve closed,
permitting
the tank to get
as
full as
convenient
before
emptying.
keep both
tank
knife valve(s) and
the
drain
cap(s) tightly
in
place when traveling
to
per-
mit use
of
the
system when on
the
road.
use
any
soft
(single-ply)
toilet
tissue.
open
the
bath vent
to
keep
bathroom
fresh.
put facial tissues, paper,
permanent
(automo-
tive) antifreeze, sanitary napkins,
or
house-
hold toilet cleaners
in
your
holding
tank.
put anything solid
in
your
holding
tank
which can scratch
or
damage
the
plastic.
