Fleetwood Pace Arrow Owner's Guide

8. Main Fuel Tank
9. Storage Compartment
10.
Roof Vents
11. Chassis· Mounted LPG Tank
12. Water Heater
Service
13. Refrigerator Service
14. Waste Water Connection· Knife Valve
(below)
15. City Water Connection (below)
16. 25 ft. 115-volt AC Power Cord Storage
23_ Engine Service Panels
24_
Tail, Stop, Turn and Emergency
Flasher Lights
25_
Back-up Lights
26_
Storage Compartment or Optional
Power Plant
27_ Ladder and Storage Rack
1. Running Lights
2. Service Lights
3. Roof Air Conditioner (OPtional)
4. Auxiliary Fuel Tank
.-~-~-------
~ .-=-----::::;::-~--==.::..:.=:::-..:::::';- ..
5. Fresh Water Tank Fill
19
6. Fresh Water Tank Drain
7.
Furnace Vent
11 12 13 14 15 16 1718
24
17_ Drain Hose Storage Tube (below)
18. Storage Compartment
19_ Running Lights
20. Front Engine Service Door
21. Headlights.
22. Parking, Turn Signal and Emergency
Flasher Lights
r .-
I
FlRCI!
26

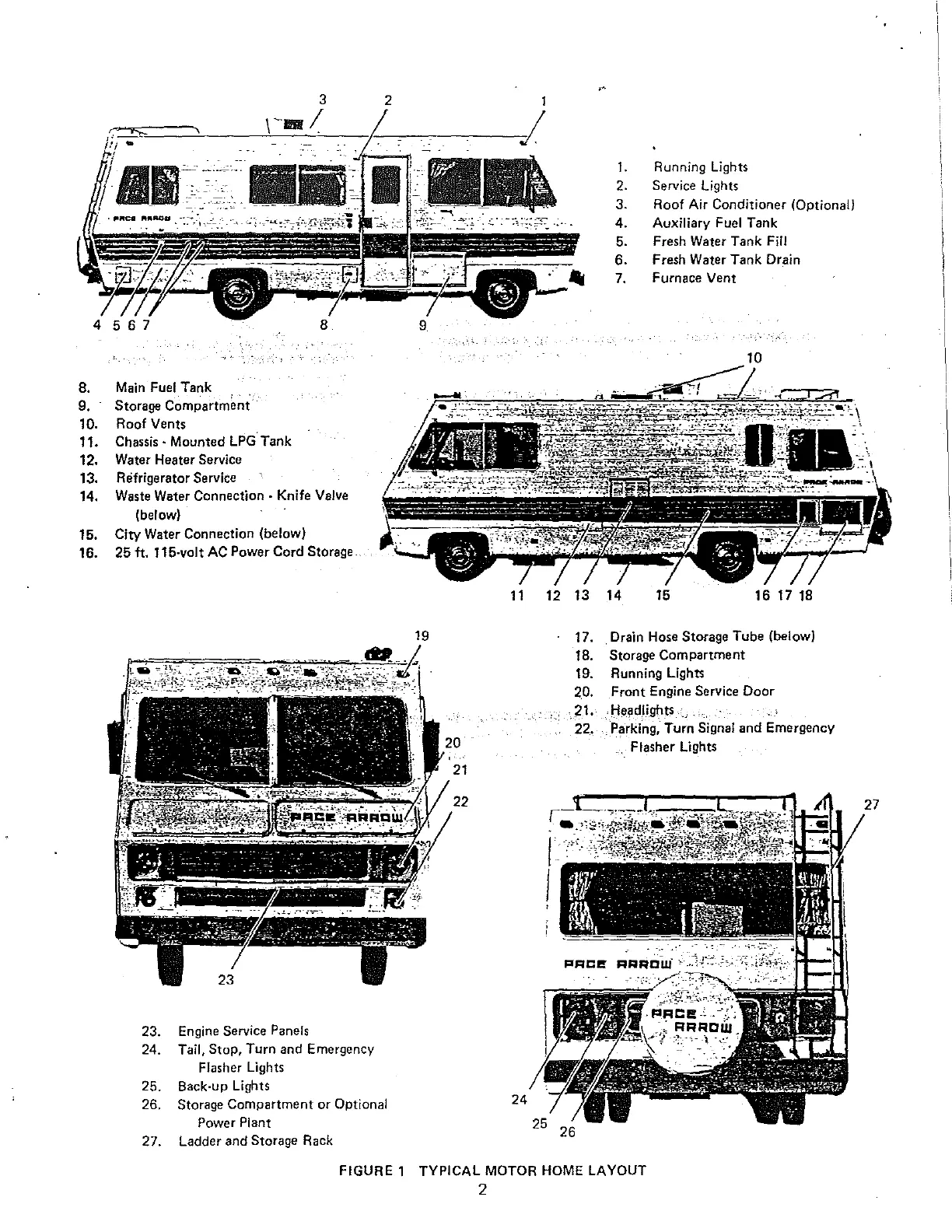

FIGURE 1 TYPICAL MOTOR HOME LAYOUT
2
27

Fleetwood Pace Arrow Specifications

General

Transmission	Automatic
Fuel Type	Gasoline
Slide-outs	3
Fresh Water Capacity	100 gallons
Width	102 inches
Sleeping Capacity	6-8 people
Black Water Capacity	40 gallons
