Flex DD 2G 18.0-EC User Manual

DD 2G 18.0-EC / PD 2G 18.0-EC / IW 1/2" 18.0-EC / ID 1/4" 18.0-EC
23

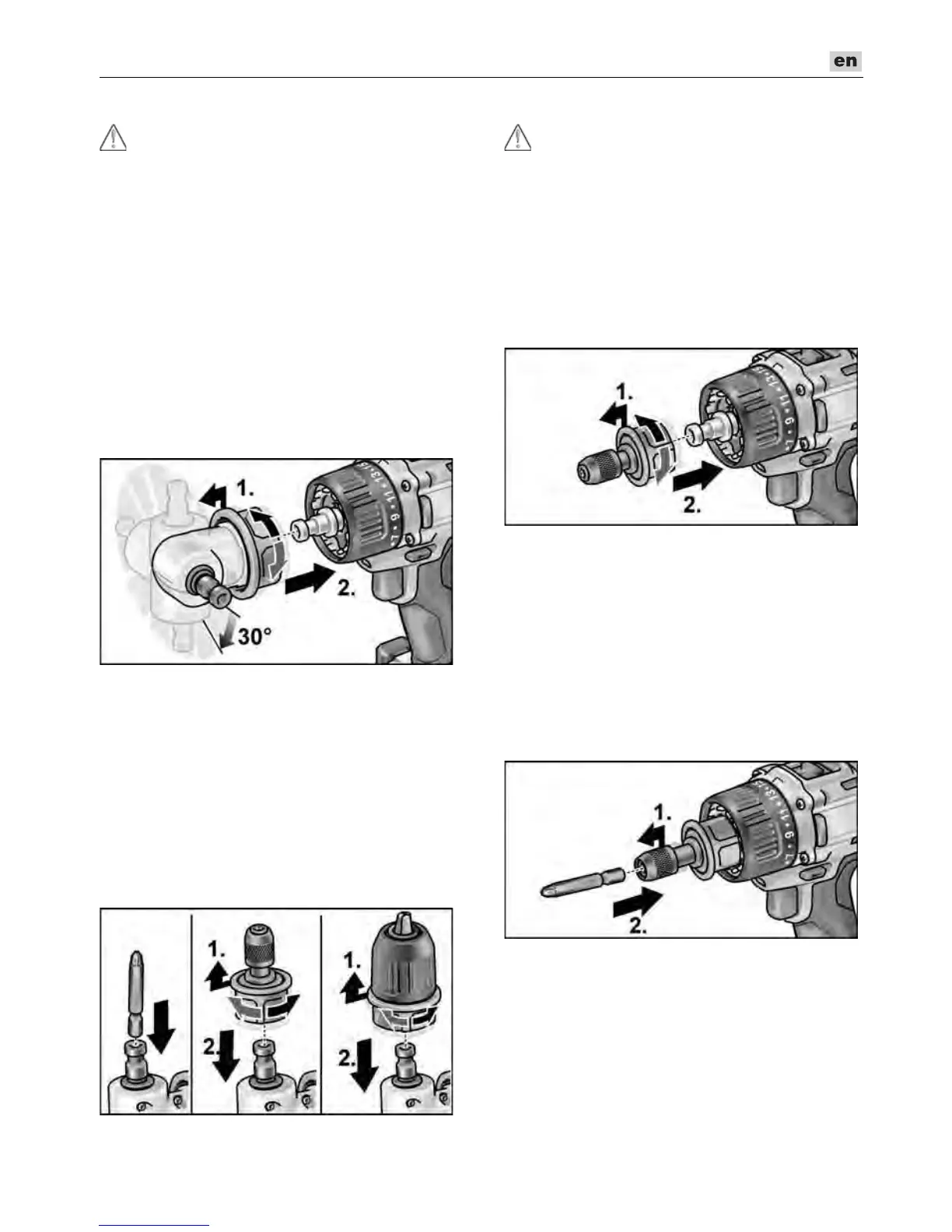

Angle attachment WV 18.0-EC
CAUTION!
Before carrying out any work on the power
tool, move the direction preselector switch (2)
to the middle position.
The angle attachment facilitates working in
places which are difficult to access.
The angle attachment can be locked in
different 30° angular positions.
Assemble
 Pull unlocking ring forwards (1.) and
press angle attachment all the way onto
the tool holder (2.).
 Lock angle attachment in the required
angular position.
 Release unlocking ring. Check that the
attachment is locked in position.
Disassemble
 Pull unlocking ring forwards and remove
angle attachment.
Inserting the tools
The angle attachment has a ½" tool holder.
Screwdriver bits and bit holders are
securely held in the tool holder.
The keyless chuck (see “Changeable drill
chuck BF 18.0-EC”) or the bit holder (see
“Bit holder attachment BV 18.0-EC”) can be
mounted on the angle attachment.
Bit holder attachment BV 18.0-EC
CAUTION!
Before carrying out any work on the power
tool, move the direction preselector switch (2)
to the middle position.
Assemble
 Pull unlocking ring forwards (1.) and
press bit holder attachment all the way
onto the tool holder (2.).
 Release unlocking ring. Check that the bit
holder attachment is locked in position.
Disassemble
 Pull unlocking ring forwards and remove
bit holder attachment.
Inserting the tools
The bit holder attachment has a ½" tool
holder. Screw-driver bits are securely held
in the tool holder.
 Pull tool lock forwards (1.) and press in
the tool all the way (2.).
 Release tool lock.
 To remove the tool, pull tool lock
backwards.
