L 1506 VR, LG 1704 VR
58

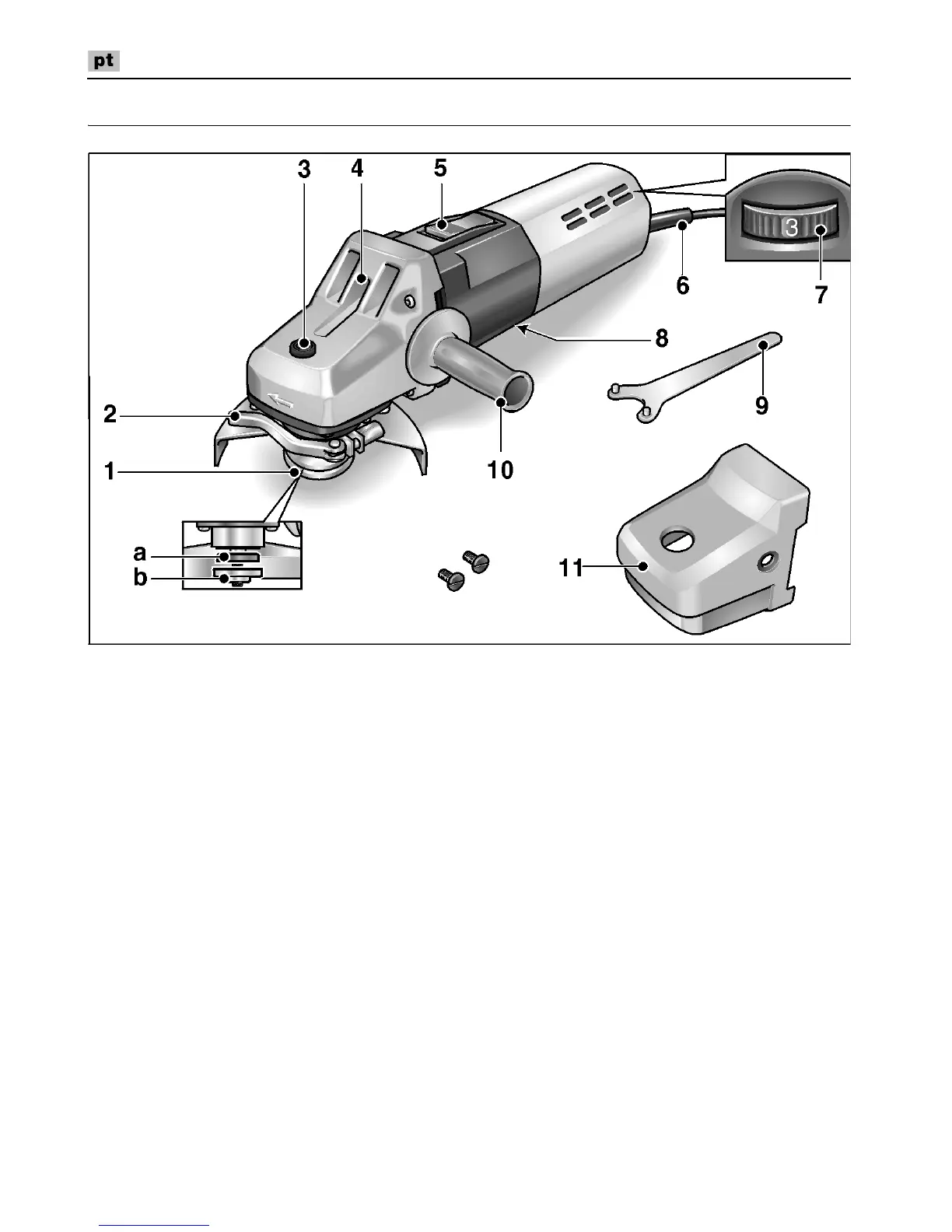

Panorâmica da máquina
1 Veio de trabalho com flange
roscado
a flange de aperto
b porca de aperto
2 Resguardo de fixação rápida
(só para L 1506 VR)
3 Bloqueio do veio
Para fixação do veio na mudança
da ferramenta.
4 Cabeça de engrenagem
Com saída de ar e seta indicadora
do sentido das rotações.
5 Interruptor basculante
Para ligar e desligar.
Com posição de fecho para
funcionamento contínuo.
6 Cabo de rede com 4,0 m e com
ficha de ligação à rede.
7 Volante de ajuste para prévia
selecção das rotações
8 Chapa de características
9 Chave de retenção
10 Punho
11 Cobertura do punho
