PE 14-2 150, PE 14-1 180
13

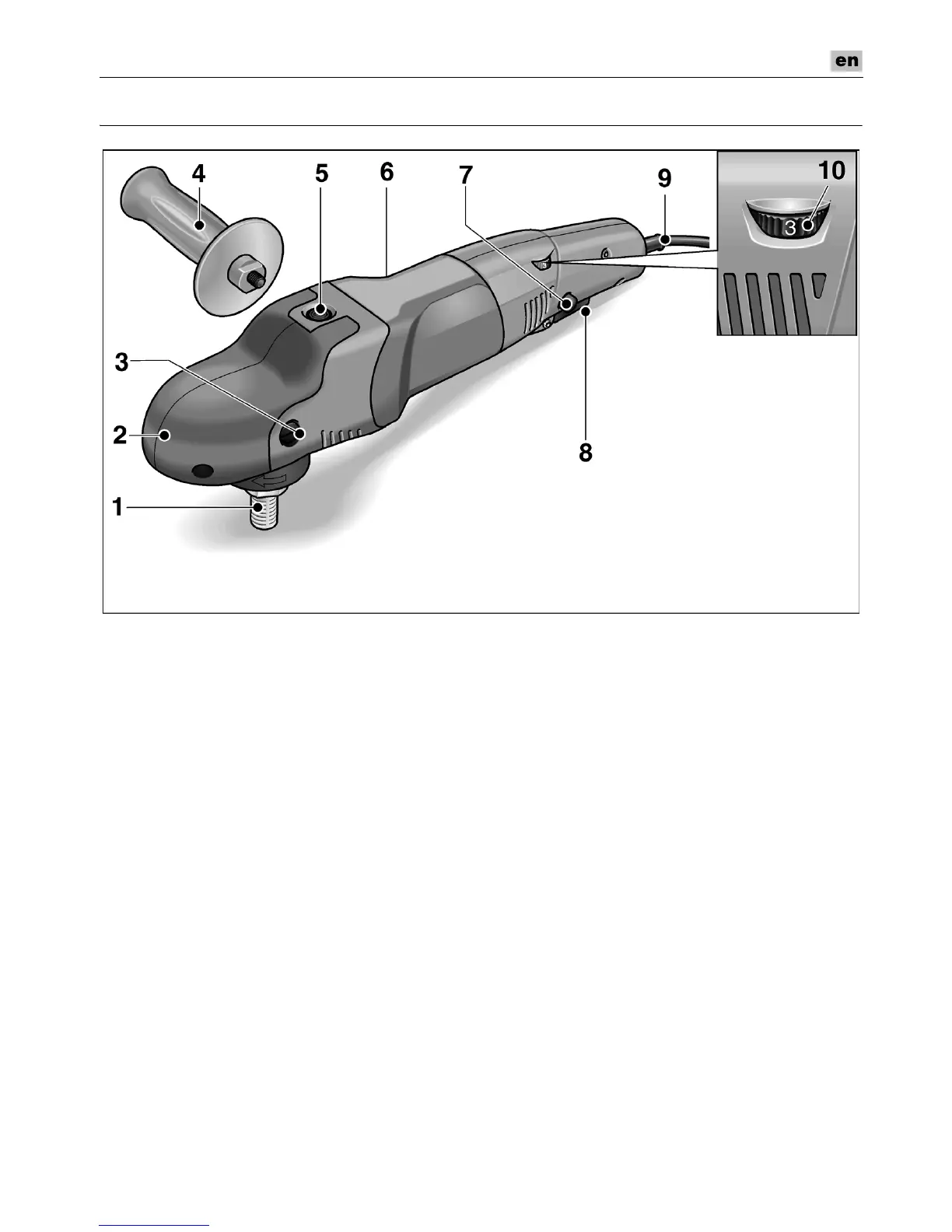

Overview
1Spindle
2 Gear head with handle cover
With air outlet and direction-of-rotation
arrow.
3 Fastening screw for handle cover
4Handle
5Spindle lock
Secures the spindle when the tool
is changed.
6 Rating plate
7 Locking button
Locks the switch during continuous
operation.
8Switch
Switches the power tool on and off and
also accelerates it up to the preselected
speed.
9 4.0 m power cord with plug
10 Dial for preselecting the speed
