PE 150 18-EC
17

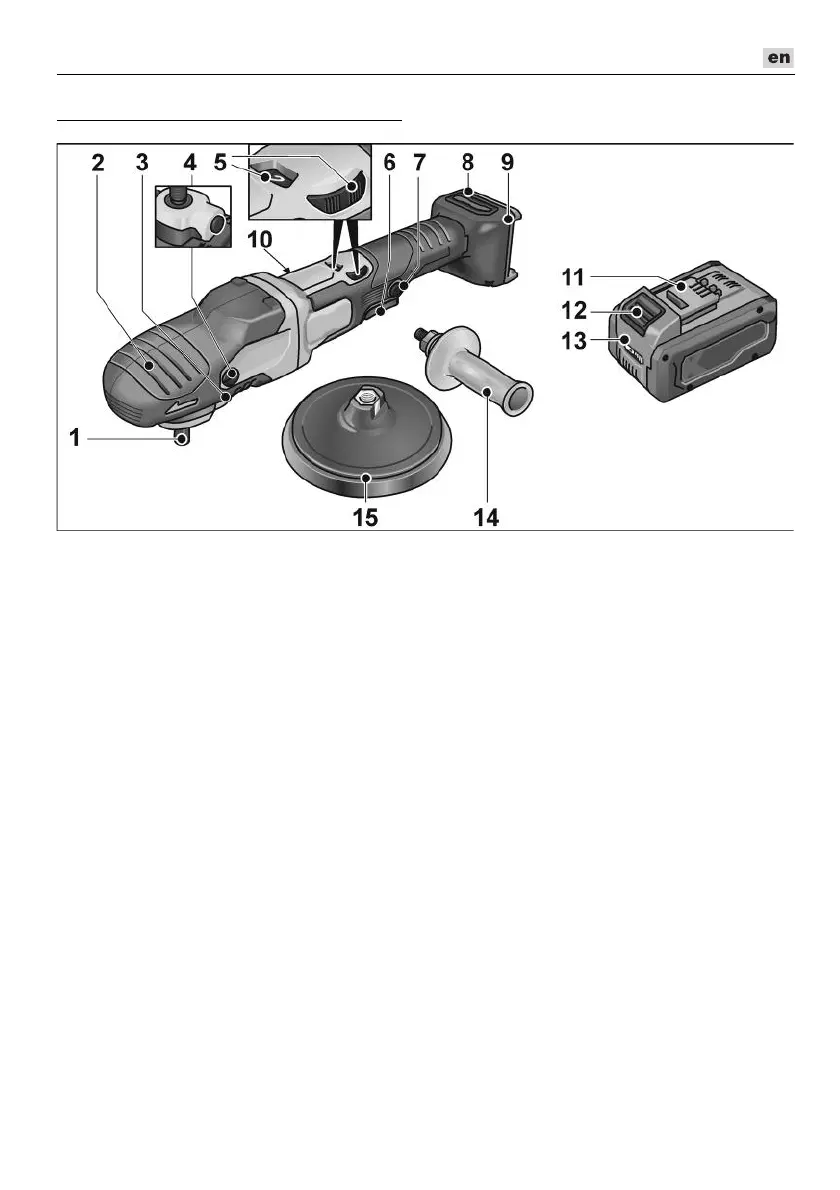

Overview
1 Spindle
2 Gear head with handle cover
With air outlet and direction-of-rotation
arrow.
3 Spindle lock
Secures the spindle when the tool
is changed.
4 Fastening screw for handle cover
5 Dial for preselecting the speed
6Switch
Switches the power tool on and off and
also accelerates it up to the
preselected speed.
7 Locking button
Locks the switch (6) during continuous
operation.
8 Filter cover
9 Slot for battery
10 Rating plate
11 Li-ion battery (2.5 Ah/5.0 Ah/8.0 Ah)
12 Release button for battery
13 State of charge indicator
14 Handle
15 Velcro plate (tool holder)
