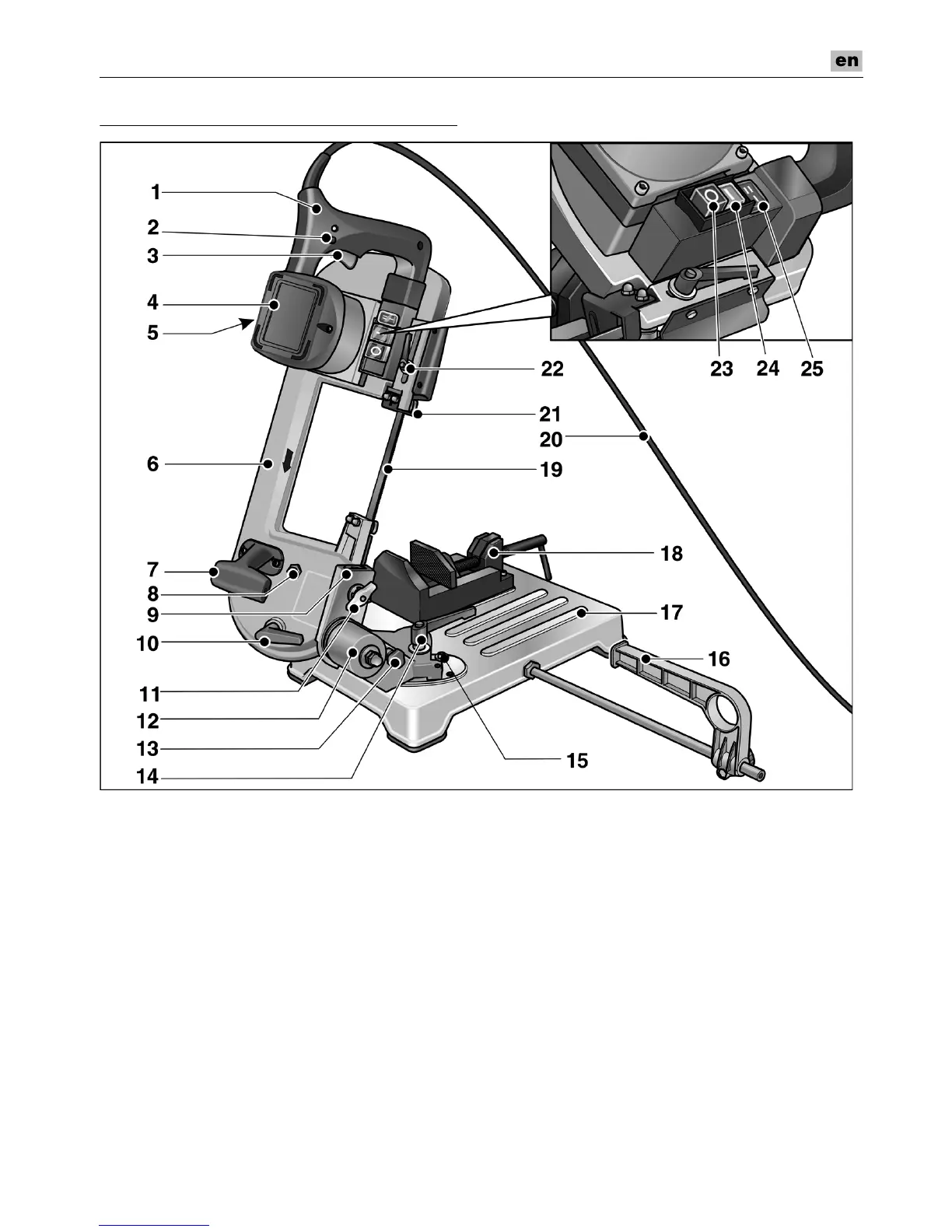

Overview
1Handle
2 Locking button
3Switch
4 Motor
5 Rating plate
6Saw frame
7 Carrying handle
8 Screw for adjusting the saw band
9 Dovetail guide
10 Tension lever (saw band tension)
11 Wing nut
12 Swivel support
13 Locking pin for saw frame
14 Clamping lever (swivel support)
15 End stops for swivel support
16 Parallel stop
17 Machine table
18 Machine vice
19 Saw band
20 Power cord
21 Saw band guide, adjustable
22 Clamping lever (saw band guide)
23 Main switch “Off/0”
24 Main switch “On/I”
25 Selector switch for cutting speed
