XFE 7-15 125 / XFE 7-15 150 / XCE 10-8 125
17

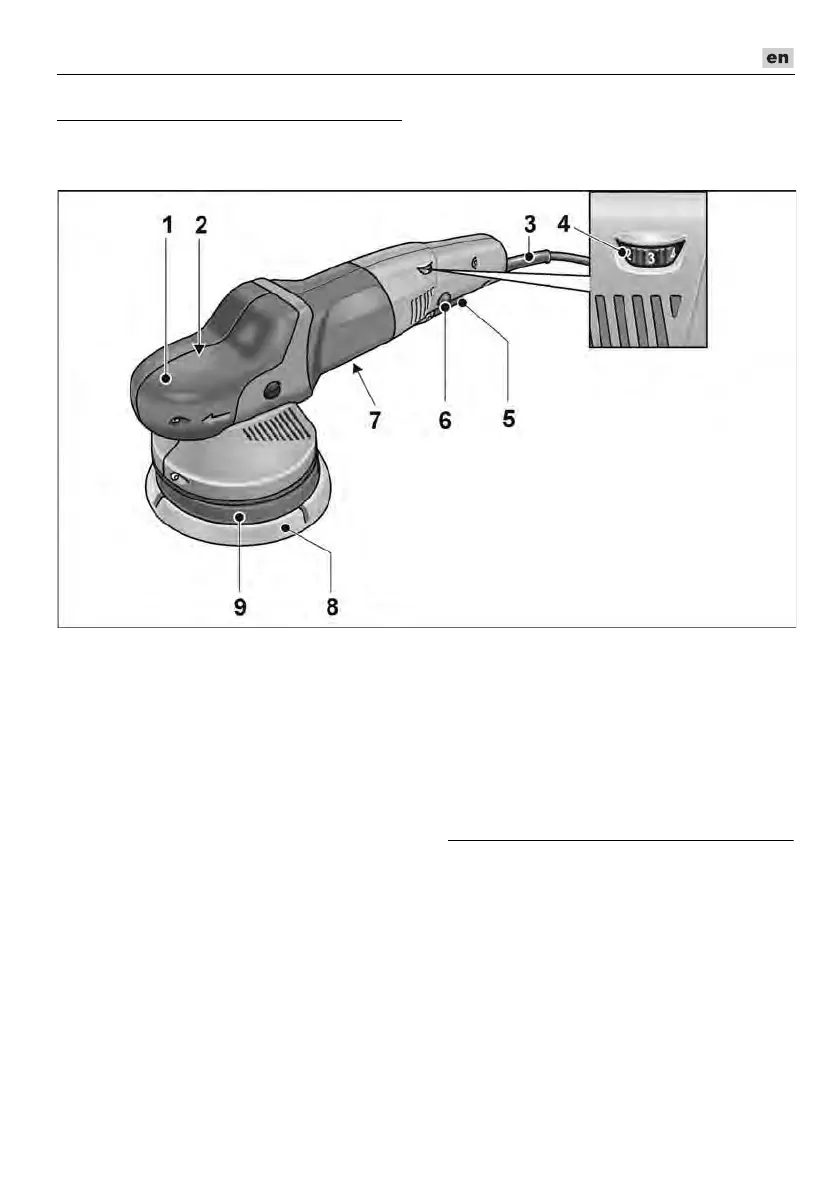

Overview
Different electric power tools are described in these instructions.
The illustrated electric power tool may differ in detail from the one which you purchased.
1 Grip hood
With air outlet and direction-of-rotation
arrow.
2 Gear head *
3 4.0 m power cord with plug
4 Dial for preselecting the speed
5Switch
Switches the power tool on and off and
also accelerates it up to the
preselected speed.
6 Locking button
Locks the switch (5) during continuous
operation.
7 Rating plate *
8 Velcro pad
9 Disc support
Torx wrench T20 *
* not illustrated
