Use of the multi-position head
FlexArm models GH-18 that are equipped with a multi-position head.
The multi-positional head allows taping in additional positions. This kind of
tapping doesn't guarantee the perfect thread but will provide a good tapping
quality.
PRESS RED
LEVER

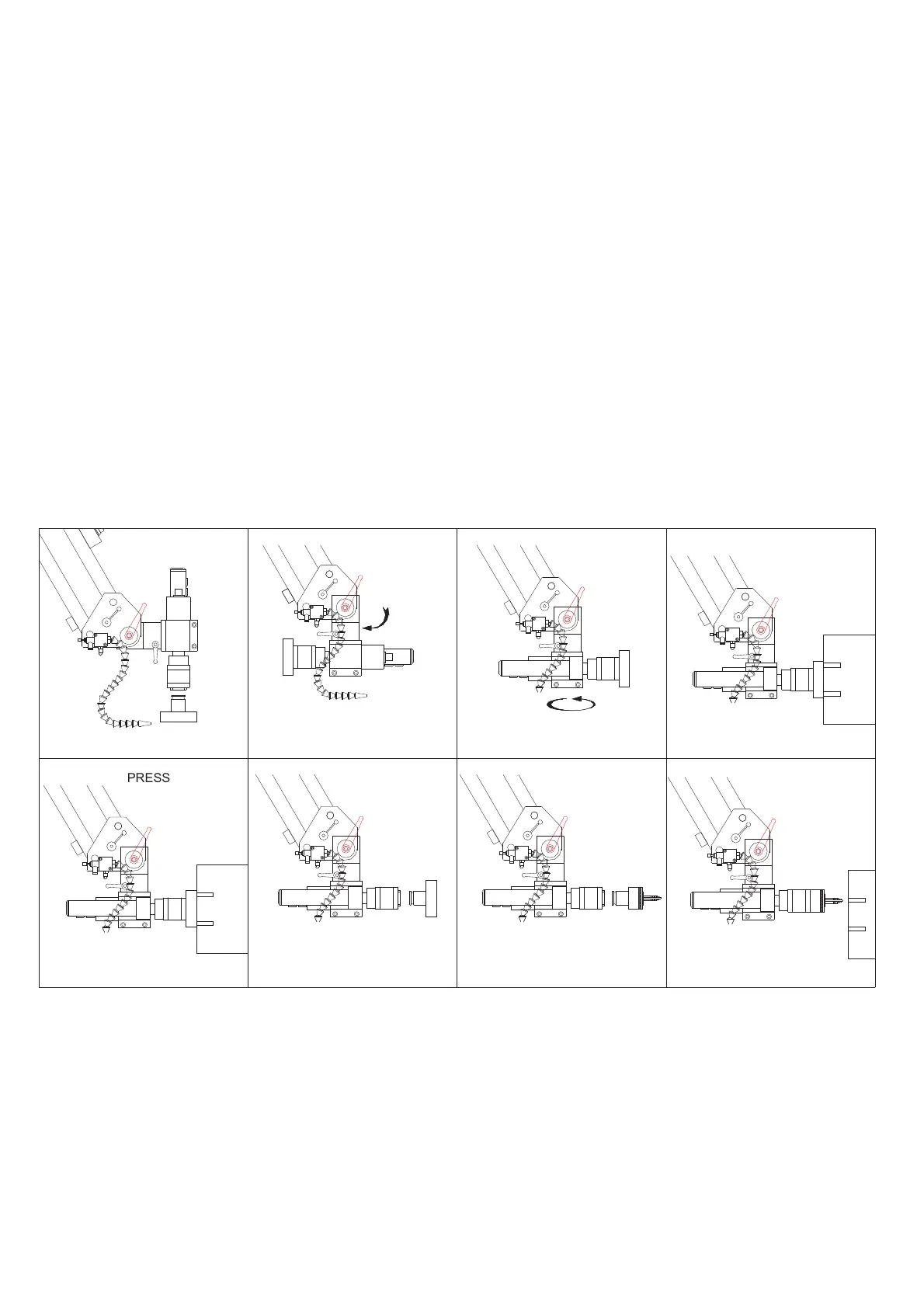

• Loosen the large lever to adjust the position of the tapping head
between vertical and horizontal tapping. Loosen the small lever to adjust
the head position from right to left.
• Before Tapping, check the small lever isn't fixed, since it must be loose for
tapping.
• When returning the head to the vertical tapping position, remember that
both levers must be secure to tap.
