FlexDSL Orion3 - Monitor and Power Specifications

FlexDSL Telecommunications AG
Steinackerstrassse 31
8902 Urdorf
Switzerland
Page 6/9
Tel: +41 44 741 52 90
Fax: +41 44 741 52 93
Email: info@flexdsl.ch
Web: www.flexdsl.ch
RS-232(V24)/RS-485 Interface

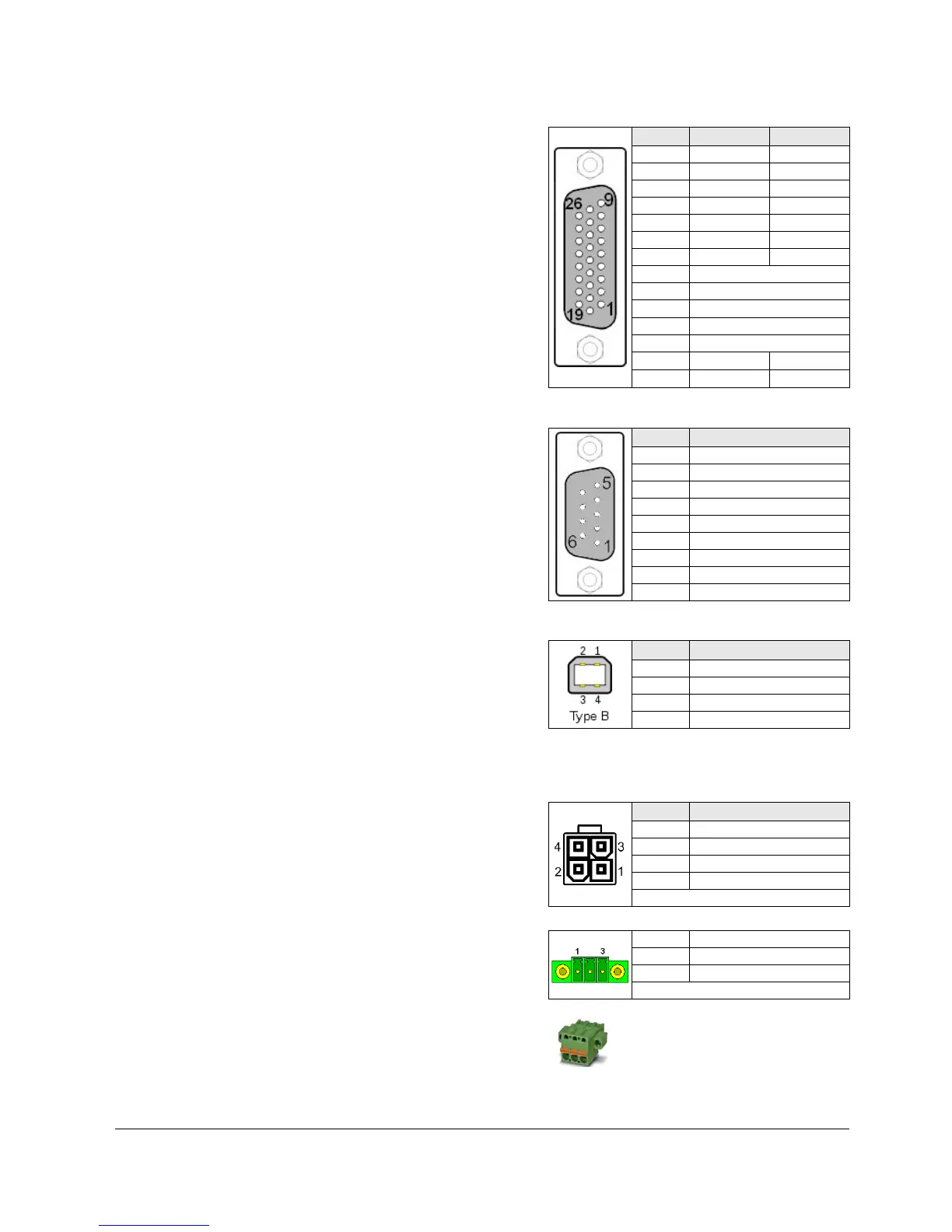

DB-26H Connector Specification
Specification
RS-232/485
Pin No
RS-232
RS-485
Data Rate
1200..256000 bps (asynchronous)
1
DTR
Format RS-232/RS-485
Bits: 5… 8
2
DSR
Stop bits: 1/1.5/2
3
CTS
Parity: odd/even/odd/mark/space
6
DCD
Connector Type
DB26 high density female
7
RXD
TXD+
Cable Connector Type
RS-232 EIA/TIA-574
8
RTS
ISO2110 (9 Pin or 25 Pin Dsub)
9
TXD
RXD+
ESD Protection
8kV (Air discharge)
11
PGND (Protection Ground)
12
PGND (Protection Ground)
13
PGND (Protection Ground)
14
SGND (Ground)
15
CC (Cable Connected)
16
TXD-
18
RXD-
Monitor/Local Craft Terminal Technical Specification
Monitor/LCT Connector Specification
Specification
EIA-232 / V.28
Pin No
Description
Data Rate
9600 baud, asynchronous
1
Urgent Alarm Output
Protocol
8 bit, no parity, 1 stop bit , no flowcontrol
2
TXD (Transmit Data)
no linefeed with carriage return
3
RXD (Receive Data)
Signal Level
V.28
4
NC (not used)
Alarm Output Spec
Load Driver
5
SGND (Ground)
Max. Switching Voltage
60VDC
6
NC (not used)
Max. Switching Current
150mA
7
NC (not used)
Connector Type
DB9 Female
8
NC (not used)
9
Not Urgent Alarm Output
Monitor/Local Craft Terminal Technical Specification
Monitor/LCT Connector Specification
Specification
USB V2.0 full and low speed
Pin No
Description
Data Rate
12Mbit/s
1
+5V
Protocol
Master/Slave, Uses the USB communication
2
Data +
device class (CDC) drivers to take advantage of
3
Data -
the installed PC RS-232 software to talk over the
4
SGND
USB
Connector Type
USB Type B Female connector
Power Supply Technical Specification
Power Supply Connector Specification
Specification
ETSI ETS 300 132-2
Pin No
Description
Voltage
38-230VDC local power, remote power
1
Negative power terminal 1
Voltage (-24V models)
18-230VDC local power, no remote power
2
Protection ground
Voltage (V84S3 model)
18-300VDC local power, no remote power
3
Negative power terminal 2
Power Consumption
Typically 4/6 Watts if 2/4 DSL pairs
4
Positive power terminal
Connector Type
Molex Mini-Fit 39-01-2040
All units except V84I, V84IS
Specification
ETSI ETS 300 132-2
1
Negative power terminal 1
Voltage (-24V models)
18-230VDC local power, no remote power
2
Protection ground
Power Consumption
Typically 6 Watts if 4 DSL pairs
3
Positive power terminal
Connector Type
Phoenix Mini Combicom MC 1,5/3-GF-3,5
only used in V84I, V84IS
Female, 3 pin
Matching Type for Cable
FK-MCP 1,5/ 3-STF-3,5
For AWG 16-28
Area 0.14–1.5 mm
2
or Diameter 0.42-1.4 mm
